SlimJim Electric Boiler - Direct Cylinder Packages

Verified by manufacturer 6 months ago

7 kW/ 120 L - EHCSJ7/120

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

SlimJim boiler and direct cylinder packages available in various outputs and cylinder sizes.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for domestic use.
  • Suitable for underfloor heating.


The ultimate electric heating experience with our diverse range of solutions! From efficient Electric Boilers, including Single-Phase & 3-phase options, and advanced Electric Central Heating Boilers, we've got your warmth covered. Experience the luxury of instant Hot Water with our Hot Water Boilers and Water Heaters, providing comfort at your fingertips. Our UK boilers are designed to meet your heating needs, ensuring a cosy home environment. Explore the innovation of Electric Combi Boilers and the versatility of cylinders for comprehensive heating solutions. Discover the power of EHC products in enhancing your Electric Heating experience. Whether you need a reliable Central Heating Boiler or a Water Boiler for domestic use, our collection offers cutting-edge technology to keep you warm and comfortable.

Description

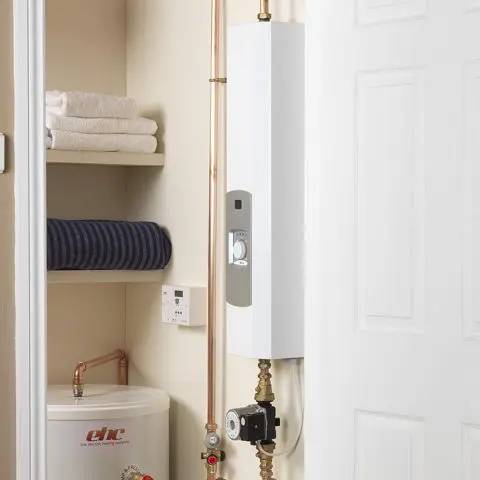

SlimJim boiler and direct cylinder packages are available in various outputs and cylinder sizes ranging from 7 kW to 14.4 kW boilers and 120 litre to 180 litre direct cylinder capacity. They have been designed to reduce installation time and eliminate unnecessary external plumbing and pipe work.


Features and benefits:

  • Ensures all heating and hot water appliances are installed using the same configuration.
  • Boiler provides central heating only and domestic hot water is provided by the direct unvented cylinder.
  • Cost effective option.
  • Choice of single-phase SlimJim boiler (7 kW, 10 kW, 12 kW or 14.4kW).
  • Choice of direct unvented stainless steel cylinder.
  • Single channel programmer.
  • Room thermostat.

SlimJim Electric Boilers

  • Outputs from 7 kW to 14.4 kW.
  • Compact design.
  • 100% efficient.
  • Virtually silent in operation.
  • Six stage heating.
  • Fully insulated stainless steel heat exchanger to minimise heat loss.
  • Volt-free control connections.
  • Integral system diagnostics.
  • Easy-fit connectors and sensors.
  • In-built fault finding diagnostics.
  • High temperature thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • Five year warranty T's & C's.

Direct Cylinder

  • ErP B-rated hot water cylinder (120 L).
  • ErP C-rated hot water cylinder (150 L to 180 L).
  • 50 mm insulation.
  • DHW expansion vessel.
  • Inlet control set.
  • T&P relief valve.
  • Two 3 kW immersion heater.


Boiler pack components:

  • 8 litre robo kit.
  • Auto air vent.
  • UPM3 Grundfos pump.
  • Two pump valves.
  • Room thermostat.
  • Single channel programmer.
  • Supreme saver hot water programmer.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Other

Length

172 mm

Width

203 mm

Height

912 mm

Warranty description

Five year

Guidance for specification option:

Boiler.

25 year

Guidance for specification option:

Direct unvented stainless steel cylinder.

Two year

Guidance for specification option:

Single channel programmer, room thermostat, 8 litre robo kit, auto air vent, high quality ErP smartpump, lockshield valves and Magnetic filter.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

S90/370 Direct hot water storage cylinders

T90/322 Boilers, electric

S90/370 Direct hot water storage cylinders

Specification data - Electric boilers

Boiler type

Electric flow.

Integral cylinder

120 L stainless steel direct unvented cylinder with two 3 kW immersion.

Output

7 kW.

Energy efficiency rating

D (heating).
B (hot water).

Mounting

Wall-mounted (boiler).
Floor standing (cylinder).

Operating pressure

0.5 bar (minimum); 3.0 bar (maximum).

Operating temperature

30℃ (minimum); 80℃ (maximum).

Heat exchanger

Stainless steel.

Electrical supply type

Single-phase.

Guidance for specification option:

240 V, 1 ph, 50 Hz.

Casing material

Stainless steel (cylinder).

Accessories

Not required.

ADEY Magnaclean and Chemical Pack.

Current

29 Amp.

Manufacturer guidance

Load/ Current.

Output

23884 Btu.

Manufacturer guidance

Heating output.

Diameter

10 mm.

Manufacturer guidance

Recommended diameter of mains cable.

Protection

40 Amp.

Ingress protection (IP) rating

IP22.

Manufacturer guidance

SlimJim boiler.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA SLIM JIM ELECTRIC FLOW BOILER

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA NEPTUNE DIRECT UNVENTED CYLINDER
