Slido F-Line 21 40C - Door accessories

Verified by manufacturer 4 months ago

Hafele UK Ltd

Sliding door mechanism.

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable for domestic and commercial use.

Description

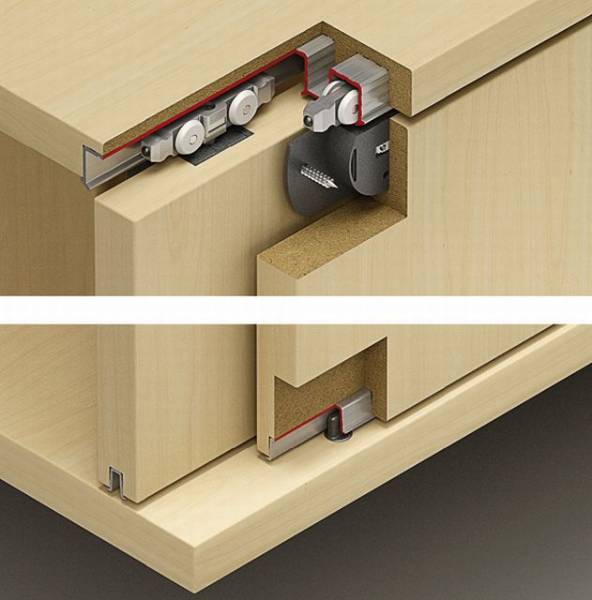

High quality system for straight sliding top hung doors, for domestic or commercial furniture.


Features and benefits:

  • Fitting sets are available with or without soft close options.
  • Door height (maximum): 2200 mm.
  • Door width (maximum): 1250 mm.
  • Door weight (maximum): 40 kg.
  • For door thicknesses: 16–19 mm.
  • Height adjustment: ±2 mm on running gear using adjustment wheel.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Length

2500 mm

3500 mm

Width

16 mm

Height

13 mm

17.5 mm

Warranty description

Seven year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Sliding Door Gear

Specification data - Door track and running gear

Product Reference

Slido Classic 40 IF C Sliding Door System

Top track

Single screw fixing 2.5 m, 402.30.642.

Single screw fixing 3.5 m, 402.30.643.

Single track groove mounted 2.5 m, 402.33.642.

Single track groove mounted 3.5 m, 402.33.643.

Double track groove mounted 2.5 m, 402.33.652.

Show more

Fitting set

With soft close, 402.33.027.

Without soft close, 402.33.026.

Manufacturer guidance

Fitting set:

  • Housing, for screw fixing, black plastic.
  • Running gear, with friction bearing, for clip fixing into housing, black plastic.
  • Running gear, with soft and self closing and friction bearing, black plastic.
  • Clip in door stopper, for top track, black plastic.
  • Door stopper, for soft and self closing mechanism, for top track, black plastic.
  • Guide, for press fitting, black plastic.
  • Stop bracket, with buffer, galvanized steel.
  • Inspection support, for use as inspection cover, grey plastic.
  • Mounting aid, for track installation, red plastic.

Bottom guide track

2.5 m, 402.30.802.

3.5 m, 402.30.803.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Literature

Häfele Slido Brochure

Häfele Slido Brochure

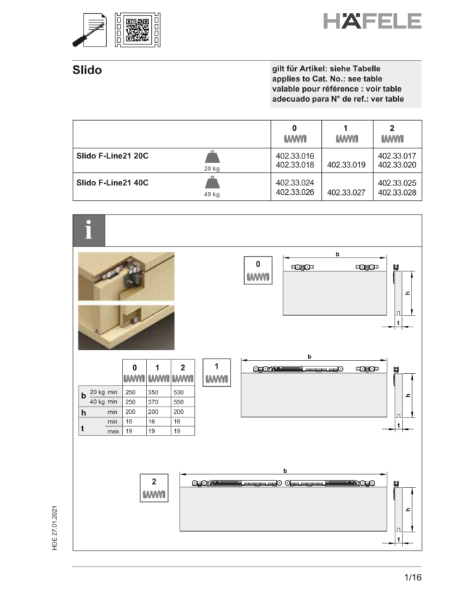

Slido F-Line21 40C Installations Instructions

Slido F-Line21 40C Installations Instructions
