Slido D-Line11 120-P Sliding System - Sliding door
Verified by manufacturer 5 months ago

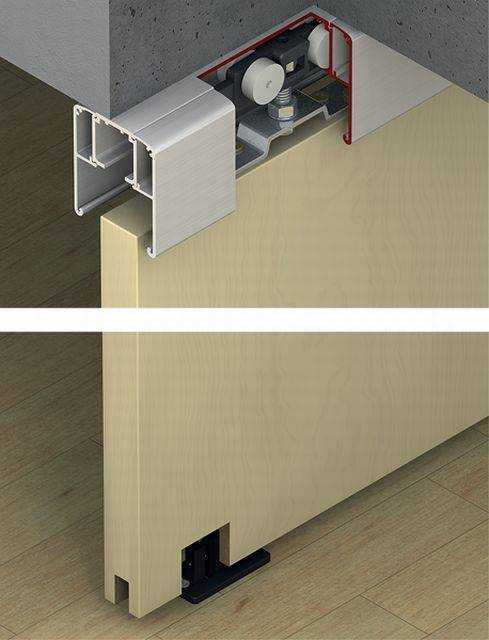

Sliding door mechanism.
Application
Smooth running quality system for commercial and residential interior doors.
Description
A sliding door system.
Features and benefits:
- Trolley hangers have four ball bearing rollers. Slido Classic 120-P is also available with soft closing mechanisms.
- For one and two leaf sliding doors.
- Door height adjustable.
- Suspension fitting with screwed on support flange.
- Tested to BS EN 1527:2013, 100 000 cycles.
General information
Color | Silver |
Finish | Anodized |
Material | Aluminium |
Length | 2000 mm 3000 mm |
Width | 31 mm |
Height | 33 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Product range |
Specification data - Door track and running gear
Classification grades (minimum) | |
Door mass | 120 kg. |
Product Reference | Slido Classic 120-P Sliding Door System, 941.02.036. Guidance for specification option: With one soft close. Slido Classic 120-P Sliding Door System, 941.02.037. Guidance for specification option: With one soft close. |
Mounting | 2.0 m side fixing bracket, 940.42.061. 2.0 m top track, 940.43.921. 3.0 m top track, 940.43.931. |
Clip panel | Not required. 2.0 m, 940.43.120. 3.0 m, 940.43.130. |
Accessories | None. Slido Classic synchro additional set, 940.44.000. Guidance for specification option: Slido Classic synchro additional set:
Can only be used in combination with standard system consisting of two sets for one leaf sliding doors (Classic 60-P/ 120-P) and running track. Not suitable for versions with soft close. Slido Classic synchro additional set:
|
Fittings | Manufacturer's standard. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Yes |
Literature
Häfele Slido Brochure
