Slido D-Line 43 80M - Door accessories

Verified by manufacturer 5 months ago

Hafele UK Ltd

Hidden track door gear for wall-mounted wooden doors.

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable for residential or commercial applications such as offices, meeting rooms or hotels.

Description

Sliding door gear for wall-mounted wooden doors.


Features and benefits:

  • All tracks and fixings are hidden which enables doors to slide across openings as if they were floating.
  • The top track can be recessed into the door for a wall-to-door clearance of 12–22 mm, or face fixed with a clearance of 32 mm for skirting boards.
  • The bottom rollers need to run on a solid floor, a running strip must be provided for carpet.
  • Includes soft closing mechanism.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Length

1100 mm

1800 mm

Height

60 mm

Warranty description

Ten year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Sliding Door Gear

Specification data - Door track and running gear

Integral accessories

Rail.

Top running gear - wall mounted.

Soft-close with plastic housing.

Guide channel - grey plastic.

Guide.

Bottom roller with grey plastic housing.

End caps - one pair black, one pair silver coloured.

Product Reference

Slido D-Line 43 80M

Configuration

940.59.008.

Guidance for specification option:

For doors to 1100 mm wide.

940.59.009.

Guidance for specification option:

For doors to 1800 mm wide.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Yes

Literature

Häfele Slido Brochure

Häfele Slido Brochure

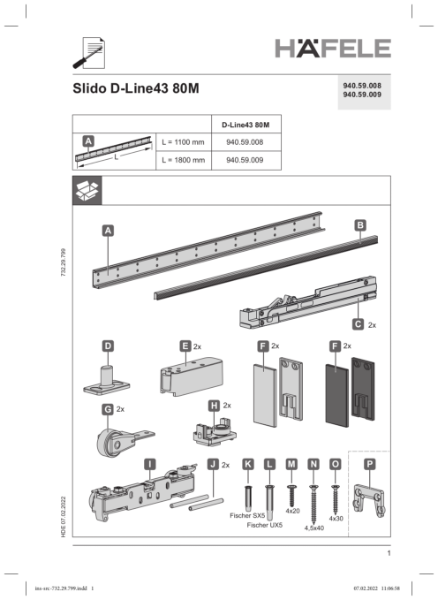

Slido D-Line43 80M

Slido D-Line43 80M
