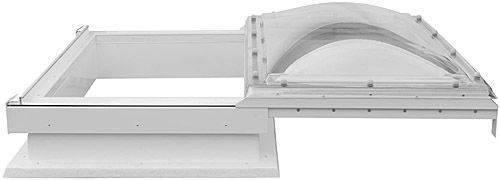

Sliding Single Leaf Vent/ Skylight
Description

A single leaf smoke vent/ skylight, providing 1 m² clear vent area.

General information

Uniclass 2015

Pr_30_59_36_74 Roof hatchesPrimary

CAWS

H67/365 Roof hatches

Specification data - Roof hatches

Product Reference

Sliding Single Leaf Vent/ Skylight

Type

SKY-1M

Internal: 1000 x 1500 mm; overall: 1300 x 1800 mm. Weight: 170 kg.

SKY-SS

Insert size requirements.

Standard product features

Performance:

  • Tested for impact resistance to EN 1873 – Class SB1200.
  • U-value: 1.02 W/m²K.

Cover:

Double-layer thermoformed polycarbonate dome assembled on a fully welded PVC frame, in which a double-layer security glass (classified 2(B)2 according to EN 12600) is inserted. Cover has an extruded EPDM rubber gasket to ensure a continuous seal when compressed in the front and in the back of the vent.

Curb:

250 mm in height and of double-layer (internal and external) polyester resin reinforced with fibreglass. The curb is formed with a 150 mm flange with 9 mm holes provided for securing to the roof deck.

Curb insulation:

Extruded polyurethane of 60 mm thickness.

Operating mechanism:

A single rotating actuator mounted on a sliding carriage capable of opening the cover to the fire open position of 180°.

Finishes:

  • Polycarbonate: Clear.
  • Glass: Clear.
  • PVC profiles: White.
  • Metal profiles: White powder coating.
  • Upstand: White.
