Verified by manufacturer 1 month ago

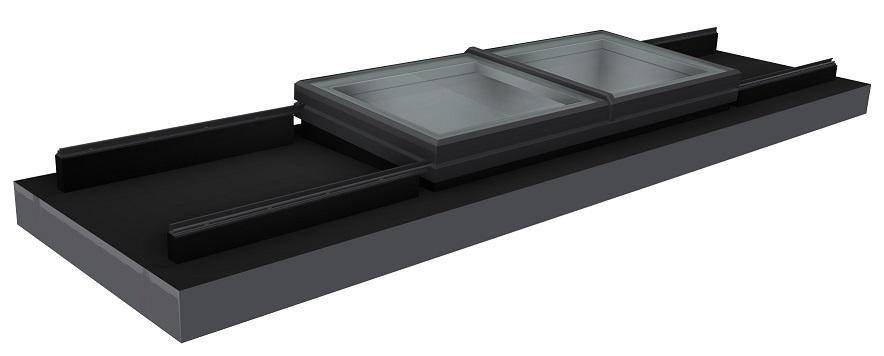

A bi-parting slide-over rooflight giving 100% opening.
Suitable for use in:
A bi-parting slide-over rooflight.
Features and benefits:
Color | White Grey Other Manufacturer guidanceAs per manufacturer and includes:
|
Finish | Powder-coated Manufacturer guidanceAs per manufacturer and includes polyester powder coated. |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceMaximum (external width) in the sliding direction. |
Height | 4000 mm Manufacturer guidanceMaximum (external span) down the fall. |
Warranty description | One year |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Form | Rectangular. |
Size | 7000 x 4000 mm.Guidance for specification option: Maximum (external width) in the sliding direction x maximum (external span) down the fall. These are external kerb sizes. Internal finished sizes; minus 300 mm from above width and height dimensions. Manufacturer guidanceWide range of sizes available. Non-standard sizes are available on request; consult manufacturer for more information. |
Frame | |
Material | Extruded aluminium.Guidance for specification option: 6063-T6. |
Finish | |
Coating | Polyester powder coated. |
Colour | Anodized.External RAL 7015 Mat.Internal RAL 9010 Mat.Grey.White.Other.Manufacturer guidanceAny RAL or BS colour can be specified; consult manufacturer for more information. |
Film thickness (minimum) | 60 micrometres. |
Glazing or infill | |
Type | Not required.Toughened and laminate glass.Guidance for specification option:
Manufacturer guidanceEnhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information. |
Operation | |
Control | Access keypad, rain sensor, temperature sensor. |
Accessories | Not required.Upstand by Vision AGI.Guidance for specification option: To suit an overall finished upstand of 150 mm. |
Thermal break | Required. |
Fixings | Stainless steel. Manufacturer guidanceConcealed fixings. |
U-value | 1.1 W/m²K. Manufacturer guidanceGlass centre pane U-value. |
Spacer | Warm edge spacer; 18 mm; 90% argon cavity. |
Seals | Structural and weather seal – Low modulus silicone sealant. PVC coated – UV and water resistant. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Glass & aluminum widely recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
