Sliding Panels Blinds - Panel Blinds

Verified by manufacturer 3 days ago

Zen Track

Bandalux Industrial SA Variant:
Third party certifications:

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

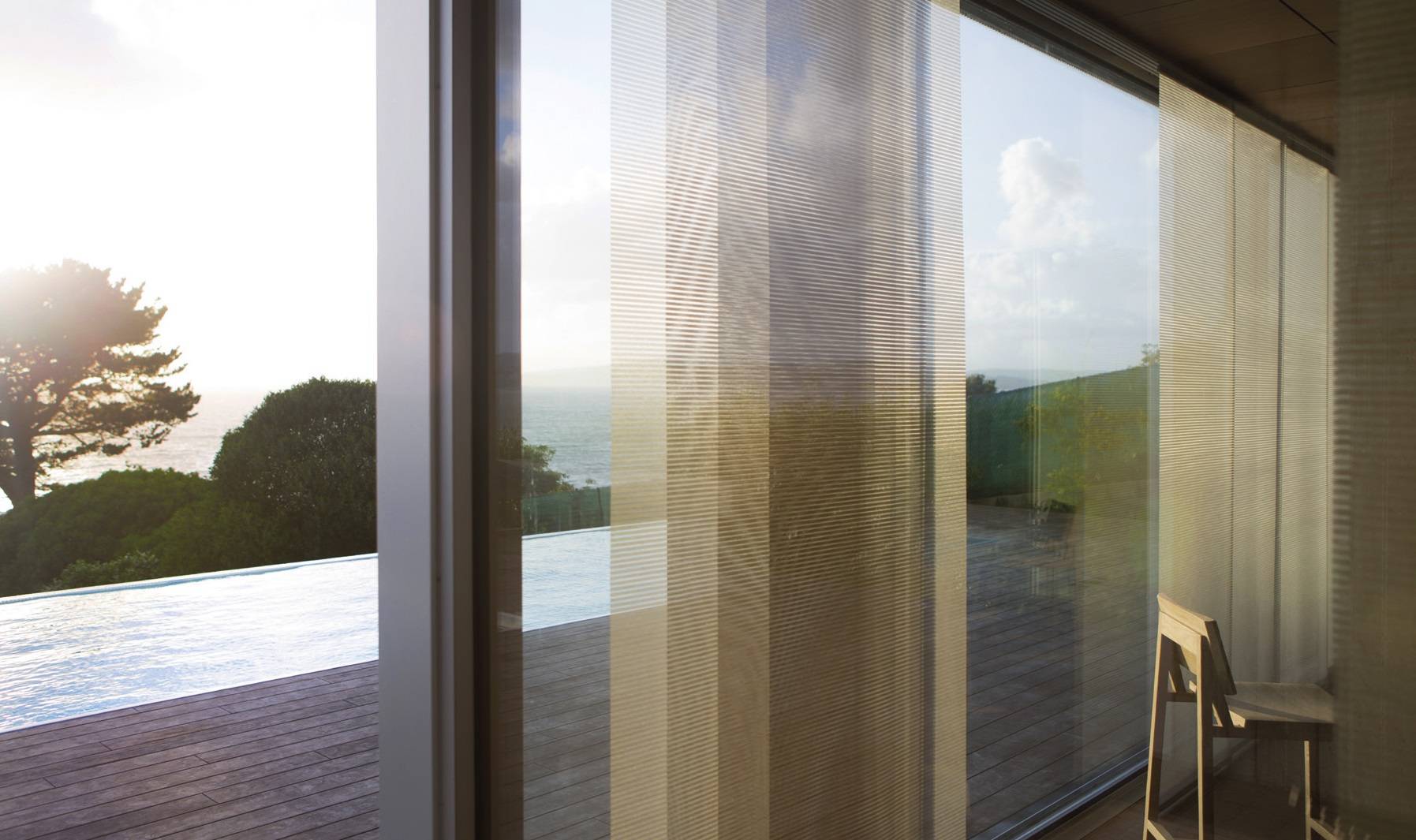

Sun protection for large windows with different retraction options.

Jump to:
+(34) 938 615 179 Website

Application

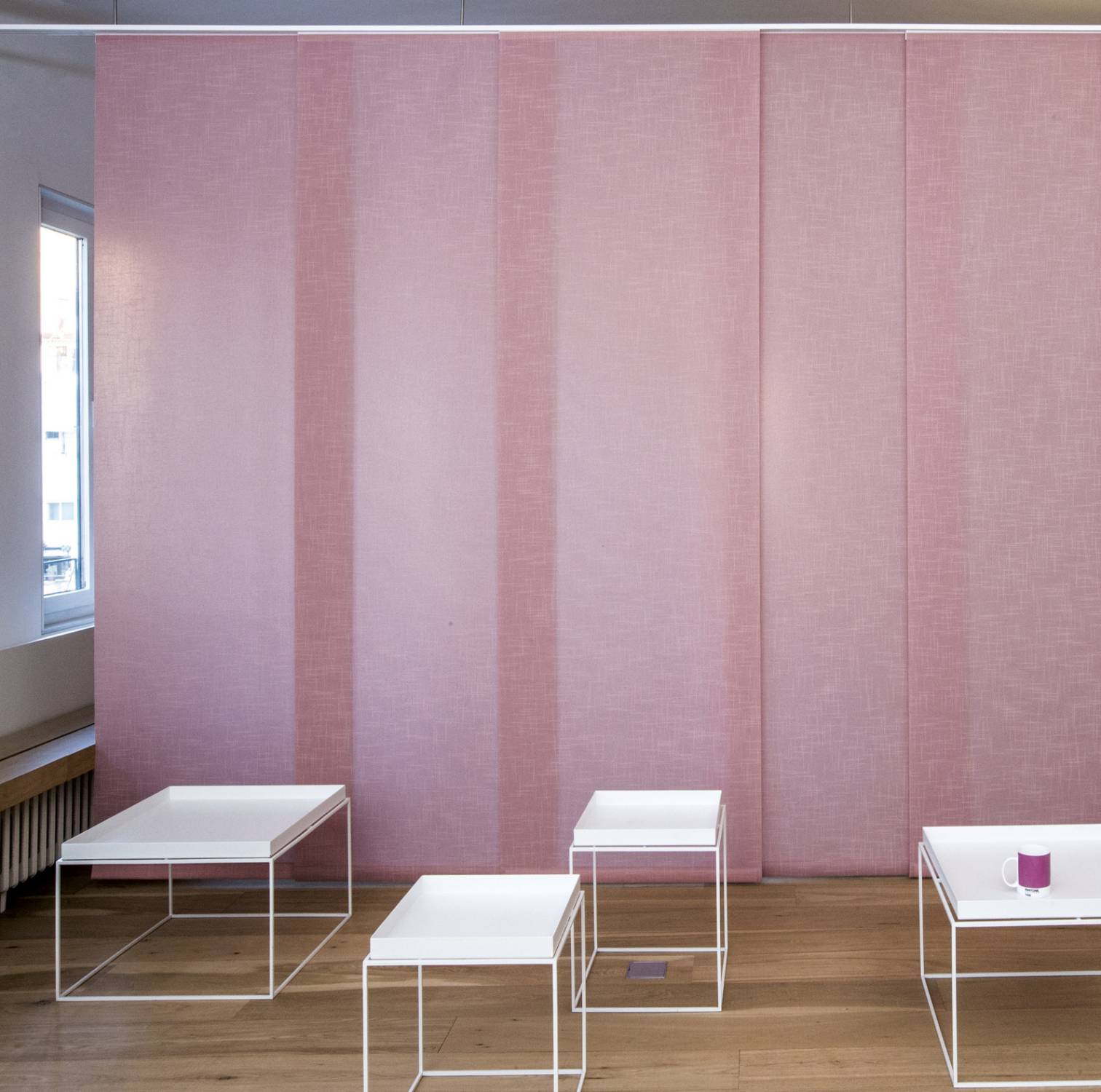

For indoor use as sun protection and room separation.

Description

The sliding panels are made up of overlapping cloths that prevent gaps where light could filter in; and therefore ensure sun protection on large windows. They are highly functional solutions that afford the separation of multi-purpose rooms into different environments or to decorate shop windows.


these panels are highly decorative systems that enable the combination of different available colours and prints of the fabric, or use others through a digitally printing technique.


Features and benefits:

  • Easy sliding - Slides on acetal (POM) wheels that ensure smooth, silent movement.
  • Different retraction options.
  • Can be matched with a wide range of fabrics and colours.
  • Operation systems: manual, cord, wand or motor.
  • A wide selection of traditional and technical fabrics.
  • Optional trazer decorative cover.
  • Child safety.
  • Three year warranty.
  • CE marked.

General information

Color

Black

White

Other

Finish

Anodized

Matt

Material

Fabric

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

6000 mm

Guidance for specification option:

Maximum width.

Height

Bespoke

3250 mm

Guidance for specification option:

Maximum height.

Warranty description

Three year

Uniclass

Pr_30_59_07_60 Panel blindsPrimary

CAWS

N10/240 Blinds

N10/70 Blinds

Specification data - Panel blinds

Standard

To BS EN 13120.

Position

Indoor, ceiling.

Indoor, wall.

Dimensions (width x height)

800 x 500 mm.

Guidance for specification option:

Maximum size (W x H): 6000 x 3250 mm.

Manufacturer guidance

Minimum width x height.

(Approximate measurements - may vary depending on the fabric and system).

Track arrangement

Two-channel.

Three-channel.

Four-channel.

Five-channel.

Panels

-

Width

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Fabric

-

Manufacturer guidance

Consult manufacturer's literature for details and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Operation

Manual, hand-operated.

Cord operated.

Wand, 100 cm.

Guidance for specification option:

Available in white, grey or black. Insert requirement.

Wand, 150 cm.

Guidance for specification option:

Available in white, grey or black. Insert requirement.

Wand, 200 cm.

Guidance for specification option:

Available in white, grey or black. Insert requirement.

Motor.

Guidance for specification option:

Zen XXL track. Consult manufacturer for details.

Stacking arrangement

Left.

Guidance for specification option:

RI.

Right.

Guidance for specification option:

RD.

Centre spilt.

Guidance for specification option:

RAL.

Right/ left with two handles.

Guidance for specification option:

RDI.

Mechanism endurance

To BS EN 13120, class 3.

Accessories

Child safety.

Guidance for specification option:

  • Standard security device - served by default.
  • In compliance with European standard EN 13120.

SafeKids.

Guidance for specification option:

  • Highly efficient security device that ensures the attachment of the cord or the chain to the wall.
  • Available colours: white, brown, grey, black, ivory and white textured. Insert requirements.

Trazer pelmet 73.

Guidance for specification option:

  • Incompatible with the motorized Zen XXL track.
  • Available colours: textured matte and anodized aluminium.
  • Insert requirement.

Trazer pelmet 100.

Guidance for specification option:

  • Incompatible with the motorized Zen XXL track.
  • Available colours: textured matte and anodized aluminium.
  • Insert requirement.

Reinforced extensible trazer brackets, 100.

Guidance for specification option:

  • Available colours: white, RAL 9010, anodized aluminium and matte black, RAL 9011.
  • Insert requirements.

Reinforced extensible trazer brackets, 130.

Guidance for specification option:

  • Available colours: white, RAL 9010, anodized aluminium and matte black, RAL 9011.
  • Insert requirements.

Reinforced extensible trazer brackets, 160.

Guidance for specification option:

  • Available colours: white, RAL 9010, anodized aluminium and matte black, RAL 9011.
  • Insert requirements.

Trazer pelmet, projection.

Trazer pelmet, mount plate.

Track connector plate 2 tracks.

Track connector plate 3, 4 and 5 tracks.

Manufacturer guidance

Consult manufacturer's literature for details.

Bottom bar

Concealed.

Visible, Slim 25 bottom bar.

Guidance for specification option:

  • Material: Extruded aluminium.
  • Available colours: white, brown, grey, black, ivory and white textured. Insert requirements.

Track colour

White, RAL 9010.

Anodized aluminium.

Matte Black, RAL 9011.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Recyclability

Yes, Aluminum and Fabrics

Guidance for specification option:

Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Bandalux’s extruded aluminum profiles and tubes have 95% recycled content.

Bandalux’s laminated aluminum has between 45% and 65% recycled content.

90% or our contract fabrics collection has 2% up to 100% recycled content.

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015

QA Certificate

Company, Systems, Fabrics and Motors Certificates and Warranties

Literature

Sliding Panels Blinds

Sliding Panels Blinds
