Sliding Gate Automation
Application

Suitable both for residential properties and industrial door/ gate systems.

Description

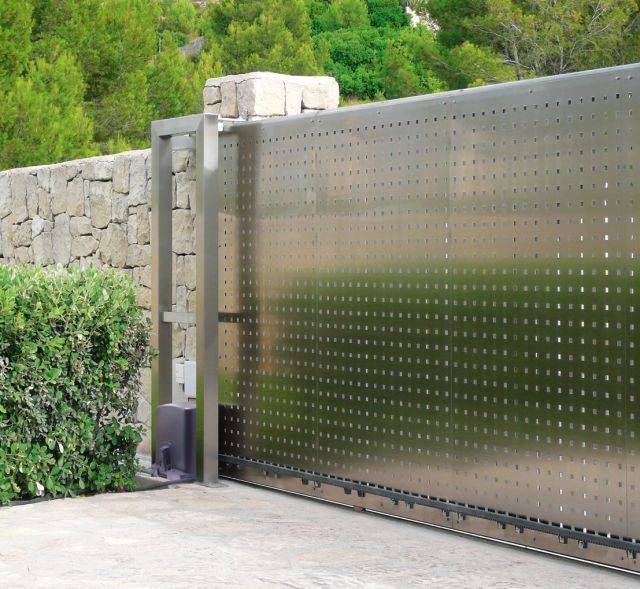

Sliding gate operators which open the gate gently, smoothly and reliably, even at temperatures down to -30°C. In addition, they offer a high level of security. They are compliant with International standards and are tested by independent institutes. There are numerous connection options available for more security and additional features for added convenience. Available with a travel length of up to 20 m and a gate weight of 1200 kg.

The operator is self-learning, and runs economically due to the DPS (Dynamic Power System). It adapts to the environment and always moves at the same speed. For the operator, obstacles mean that it suddenly needs more force. In this case, it stops or reverses. This prevents injury and damage to property. SOMMER also offers additional safety accessories, including photo eyes, safety contact strips, etc.

Available in various configurations:

DS 600/ DS 1200:

The DS 600/ DS 1200 sliding gate operator has high strength. It is used for particularly heavy sliding gates.

RUNner:

Fulfils the high requirements of industrial gate systems. Like the STArter, it is sturdy, resilient, corrosion-resistant, safe, reliable and operation is quiet.

RUNner+:

As RUNner but with added 'chip tuning', giving the operator even more power and higher speed.

SM 40 T:

Powerful gate operator which can be used anywhere and is particularly quick and easy to install.

SP 900:

The complete operator of the SP 900 is integrated into the post of the sliding gate. This makes the operator invisible and provides for an uncluttered appearance. The SP 900 is flexible, rugged and suitable for industrial door systems.

STArter:

The compact operator has easy installation, high quality, reliable operation and a large selection of additional safety devices.

STArter+:

As STArter but with added 'chip tuning', giving the operator even more power and higher speed.

Applications:

Suitable both for residential properties and industrial door/ gate systems.

General information

Uniclass 2015

Pr_75_30_23_42 Hydraulic automation mechanismsPrimary

CAWS

Q40/635 Gate openers

Specification data - Hydraulic automation mechanisms

Product Reference

DS 600 / DS 1200

Maximum travel length: 20 m, maximum gate weight: 1200 kg.

RUNner

Maximum travel length: 8 m, maximum gate weight: 600 kg.

RUNner Set

Includes rack and transmitter, maximum travel length: 8 m, maximum gate weight: 600 kg.

RUNner+

Maximum travel length: 12 m, maximum gate weight: 800 kg.

RUNner+ Set

Includes rack and transmitter, maximum travel length: 12 m, maximum gate weight: 800 kg.

SM 40 T

Includes rack and transmitter, maximum travel length: 12 m, maximum gate weight: 600 kg.

SP 900, 1.5 mm post

Maximum travel length: 8 m, maximum gate weight: 400 kg.

SP 900, 2.1 mm post

Maximum travel length: 8 m, maximum gate weight: 400 kg.

STArter

Maximum travel length: 6 m, maximum gate weight: 300 kg.

STArter Set

Includes rack and transmitter, maximum travel length: 6 m, maximum gate weight: 300 kg.

STArter+

Maximum travel length: 8 m, maximum gate weight: 400 kg.

STArter+ Set

Includes rack and transmitter, maximum travel length: 8 m, maximum gate weight: 400 kg.

Radio system

Somloq Rollingcode

Standard.

SOMloq2

Being introduced as new standard and easily upgradeable on Somloq operators.

Accessories

None

Access systems

ENTRApin+ keypad or ENTRAsys FD / GD fingerprint scanner or key switch.

Activation

Induction loop or motion detection (PIR) options.

Battery pack

Supplies energy to the gate operator for up to 12 hours.

Edge protection

Both passive and active edge systems.

Electric lock

Light barrier

One-way and two-way photocells.

Radial Damper

For regulating speed on inclined gates.

Rack

Steel core or galvanised toothed rack for fitment to gates.

Warning light

Rotating beacon, LED warning lights or traffic light control.

Special order

Insert requirements, consult manufacturer for information.

Standard product features

Opening speed (maximum):

  • DS 600/ DS 1200: 220 mm/s.
  • RUNner: 210 mm/s.
  • RUNner+: 190 mm/s.
  • SP 900: 285 mm/s.
  • STArter and SM 40 T: 170 mm/s.
  • STArter+: 240 mm/s.

Technical characteristics:

  • Temperature range: RUNner and RUNner+: -30 to +50°C; SM 40 T -20 to +70°C; SP 900: -20 to +60°C; DS 600/ DS 1200 and STArter and STArter+: -20 to +50°C.
  • Power supply: DS 600/ DS 1200: 400 V AC; RUNner, RUNner+, SM 40 T, SP 900, STArter and STArter+: 220/ 240 V AC.
  • Torque (maximum): RUNner: 20 Nm; RUNner+: 28 Nm; SP 900: 10 Nm; STArter and STArter+: 11 Nm.
  • Thrust power: 640 N (SM 40 T).
  • Rated frequency: 50/ 60 Hz.
  • Protection class: RUNner, RUNner+, STArter and STArter+: IP54; DS 600/ DS 1200, SM 40 T and SP 900: IP44.

Product Options

Product reference:

- DS 600/ DS 1200:

  • Suitable for heavy gates, particularly if used on commercial sites.
  • Reliable and robust operator with high-performance geared motor.
  • Control with numerous additional features, e.g. dead man operation.
  • Maintenance-free operator with long service life.
  • Easily accessible emergency release.
  • Optional safety facilities can be integrated, e.g. warning light, light barrier or electric lock.

- RUNner/ RUNner+:

  • Fully automatic force memory assures a high level of security.
  • Automatic recognition of safety edges and light barriers.
  • Chip tuning available for even more power and higher speed.
  • 24 V technology.
  • Can be configured for automatic closing and partial opening.
  • Tooth rack available: Plastic bonded steel rack ensures low-noise and maximum-stability gate motion.
  • Energy-saving toroidal transformer.
  • Connection option for battery pack (in the event of power failure).
  • Gate opening direction can be set with selection switch.
  • Improved accident prevention by means of electronically regulated force measurement with Dynamic Power System (DPS).
  • Rust-proof housing made from aluminium and fibre-glass reinforced, weather-resistant plastic.
  • Maintenance-free operator with long service life.
  • Easily accessible emergency release.
  • Optional safety facilities can be integrated, e.g. warning light, light barrier.

- SM 40 T:

  • Reliable and robust operator with oil bath geared motor.
  • Control with numerous additional features, e.g. partial opening.
  • Maintenance-free operator with long service life.
  • Easily accessible emergency release.
  • Additional connection options, e.g. for emergency stop, warning light, light barrier and safety edges (only available with external evaluation unit).

- SP 900:

  • Speed (285 mm/s maximum) and additional parameters can be adapted automatically to the gate sizes and gate weight.
  • Integrated electric lock ensures effective self-locking and break-in protection.
  • Suitable for gates with an inclination of up to 3.5.
  • Can be configured for automatic closing.
  • Improved accident prevention by means of electronically regulated force measurement with DPS.
  • Energy-saving toroidal transformer, good for the environment and your wallet.
  • Connection option for battery pack (in the event of power failure).
  • Rigid construction thanks to real box profile; also ideal for high gate wings.
  • Optional safety facilities can be integrated, e.g. warning light, light barrier.

- STArter/ STArter+:

  • Fully automatic force memory assures a high level of security.
  • Chip tuning available for even more power and higher speed.
  • 24 V technology.
  • Can be configured for automatic closing and partial opening.
  • Tooth rack available: Plastic bonded steel rack ensures low-noise and maximum-stability gate motion.
  • Improved accident prevention by means of electronically regulated force measurement with DPS.
  • Rust-proof housing made from aluminium and fibre-glass reinforced, weather-resistant plastic.
  • Maintenance-free operator with long service life.
  • Easily accessible emergency release.
  • Optional safety facilities can be integrated effortlessly, e.g. warning light, light barrier.

Radio control system:

- Somloq Rollingcode:

  • Protected against code scanning, preventing misuse by non-authorised persons.
  • The procedure of frequency modulation (FM) used is less susceptible to malfunctions and increases transmission security.
  • The receiver is able to differentiate the radio signal of its 'own' transmitter from other radio signals and securely receive it.
  • HomeLink® compatible.

- SOMloq2:

  • Offers maximum protection against hackers due to 128-bit AES encryption with Rollingcode.
  • The auto-repeat function ensures convenient opening while approaching the building. The output radio signal repeats in a certain cycle to enable optimal availability.
  • With the innovative hop function, the range is extended, as radio signals are forwarded from SOMloq2 receivers.
  • Transmitters with SOMloq2 are backward compatible with the Somloq Rollingcode radio control system, making it possible to control existing operators and radio receivers.
  • HomeLink® compatible.
