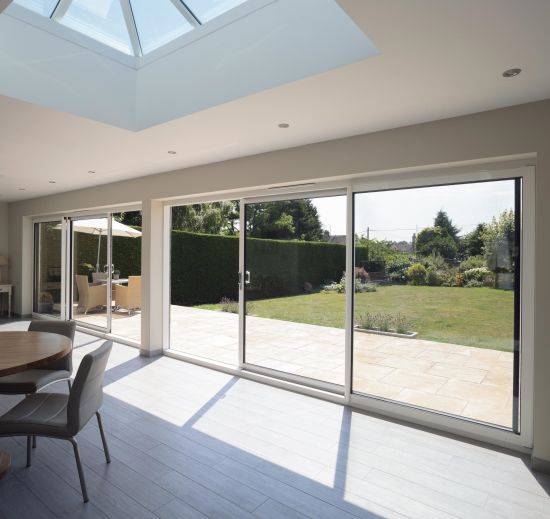

Aluminium sliding patio door with slimline profiles and minimal sightlines.
Residential applications for both new build homes and refurbishment projects. Slide 2000 is also suitable for use as horizontal sliding windows for light commercial use such as external serving hatches in restaurants. Sliding windows are also ideal for applications where increased ventilation is required. The window offers a solution where applications, such as schools and hospitals, require an open sash that does not project creating an obstruction.
Sliding patio door with slimline profiles and minimal sightlines, coupled with modern thermal break technology that provides both enhanced thermal performance and the option of dual colour profiles in a wide choice of colour finishes.
Slide 2000 uses a selection of mitred outer frames featuring a dual or triple track option allowing the choice of two, three or four pane doors. Two pane doors can have either dual sliding sashes or a fixed pane and one sliding opening sash configuration. If fitted with a triple track threshold, all three sliding sashes can be configured to slide to one side which gives a 2⁄3 opening aperture.
The sliding door sets are fitted with multi-point locking and a one-piece lock keep that offers enhanced security and ease of fabrication. Smaller horizontal sliding windows can also be fitted with single point locking mechanisms.
Fabrication of the outer frame is by method of mechanical cleats with Smart punch tooling providing rapid and accurate fabrication. Slide 2000 doors will accept 24 mm, 28 mm or 32 mm double or triple glazed sealed units. Glass units are secured using a wrap-around gasket with the sash profiles assembled around the sealed unit.
Features and benefits:
Applications:
Residential applications for both new build homes and refurbishment projects. Slide 2000 is also suitable for use as horizontal sliding windows for light commercial use such as external serving hatches in restaurants. Sliding windows are also ideal for applications where increased ventilation is required. The window offers a solution where applications, such as schools and hospitals, require an open sash that does not project creating an obstruction.
Material | Aluminium |
Uniclass 2015 | |
CAWS | L20/280 Doors L20/45 Doors L20/520 Sliding doors |
Product Reference | Slide 2000 Patio Doors |
Performance | Up to 1.6 W/m²K U-value |
Arrangement | Sliding top hung |
Door leaves | - |
Construction | Manufacturer's standard |
Finish and colour | Powder coated, insert single or dual colour requirement, contact manufacturer for information. |
Operation | Manual |
Hardware | Insert requirement, contact manufacturer for information. |
Accessories | Insert requirement, contact manufacturer for information. |
Size | As drawingInsert reference. As scheduleInsert reference. |
Configuration | Four paneThree paneTwo pane |
Glazing | Insert requirement, available 24–32 mm as double or triple glazed units. |
Locking | Multi-point lockFor sliding door. Single point lockFor horizontal sliding window. |
Standard product features | Material: Aluminium. Maximum sash weight: 200 kg. Thermal break: Polyamide thermal break. Gaskets: Wrap-around gaskets. Air permeability: 600 Pa. Watertightness: 250 Pa. Resistance to wind load: 1200 Pa. |
Product Options | Doorset size: Sash available up to 2100 mm in height, there is no maximum width. |
