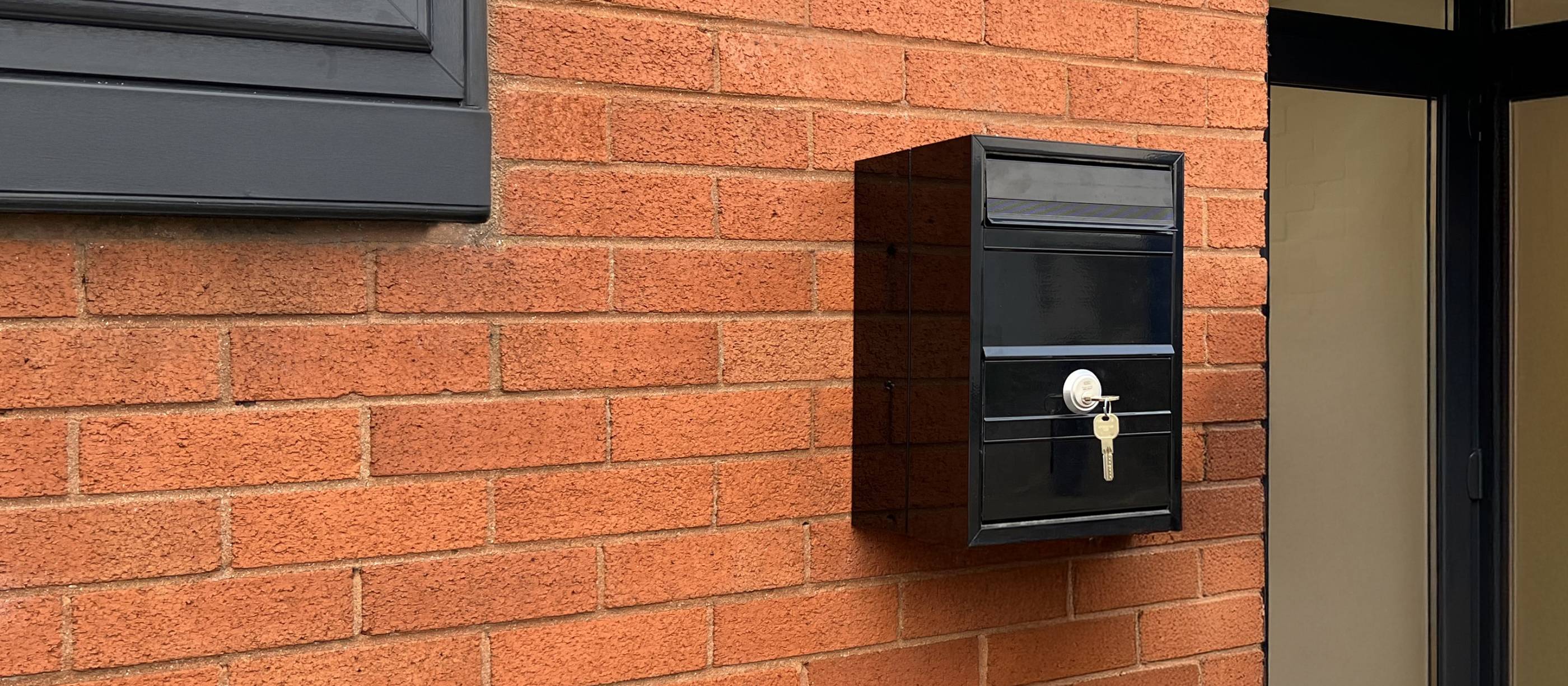

SLB SBD COM 1 TS009 Vertical Mailbox

Verified by manufacturer 22 hours ago

The Safety Letterbox Company Product certifications:
  • Secured By Design

    Secured By Design

    Certificate type

The TS009 mailbox is an example of a product developed to suit requirements, with compliance to the standard; Secured by Design certification.

Jump to:
BOS
+44 (0)1639 633525 Website

Application

  • Suitable for both domestic and commercial use.
  • Suitable for both internal and external use.
  • Used as a standalone single item or bankable up to 4 high.
  • Suitable for wall mounting or wall recessed.

Description

The COM 1 TS009 mailbox is an example of a product developed to suit requirements, with compliance to the standard.

Features and benefits:

  • A Certified TS009 Mailbox - Secured By Design
  • Robust UNION keyPRIME™ three point locking mechanism certified to BS EN 1303:2015, supplied with two keys as standard.
  • Robust product materials ensuring it will remain in great condition for many years if maintained properly (maintenance guide available on request).

The COM 1 TS009 mailbox achieves all of the following:

  • Complies with TS 009:2019 standards.
  • Secured by Design certified.
  • Meets Class 0 (BS 476: Part 6&7).
  • BS EN 13734 Compliant.
  • Lighter in weight.
  • More attractive in aesthetic quality.
  • Maximum security through design and detail.

General information

Color

Beige

Black

Bronze

Blue

Copper

Show more

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated.

Material

Aluminium

Shape

Rectangle

Length

240 mm

Width

265 mm

Height

403 mm

Warranty description

One year

Uniclass

Pr_40_30_50_46 Letter boxesPrimary
Pr_40_30_87_48 Lockers

CAWS

N10/400 Mailboxes

N10/96 Mailboxes

Specification data - Letter boxes

Classification data

Standard

To BS EN 13724.

Classification grades (minimum)

-

Type of aperture

Manufacturer's standard.

Aperture size

235 x 32.5 mm.

Guidance for specification option:

W x H. Including Anti Fishing Devises.

Corrosion resistance

Manufacturer's standard.

Security

Secured by Design (SBD) TS009:2019.

Fire resistance

To BS 476: part 6 and 7, Class 0.

Form

Vertical mailbox.

Size

403 x 265 x 240 mm.

Guidance for specification option:

H x W x D

Materials

Aluminium.

Guidance for specification option:

Aluminium extrusion and aluminium sheet.

Colour and finish

Polyester powder coated.

Guidance for specification option:

Choice of colours from the standard range of colours which meet the London Underground surface spread of flame

specification BS476 Part 6 & 7.

Integral accessories

None.
Signage, engraving.

Guidance for specification option:

Insert requirements (font, text, placement etc.).

Signage, vinyl lettering.

Guidance for specification option:

Insert requirements (font, text, placement etc.).

Security hardware

UNION keyPRIME™ - three point locking mechanism certified to EN 1303:2015.

Installation

Wall mounted.
Wall recessed.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

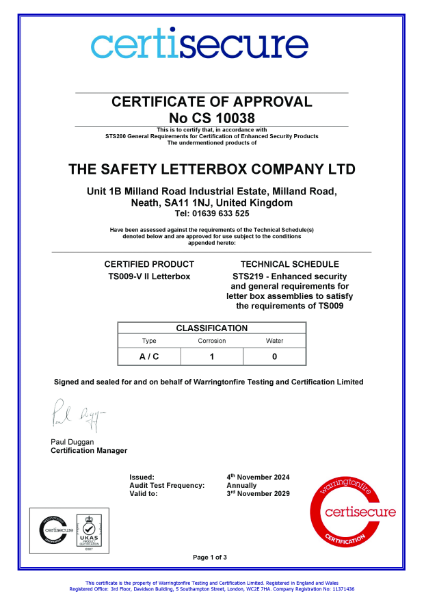

Product certifications

Secured By Design

Secured By Design

CERTISECURE

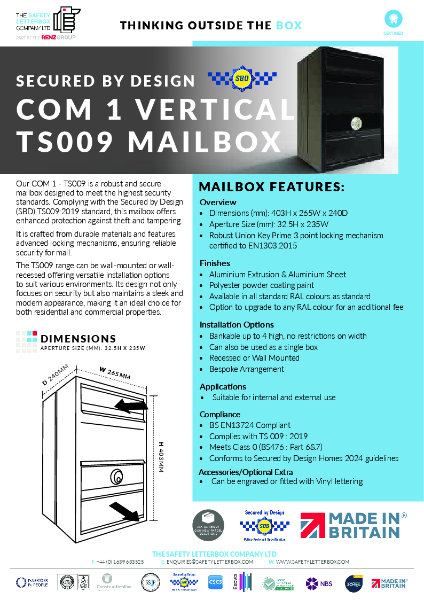

Literature

COM 1 TS009 Vertical Mailbox

COM 1 TS009 Vertical Mailbox
