SL3-SV16

Application

Connecting thick to thin steel sheets.

Description

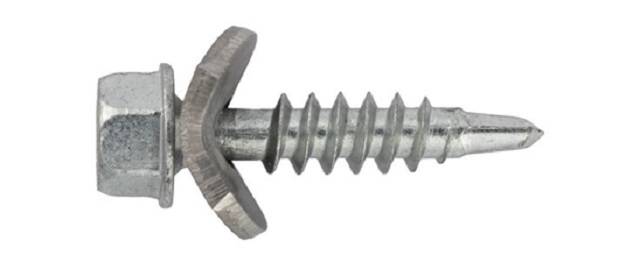

A4 1.4401 (316) grade austenitic stainless steel self-drilling clamping fastener with 6 mm diameter threads. The head form comes in the industry standard 8 mm hexagon head. Applicable to thick to thin metal applications.

Under the head is a free spin zone, which enables the components to be clamped tightly together to prevent over torqueing. These features combine with the washer element to give secure clamping in the thinner substrate.


Features and benefits:

The clamping fastener has a spin free zone combined with patented V shape washer for secure joining of materials.


Approvals:

  • ETA approved (ETA number 10-0198).
  • CE marked.
  • Approved with the following system suppliers: Eurobond Rainspan, Tata Steel, Kalzip, Bemo, Euroclad, Hemsec.

General information

Color

Silver

Other

Powder coated to suit project.

Finish

Powder coated

Mill

Material

Stainless steel

Size

6 mm

WarrantyDescription

40 year

Up to 40 years - consult manufacturer.

Uniclass 2015

Pr_20_29_14_84 Standing seam fixed clipsPrimary

CAWS

H20/150 Sheet cladding

H31/160 Profiled plastics sheet

H92/120 Rainscreen cladding

Specification data - Standing seam fixed clips Enhanced data

Material

Stainless Steel A4.

Dimensions

-

Width (minimum)

6 mm.

Base length (minimum)

27 mm.

Product Reference

SL3-SV16

Washer

Stainless steel V washer.

Head type

8 mm hex head.

Third party certifications

  • European Technical Approval: ETA -10/0198
