Description

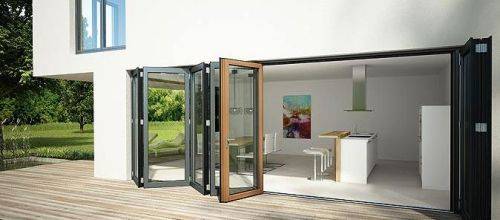

A composite wood/ aluminium system consisting of top hung or bottom running sliding/ folding panels. Panels are constructed from triple-laminated wood available in a variety of timbers, with ventilated aluminium cladding on the outside.

Achieves a U-value of 0.7 W/m²K and applications include wintergarden units, standard windows, living space/ fixed units.

Available with inward or outward opening (bi-fold) panels. An entry/ exit door with separate operation can be integrated, and tilt-turn panels can be integrated within door elements. The SL 97 folding system can be combined with other fixed and tilt-turn elements.

The design of the external ventilated aluminium cladding follows the guidelines for aluminium/ wood windows of the Institute for Window Technology e.V., Rosenheim.

Performance:

  • Air permeability to DIN EN 12 207: Class 3.
  • Water tightness to EN 12 208: Class 7A.
  • Wind load resistance to EN 12 210: Class C3.

General information
Size

As drawing

As schedule

Finish

EURAS eloxal coated - E6 EV1

EURAS eloxal coated - E6 C34

Uniclass 2015
Sliding folding doorsets (Pr_30_59_24_81)Primary
Specification data - Sliding folding doorsets
Product Reference

SL 97u Folding

Standard, bottom mounted.

SL 97o Folding

Top mounted.

Size

As drawing

As schedule

Exterior frame/ sash cladding

Aluminium, powder coated, RAL

Insert colour requirement.

Aluminium, powder coated, EURAS eloxal

Insert colour requirement.

Interior frame/ sash section -
Material

Pine

Spruce

Special order

Insert requirements, other kinds of wood as well as sustainable forestry wood are available.

Finish

Factory applied final coat

Insert colour from SL colour card.

Factory applied undercoat

Insert colour from SL colour card.

Glazing details

Manufacturer's standard

Track system -
Bottom track -
Type

5-97-02-x

5-97-03-x

Finish

EURAS eloxal coated - E6 EV1

EURAS eloxal coated - E6 C34

Stacking

Inside

Outside

Ironmongery/ Accessories -
Type

Lever handle on inside only, key cylinder on outside

Handle finish

SL Design handle, satin stainless steel

Hinge finish

EURAS eloxal coated - E6 EV1

EURAS eloxal coated - E6 C34

Standard product features

Construction depth:

96 mm.

U-value:

0.8 W/m²K (three-panels, 2700 x 2300 mm).

Sealing:

A triple layer of weather stripping around the perimeter protects against rain and draughts.

Locking:

The integrated multi-point locking system and the comfortable door handle with catch bolt, lock and profile cylinder lock ensure high security.

Product Options

Product reference:

- SL 97u (standard system):

The bottom fitted runner assemblies run on low noise ball bearings, a combination of stainless-steel rollers with stainless-steel bearing surfaces which give a long service life.

- SL 97o:

The top fitted runner assemblies also run on ball bearings with low noise plastic bearing surfaces.

Size:

Panel sizes are restricted in height and width according to the type of glass used and running gear:

- Bottom running:

  • Maximum panel width: 1000 mm (no more than 2200 mm high).
  • Maximum panel height: 2800 mm (no more than 600 mm wide).

- Top hung:

  • Maximum panel width: 1100 mm (no more than 2200 mm high).
  • Maximum panel height: 2800 mm (no more than 700 mm wide).

Insulating glass units (2 x 4 mm or 3 x 4 mm) require a midrail starting from a height of 2400 mm. Special sizes are available on request. Refer to technical literature for panel size diagrams. Maximum panel weight: 70 kg.

Exterior frame/ sash cladding:

Aluminium powder coated in a selection of RAL colours.

Interior frame/ sash section:

  • Material: Available in two standard wood species. Consult Solarlux for availability of alternative species.
  • Finish: Undercoated (standard finish) - colour from SL colour card. Optional final finish of wood surfaces - colour from SL colour card.

Glazing details:

  • Standard glazing: Insulated glazing units with 3 x 4 mm float glass (k glass). Glass upgrade from 24 mm to 46 mm (maximum) possible. Special glazing is available on request.
  • Dry glazed with flush sills to allow for trouble-free pane replacement at a later date.

Track and running gear:

Running and guide rails are flush-mounted into the system. Height tolerances and expansion are allowed for in the design to prevent operational faults and ensure weathertightness.

The bottom rail is available with or without a threshold and can, as an option, be set into the floor. The design without threshold is available for shop fronts or for ‘barrier-free dwellings’ in compliance with DIN 18 025.

Ironmongery/ Accessories:

All fittings are corrosion-free and concealed within the profiles. Low-maintenance, low-rattle, rustproof fittings ensure stability of the system.

Hinges are finished in EURAS eloxal colours.

Fasteners are width-adjustable for optimum adjustment of the folding system and equipped with secured hinges to hinder break-ins.
