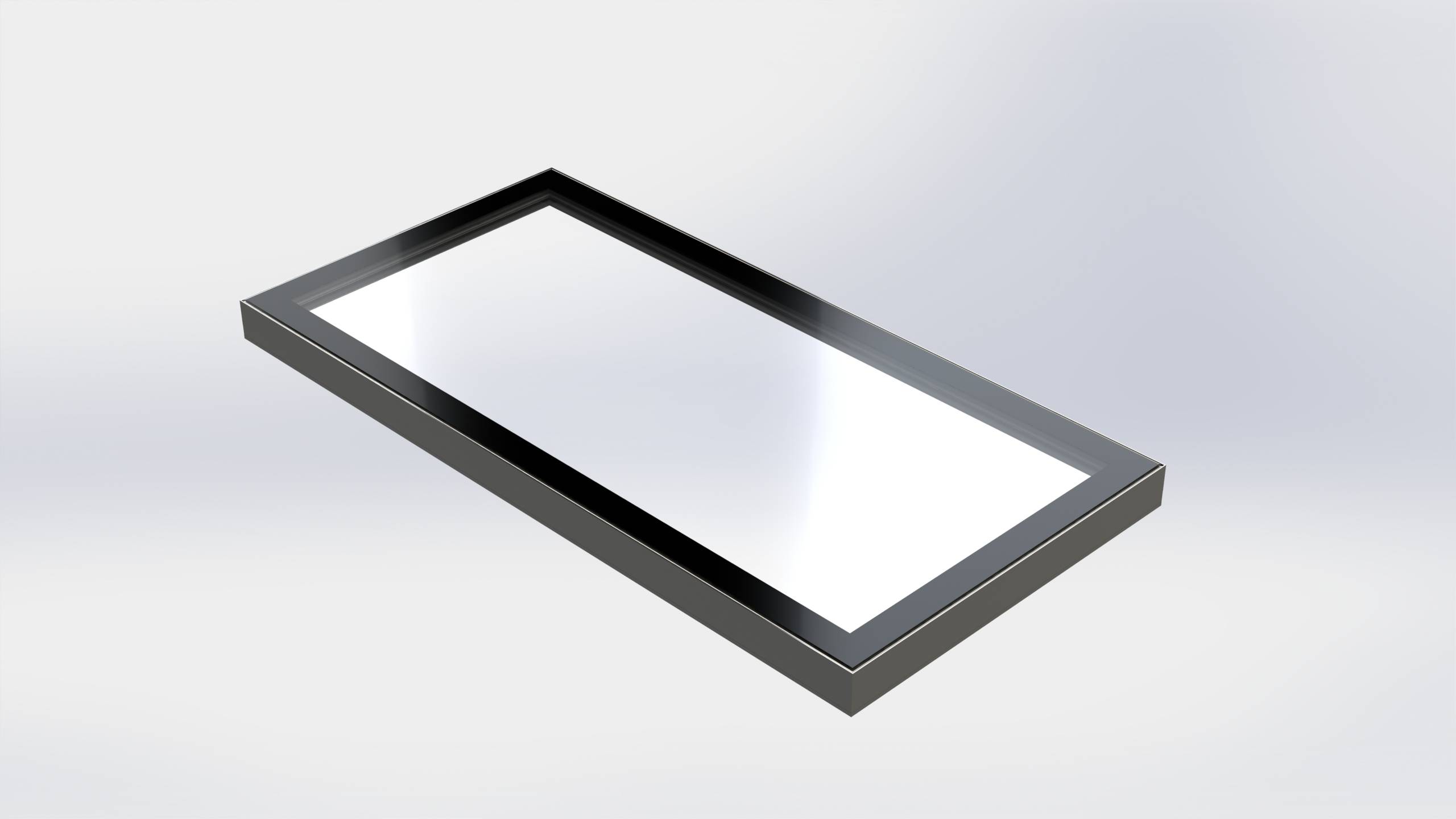

Skyway Fixed Walk On Flat Glass Rooflight - Single Pane

Name: Skyway Fixed Walk On Flat Glass Rooflight - Single Pane
Brand: Roofglaze Rooflights Ltd
SKU: jNMeZZLSPxxnKeMvt1wc1n

Verified by manufacturer 4 hours ago

Roofglaze Rooflights Ltd

Product certifications:

Weathertightness Testing
Certificate type

Fixed Flat Glass rooflight designed to be walked on, in a single pane configuration.

Jump to:

BOS

+44 (0)1480 474 797 Website

Application

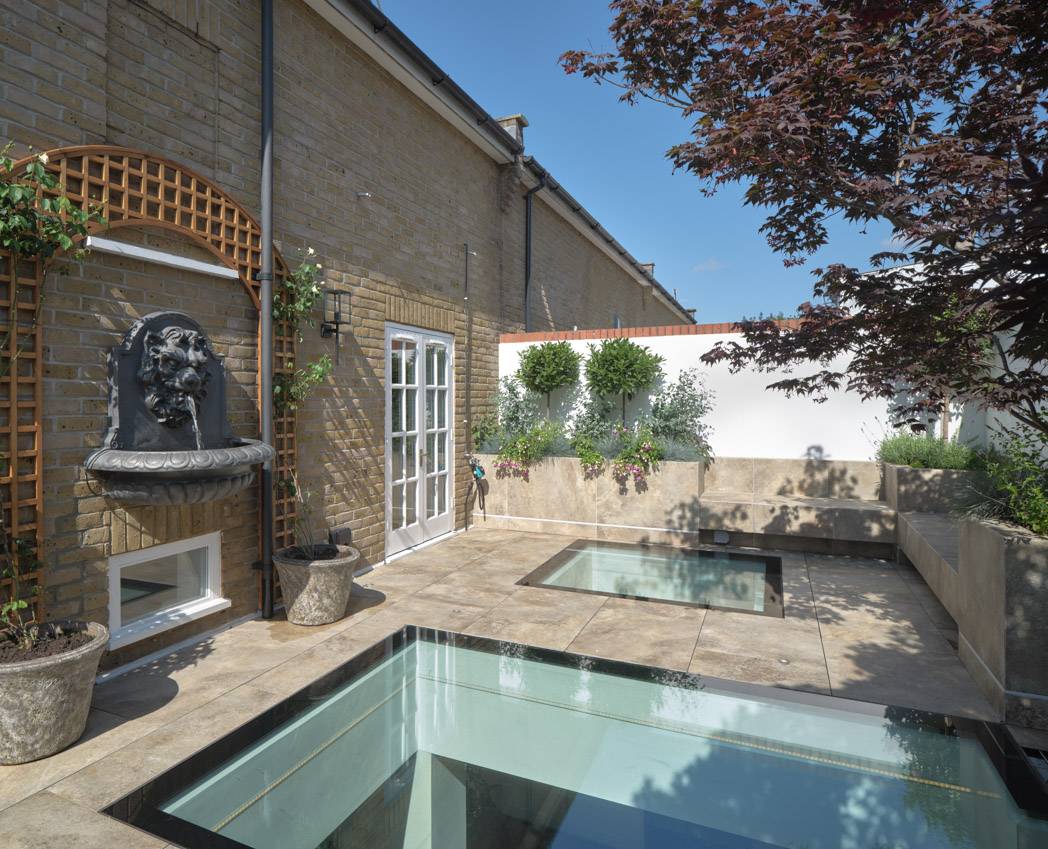

Compatible with both flat and pitched roofs of any type. For roof terraces and internal applications.

Description

Fixed Flat Glass rooflight designed to be walked on. A single pane solution for introducing daylight into areas of a building that would otherwise be dark.

Features and benefits:

Fully thermally broken aluminium frame prevents cold bridging, reducing the risk of condensation.
Walk on glass designed to BS EN 1991-1-1 Loadings for Buildings, UK Annexe.
Anti-slip glass coatings to provide safety in both wet and dry conditions.
Excellent thermal performance, with total system U-values as low as 0.4 W/m²K achievable.
Quick and easy to install.
Cover cap for concealed fixings.
Marine grade powder coat as standard
Flat Glass rooflights are installed to a builder’s kerb ﬁnished by rooﬁng membrane.
Designed to be installed on all roof pitches and roof types.
Recommended minimum kerb pitch of 5° to help shed water.
Daylight is maximized while the visible framework is minimized.
More daylight -> less artiﬁcial light -> energy savings.
More daylight leads to enhanced well-being.
Install and survey services available.

Designed to standard floor loadings from BS EN 1991-1-1 as well as 640 N/m² (snow) and 750 N/m² (wind) and in accordance with the following Standards:

BS EN 1991-1-1: Eurocode 1: Actions on Structures, UK Annexe.
BS 7976-2: Pendulum slip test.
BS 6375-1 2015+A1 2016: Weather tightness.
BS EN 1026: Air permeability.
BS EN 1027: Water tightness test.
BS EN 12211: Wind resistance test.
BS 1474: Aluminium Extrusions.
EN 12020-1:2001: Aluminium Extrusions.
BS EN ISO 16396-2:2017: Polyamide Thermal Break.
BS EN 12206-1:2004: Powder Coating.
EN ISO 10456: 2008 and EN 12664: 2001: Building materials and products. Hygrothermal properties.
BS EN 1279: Insulated Glass Units (IGU).
EN 14179: Heat Soak Testing Toughened Glass.
ISO 11600-FandG-25LM: Silicone Sealants.

General information

Color	Black Grey Other
Finish	Powder-coated
Material	Aluminium Glass
Shape	Circle Oval Triangle Square Rectangle Hexagon Pentagon Octagon Show more
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	15 year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

SKU Code	SK4-WO-F

Product range	Skyway

Specification data - Framed rooflights

Classification data
Form	Flat.
Size	- Manufacturer guidance Insert requirements; shape specified separately below.
Product performance	-
Fire performance	-
Fire resistance	Class Broof(t4). Guidance for specification option: Glass and aluminium.
Reaction to fire	Euro Class A1 non-combustible.
Whole window U-value	0.7 W/m²K. Guidance for specification option: Lowest U-value achievable; consult manufacturer for project-specific values.
Frame	-
Material	Extruded aluminium.
Finish	-
Coating	Powder coating to BS EN 12206-1.
Colour	Anthracite Grey (RAL 7016). White (RAL 9010). Black (RAL 9005). Bespoke RAL. Guidance for specification option: Insert requirements.
Film thickness (minimum)	Coating applicator to determine.
Glazing or infill	-
Type	Insulating glass units, standard. Insulating glass units, solar control. Insulating glass units, privacy glass. Insulating glass units, body tinted coloured glass. Insulating glass units, acoustic laminate. Insulating glass units, CUin advanced thermal performance. Insulating glass units, low iron glass. Insulating glass units, triple glazed. Insulating glass units, quadruple glazed. Insulating glass units, switchable privacy glass. Insulating glass units, heated anti-condensation glass.
Colour	Clear. Diffused. Solar control. Opal. Bronze tint. Green tint. Blue tint. Other. Guidance for specification option: Insert requirements. Hundreds of options are possible through the use of Vanceva® coloured laminated interlayer(s); consult manufacturer for details.
Coating	Standard. Easy-clean coating (Ritec). Anti-slip glass coating. Guidance for specification option: To provide safety and privacy.
Integral kerb	Timber.
Accessories	Not required. Wall abutment(s). Guidance for specification option: To up to three sides; insert requirements. Skyway+ electric blackout blind. Electric integral blind. Manifestation. Guidance for specification option: Artwork, company logo or other - insert requirements.
Shape	Circular. Elliptical. Hexagonal. Octagonal. Rectangular. Square. Triangular. Pentagonal. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements.
Outer pane	Heat soak tested toughened glass laminated together with PVB or SGP interlayers, with full polished edges. Perimeter borders to hide kerbs. Guidance for specification option: General construction uses PVB laminate; at certain sizes the PVB will be upgraded to SGP. Consult manufacturer for details.
Cavity space fill	16 mm argon ﬁlled with Swisspacer warm edge spacer, silicone bonded.
Inner pane	Heat soak tested safety glass. Heat strengthened laminated safety glass. Annealed laminated safety glass.

Sustainability data

Contains Red List materials	No
Country of material origin	France
Country of product manufacture	United Kingdom
Manufacturing plant location	11 Howard Rd, Eaton Socon, St. Neots PE19 8ET, UK
Material	Aluminium Glass
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 4 (kg CO₂ eq/kg) Declared unit : 4.0
Recyclability	Glass and aluminium are highly recycled
Recycled content As defined in clause 7.8 of BS EN ISO 14021	50 %
Expected Life	35 year
