This product is no longer available

Description

Rooflight for flat roofs, constructed from glass, wood and aluminium.

Features and benefits:

  • Clean, aesthetic design.
  • Frameless panels ensure maximum light penetration into rooms without obtrusive framing blocking light from beneath.
  • High thermal insulation and air-tightness, and optimum noise reduction.
  • Comes complete with kerb for installation onto flat and shallow pitched roofs.

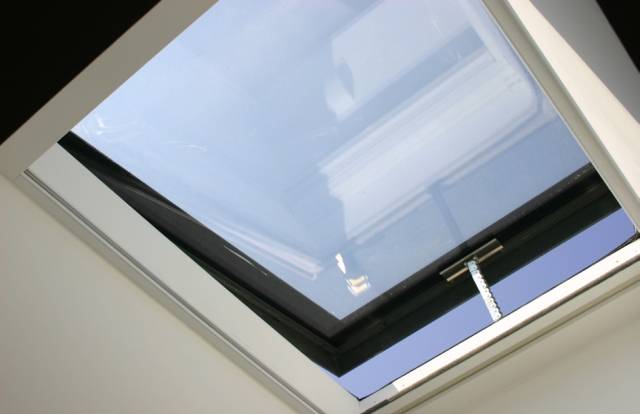

  • Opened by a chain motor which is integrated and concealed in the kerb.
  • Complete with 115 mm silk-screen printing along the edge for UV protection on the sealing.
  • Ten-year overall warranty, with a two-year warranty for opening mechanisms.

Can be installed on flat roof slopes from 0–30°, but a minimum of 4° is recommended.

CE marked in accordance with BS EN 14351-1, and tested according to CWCT TN66/67, Impact Testing.

General information
Specification data - Framed rooflights
Product Reference

Skyvision access

Used for ventilation. Can be programmed for partwise opening. The hidden motors are approved in accordance with EN 12101-2, and open within 60 seconds with a snow load of 800 N/m². Opens up in an angle of 75°.

Skyvision circular

Circular top plate fitted with gaskets. To be placed on the top of an upstand. Double glazed. Kerb not supplied.

Skyvision comfort (opening)

Modular. Tested according to CWCT TN66/67 for impact resistance. Double glazed. Chain stroke length: 300 mm.

Skyvision ecoline

Energy efficient, with robust and highly insulated triple glazing.

Skyvision fixed

Modular. Tested according to CWCT TN66/67 for impact resistance. Double glazed. Non-venting variant; a solution for when natural light and performance are vital.

Skyvision linear

Double glazed, for fitting roof light sections together without the need for additional structure. Has a unique drainage system.

Skyvision walk-on

Suitable for situations that require foot traffic, with 52 mm double glazed units to support loads up to 500 kg/m².

Size -
Panel

See 'Options' below and insert requirements.

Kerb

150–6000 mm. Consult manufacturer and insert requirements.

Glazing

Sunguard SN70/37

Thermal transmittance (U-value): 1.0 W/m²K; light transmission: 68.9; solar factor: 37.5.

Sunguard SNX60/28

Thermal transmittance (U-value): 1.0 W/m²K; light transmission: 58.8; solar factor: 28.2.

Colour/ Finish

Dark grey, RAL 7043

Accessories

Not required

Rain/ wind sensors

For Skyvision comfort only.

Standard product features

Glass:

- Standard glass (for circular, comfort, fixed and linear):

  • 32 mm, two-layer low emissivity.
  • Inner glass: 8.8 mm clear laminated glass.
  • Outer glass: 8 mm clear toughened glass, with 16 mm Argon-fill aluminium spacer.

- Ecoline glass:

  • 32 mm, three-layer extra low emissivity.
  • Inner glass: 8.8 mm clear laminated premium low emissivity.
  • Outer glass: 6 mm clear toughened glass, 6 mm krypton spacer, 4 mm clear toughened premium glass, 8 mm krypton spacer.

- Walk-On glass:

  • Two-layer low emissivity.
  • 16 mm glass insulation, 0.76 mm Polyvinyl butyral, 4 mm laminate annealed float glass.

Thermal transmittance (U-value):

All U-values are calculated in 0 degrees roof pitch, based on the external surface area of 3.72 m².

  • Fixed, Comfort, Access, Linear and Circular (complete rooflight): 0.97 W/m²K.
  • Fixed, Comfort, Access, Linear and Circular: glass up to 2 m²: 1.1 W/m²K; glass up to 4 m²: 1.3 W/m²K.
  • Ecoline (complete rooflight): 0.65 W/m²K.
  • Walk-on (complete rooflight): 1.06 W/m²K.
  • Walk-on (glass): 1.3 W/m²K.

Product Options

Size:

  • Access: 245 mm high upstand, maximum clear internal area of 1 m².
  • Circular: 900–1350 mm (diameter), maximum clear internal area of 1.43 m².
  • Comfort: 600–3000 mm, maximum clear internal area of 4 m².
  • Ecoline: 300–2000 mm, maximum clear internal area of 2 m².
  • Fixed: 250–3000 mm, maximum clear internal area of 4 m².
  • Linear: 250–2900 mm, maximum clear internal area of 2.8 m².
  • Walk-on: 250–2000 mm, maximum clear internal area of 2 m².

Panel size depends on pitch and other static conditions, consult manufacturer for information.

Panel colour/ finish:

Other colours are available. Consult manufacturer for information.
