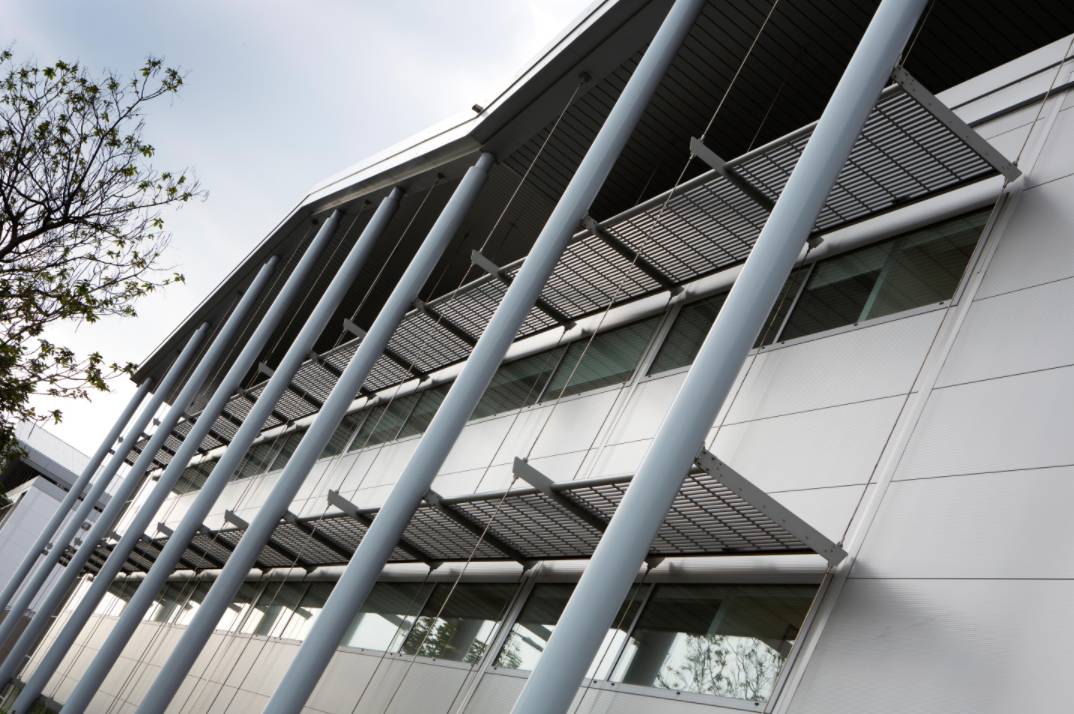

Aluminium brise soleil blades configured as a walkway for building maintenance access
Application
Provides solar shading to glazed buildings and provides walkway suitable for building maintenance access.
Description
The Skyvane® walkway is an aluminium brise soleil system suitable for building maintenance access. Aluminium 6063 T6 profiled blades can be up to 900mm wide, with stainless steel fixings. All securely fitted by Maple approved installers.
Features and benefits:
- A walkway platform with solar shading control.
- Provides easy access for building maintenance.
- Aluminium 6063 T6 profiled blades.
- Brackets fit curtain walling mullions.
- All fixings A2 stainless steel.
- Fitted by fully certified façade installers.
- Three-year manufacturer's warranty.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Anodized |
Material | Aluminium Guidance for specification option: Grade 6063 T6 Extruded aluminium. |
Shape | Formless |
Length | Bespoke Manufacturer guidanceBlade size. Various sizes available, contact manufacturer. |
Width | Bespoke Manufacturer guidanceBlade size. Various sizes available, contact manufacturer. |
Height | Bespoke |
Warranty description | 12 year Guidance for specification option: Dependent on specified finish and project location, consult manufacturer. |
Uniclass | |
CAWS | L35/140 High level walkway system L35/340 High level walkways L10/670 Brises-soleil L10/59 Solar shading system L10/680 Solar shading system L10/55 Brises-soleil |
Product range |
Specification data - Projecting brise soleil systems
Support arms | |
Type | Aluminium brise-soleil carrier members. |
Attachment | |
Mounting brackets | Galvanized mild steel spigot brackets.Guidance for specification option: Fixed direct to structure with mechanical fastener. Profiled aluminium brackets.Guidance for specification option: To be free issued to curtain walling contractor for connection to curtain wall systems. |
Direct fixings | A2 stainless steel with bi-metallic corrosion resistance. |
Shading device | |
Type | Pre-assembled aluminium panel construction.Guidance for specification option: Grade 6063 T6 extruded aluminium. |
Operation | Fixed. |
Fasteners | A2 stainless steel with bi-metallic corrosion resistance. |
Frame fasteners | A2 stainless steel with bi-metallic corrosion resistance. |
System accessories | Not required.Walkway cover.Guidance for specification option: Option for walkway cover to conceal fixings. Kick rail.Guidance for specification option: Option kick rail dependent on application. |
Construction | Grade 6063 T6 extruded aluminium 'T' section profiles equally spaced with stainless steel torsion rods at maximum 500 mm centres. Guidance for specification option: Sleeved with aluminium spacers. Manufacturer guidanceFrame construction. |
System finish | Polyester powder coated. Guidance for specification option: 40 μm thick. |
System colour | Guidance for specification option: Insert requirements. Available in RAL / BS colour from standard range. |
Bracket finish | Polyester powder coated. Guidance for specification option: 25 μm thick. Available in RAL/BS colour form standard range. Manufacturer guidanceBrackets finish. |
Dimensions | 25 x 60 m. Manufacturer guidanceBlade size. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Grade 6063 T6 Extruded aluminium. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Expected Life | 80 year |
