Skyforce Juliet Balcony
Compare variants

Skyforce Juliet Balcony

OnLevel Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

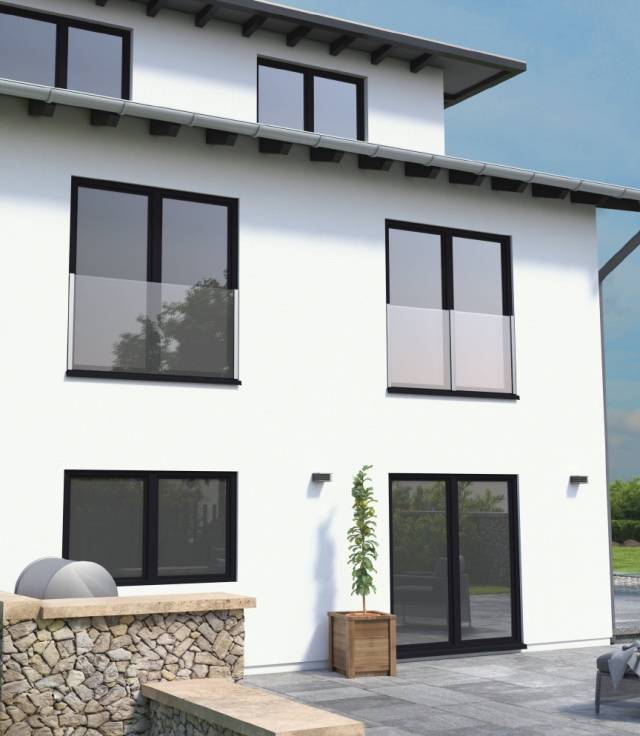

Frameless glass fall protection for French balconies.

Jump to:
+44 (0)161 8049500 www.onlevel.com

Application

  • Compatible with any window profile.
  • Suitable for use with plastic, aluminium, wooden and metal frames.

Description

Frameless glass fall protection for French balconies. Can cover all glass thicknesses, heights and widths, with a single profile.


Features and benefits:

  • Quick and simple mounting: slide-and-click techniques allow system to be mounted directly onto window frames and masonry.
  • Can be mounted onto stone, concrete and steel.
  • Fall protection can be easily installed behind shutter guide rails.
  • Simple, tool-free installation.
  • A variety of finishes are available.
  • Suitable for glass thicknesses between 10 and 21.52 mm.
  • Pre-assembled.
  • Includes drainage channels.
  • Cost-effective.
  • Practically invisible.
  • Timeless design.

General information

Color

Consult manufacturer and insert RAL colour requirement, on coloured finish only.

Natural anodized

Stainless steel finish

RAL, to order

Finish

Anodized

Material

Aluminium

Size

Consult manufacturer and insert requirements. Max. width 3000 mm, max. height 1100 mm.

500 mm

1100 mm

1200 mm

WarrantyDescription

10 year warranty

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/50 Purpose-made balustrades

L30/55 Proprietary balustrades

L30/550 Purpose-made balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems Enhanced data

Type

Two-part complete set, aluminium (anodized).

Height:

900 mm.

Width

3000 mm (maximum). Consult manufacturer and insert requirements.

-

Glass thickness

10—11 mm.

(16.1009.010.11)

12—13.5 mm.

(16.1009.012.11).

15 mm.

(16.1009.015.11).

16—17.5 mm.

(16.1009.016.11).

19 mm.

(16.1009.019.11).

Show more

Accessories

Choose dependent on application – consult manufacturer for information.

Assembly tool.

(90.0100.105.00).

Centrepiece, anodized.

Insert glass thickness and height.

Centrepiece, coloured.

Insert glass thickness and height.

Centrepiece, mill finish.

Insert glass thickness and height.

Cover profile, centre.

Mill finish (16.1750.005.10) and coloured (16.1750.005.13) – 5000 mm length.

Show more

Surface finish

Anodized.

Environmental information

Country of product manufacture

Germany

Recyclability

100

Literature

SKYFORCE Glass Juliet Balcony

SKYFORCE Glass Juliet Balcony

Third party certifications

  • General Building Inspection Test: Certificate ABP
  • General Building Inspection Test: Certificate: BS6180
