Flat plate solar collector for integration into the roof covering.

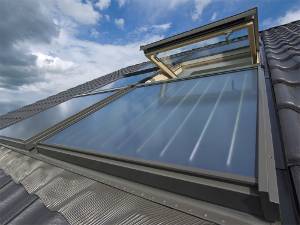

Type SKW solar collectors can be combined with Fakro roof windows in any configuration, tight connections are ensured by using standard flashings for Fakro windows. The solar collectors are suitable for use on roofs with 15–90º pitch. A pitch of 35–55 º is recommended. The panels are made from hailstone-resistant toughened low iron prismatic pane (4 mm thick) with stiff aluminium profiles. The absorber plate is manufactured from copper sheet, covered with a highly absorbtion TINOX® coating with special mineral wool on the underside and side walls. Please contact Fakro when specifying.
Types 11 and 44 are tested under the Solar Keymark, a necessary criteria to obtain grants in most European countries. Tested in accordance with EN 12975-2:2006 Paragraph 5&6.
S90/33 Solar collectors
S90/347 Flat plate solar collectors
SKW Solar Collector
780 x 1400 mm.
1140 x 1180 mm.
1140 x 1400 mm.
1140 x 2060 mm.
High profiled roofs tile up to 90mm.
Slate roof up to 8mm non-interlocking.
Profiled roofs tile up to 45mm.
Expansion tank 12 litre.
Expansion tank 18 litre.
Expansion tank 24 litre.
Expansion tank 35 litre.
Expansion tank 50 litre.
Cylinder for heating usable water (200 litre).
Cylinder for heating usable water (300 litre.)
Cyliner , expansion tank and control panel in one unit (300 litre).
Cylinder for heating usable water (400 litre).
Cylinder for heating usable water (500 litre).
Pipes for boiler and collector connection.
Water mixing valve.
