NBS Source
Sink Bowl K50B

Application

Suitable for varied applications including public, commercial, industrial, domestic and anti-vandal environments.

Description

Stainless steel combination bowls incorporated into GEC Anderson stainless steel worktops. Also available individually.


Low maintenance, hygienic and very durable.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangular

Uniclass 2015

Pr_40_20_96_45 Kitchen sinksPrimary

Product range

Made to Measure / Bowls

Specification data - Kitchen sinks Enhanced data

Arrangement

Double bowl, for incorporating into stainless steel worktop.

Inset double bowl with 50 mm bevelled flange.

Undermounted double bowl with 50 mm bevelled flange.

Wash bowls

-

Length (maximum)

825 mm.

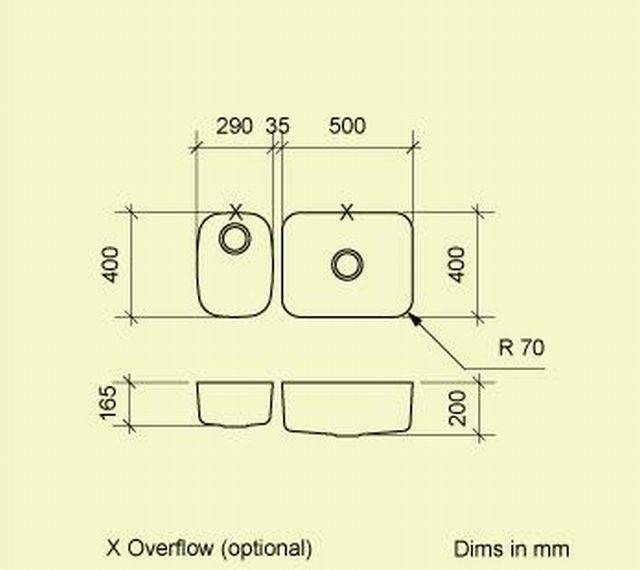

Overall 825 x 400 x 200 mm deep, Main bowl: 500 x 400 x 200 mm deep, Slop sink: 290 x 400 x 165 mm deep.


Width (maximum)

400 mm.

Overall 825 x 400 x 200 mm deep, Main bowl: 500 x 400 x 200 mm deep, Slop sink: 290 x 400 x 165 mm deep.


Depth (maximum)

200 mm.

Overall 825 x 400 x 200 mm deep, Main bowl: 500 x 400 x 200 mm deep, Slop sink: 290 x 400 x 165 mm deep.


Tap arrangement

No tap holes.

Waste

-

Diameter

38 mm.

89 mm.

Arrangement

38 mm Plug waste in main bowl.

89 mm Basket strainer waste.

Product Reference

Sink Bowl K50B

Material and finish

Brushed satin stainless steel to EN 1.4301.

Outlet

38 mm diameter plug waste and overflow.

89 mm diameter with basket strainer waste (BSW) and overflow.

Tap/ Chainstay/ Overflow holes

No tap, chainstay hole or overflow.

No tap or chainstay holes, with overflow.
