Sink Bowl BE50 - Rectangular Stainless Steel Kitchen Sink
Verified by manufacturer 16 days ago
Rectangular stainless steel sink bowl.
Application
Suitable for varied applications including public, commercial, industrial, domestic and anti-vandal environments.
Description
Stainless steel single bowl incorporated into GEC Anderson stainless steel worktops. Also available individually. Suitable for varied applications including public, commercial, industrial, domestic and anti-vandal environments.
Features and benefits:
- Easy to maintain.
- For incorporating into a stainless steel worktop.
- Option: Flat flange (20 mm) for under-mount or insetting.

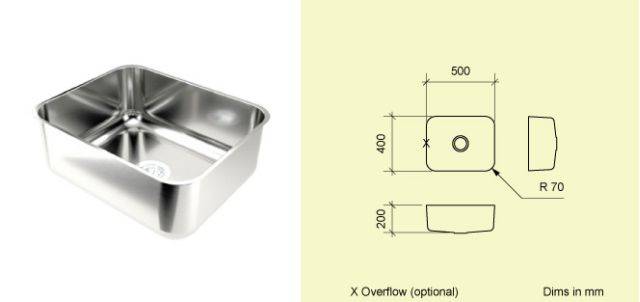

- Internal bowl size (L x W x D): 400 x 500 x 200 mm.
- Features a 70 mm corner radius.
- EN 1.4301 brushed satin stainless steel, with option for EN 1.4401 acid-resisting grade finish.
- 89 mm diameter hole with basket strainer waste, with option for 38 mm diameter waste, plug and chain.
- No tap or chainstay.
- Overflow as standard, with option for no overflow.
General information
Color | Silver |
Finish | Brushed Satin |
Material | Stainless steel Guidance for specification option: EN 1.4301 brushed satin stainless steel, with option for EN 1.4401 acid-resisting grade. Steel Plastic |
Shape | Rectangle |
Length | 400 mm |
Width | 500 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Commercial stainless steel sinks
Arrangement | Single bowl for incorporating into stainless steel worktop.Single bowl for undermounting with 20 mm flat flange.Single inset bowl with 20 mm flat flange. |
Wash bowls | |
Length (maximum) | 400 mm. |
Width (maximum) | 500 mm. |
Depth (maximum) | 200 mm. |
Tap arrangement | None. |
Waste | |
Material | Plastic and brushed satin stainless steel.Guidance for specification option: BSW, as standard. Plastic.Guidance for specification option: Plug-waste, optional. |
Diameter | 89 mm.Guidance for specification option: BSW, as standard. 38 mm.Guidance for specification option: Plug-waste, optional. |
Arrangement | Basket strainer waste (BSW) and overflow hole.Plug-waste with overflow hole.Basket strainer waste (BSW), no overflow hole.Plug-waste, no overflow hole. |
Standard: | To BS EN 274-1, EN 274-2 and EN 274-3. |
Flanges | Not required. 20 mm flat flange. |
Material and finish | Brushed satin stainless steel to EN 1.4301. Guidance for specification option: Standard. Acid resisting grade stainless steel to EN 1.4401. Guidance for specification option: Optional. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications

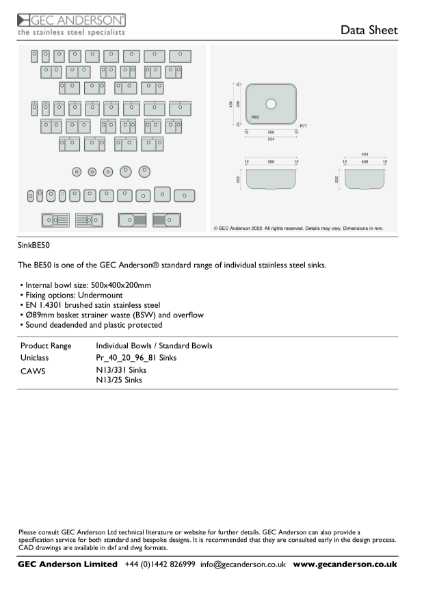

GEC Anderson Data Sheet - Sink Bowl: BE50
