Verified by manufacturer 29 days ago

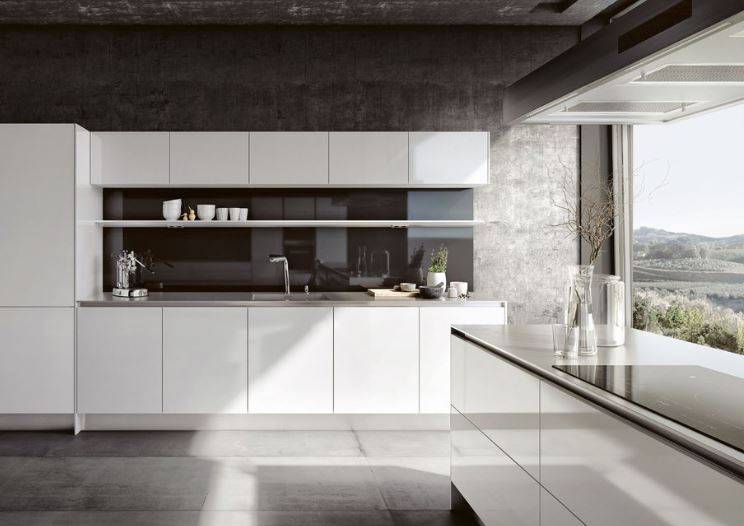

Handle-less base unit for sink, with two hinged doors, and metal base lining mat.
SieMatic S2, handle-less sink base unit cupboard with two doors with SieMatic soft close hinge, available in widths of 80cm, 90cm, 100cm, 120cm, height of 78cm, depth of 61cm. Internally, the carcass sides have Multimatic tracking and a metal base.
The carcass is made up of white, two-sided directly applied triple layer furniture board (emission class E1), 1.6 cm thick. The back wall is 3.0 mm thick hardboard plinth to allow access to plumbing. The carcase front edge is an ABS edge, the colour is preselected to match the door front colour but can be changed upon request or fitted with an aluminum coloured edge. All other carcase edges sealed with melamine edging. The carcass front edge is also fitted with a safety profile dust seal in white or grey.
Door styles available in the SieMatic colour system in laminate matt, laminate wood, laminate gloss, SimiLaque velvet-matt, SimiLaque high-gloss, Lacquer matt or gloss, veneer, metal.
Color | Manufacturer guidanceThe SieMatic colour system |
Finish | Laminated Veneered |
Material | Laminate Manufacturer guidanceTriple layer furniture board |
Shape | Rectangle |
Length | 780 mm |
Width | 610 mm |
Height | 800 mm 900 mm 1000 mm 1200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/310 Fitted base units N11/10 Fitted base units and wall units |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
