Siniat Standard Board

Siniat Standard Board - 9.5 mm

Siniat Variant:

General drylining plasterboard.

Jump to:
+44 (0)1275 377773 www.siniat.co.uk

Application

For partitions, linings and ceilings where normal fire, structural and acoustic levels are specified.

Description

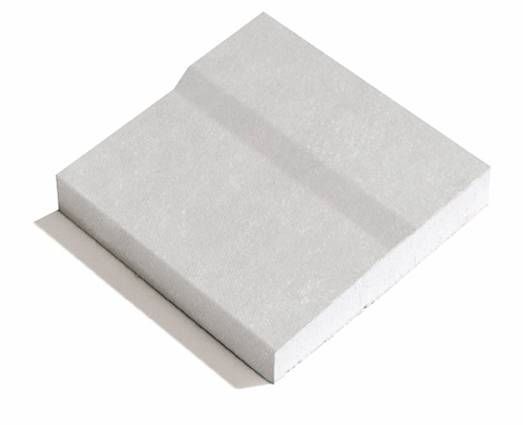

GTEC Standard Board is a gypsum board for partitions, linings and ceilings where normal fire, structural and acoustic levels are specified. It is available with square or tapered edges in a variety of sizes. Tapered edge boards for taping and jointing to achieve a flush finish or for a single coat gypsum plaster finish. Square edge boards for textured finishes or undecorated applications as well as being suitable to receive gypsum plaster.


Features and benefits:

Available in a wide range of sizes to minimize waste.

General information

Material

Gypsum

Size

900 x 1800 mm.

1200 x 2400 mm.

1200 x 2700 mm.

Uniclass

Pr_25_71_35_94 Vapour check gypsum plasterboardsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/25 Ceiling lining on timber

K10/30 Metal stud

K10/35 Wall lining system (metal framing)

K10/41 Wall lining system (metal furrings)

K10/45 Wall lining system (adhesive)

K10/50 Suspended ceiling system on metal framing

Product range

GTEC Boards

Specification data - Vapour check gypsum plasterboards Enhanced data

Standard

To BS EN 520.

Moisture vapour resistance of backing layer (minimum)

μ = 10.

To BS EN 12524.

Thickness (nominal)

9.5 mm.

Edge profile

Square edge.

For textured finishes or undecorated applications as well as being suitable to receive gypsum plaster.

Tapered edge.

For taping and jointing to achieve a flush finish or for a single coat gypsum plaster finish.

Product Reference

Siniat Standard Board

Colour

Ivory on the front and grey on the rear face.

ThermalConductivity

0.19 W/m·K.

To BS EN 12524.

MoistureContent

<2%.

Tensile strength - longitudinal

Longitudinal breaking load.

≥400 N.

Tensile strength - transverse

Transverse breaking load.

≥160 N.

Reaction to fire

A2-s1, d0.

Water vapour permeability

Water uptake:

≤5%.

To BS EN 520.

Thermal resistance (R-value)

0.05 m²K/W.

Weight

(Board weight).

17.3 kg.

Width

1200 mm.

Length

2400 mm.

Materials

Gypsum.

Resistance

Nail and screw pull through.

>300 N.

Mass

5.95 kg/m².

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom

Embodied carbon

0.160 kgCO2e/kg

Cradle to gate.

Recyclability

100%

Fully recyclable

Recycled content

14 %

% post-consumer content.
