Siniat Single Frame Partition CS70R-215Md-25G

Name: Siniat Single Frame Partition CS70R-215Md-25G
Brand: Siniat
SKU: 2A8HFXe9kaC4oXQCviKWTd

Verified by manufacturer 9 days ago

Siniat

Product certifications:

CCPI System
Certificate type
EPD
Certificate type
EPD
Certificate type

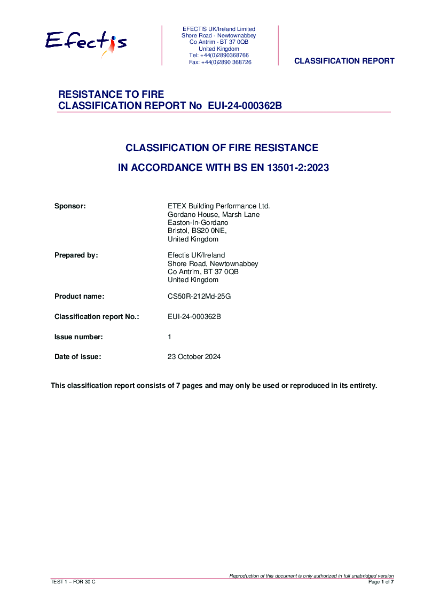

EN 13501-2
Certificate type

Single frame metal stud partition for use where fire and acoustic performance is required.

Jump to:

+44 (0)1275 377773 Website

Application

Suitable for use where fire and acoustic performance is required.
Suitable for use in large commercial spaces.

Description

Siniat Metal Stud Partitioning is an economical, friction-fit system for assembling internal partitions. The design of the components ensures high strength, easy installation and a higher performing alternative to traditional timber frame partitions.

Features:

Strong.
Lightweight.
Natural resistance to bowing, bending and insect infestation.
High fire resistance performance.
High acoustic performance.
Flat finish.

Benefits:

Less material is required than a similar timber frame structure.
Multiple lengths can be carried at one time.
Metal maintains shape, removing the chance of ‘screw popping’.
Fire performance requirements are easily achieved using metal.
Acoustic performance requirements are easily achieved using metal.
Provides an easy surface for decoration.

General information

Finish	Other
Material	Plasterboard Glass mineral wool Metal
Shape	Other
Width	Bespoke
Height	Bespoke
Warranty description	Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat drywall systems as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The System must be constructed solely with the proprietary products and components as supplied by Siniat. The System must be installed by a professional installer in accordance with the Siniat Drywall Manual, the specification documents issued by Siniat, CAD drawings, advice and all relevant and applicable construction standards and regulations.

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/30 Metal stud K10/125 Metal stud partition system

Specification data - Gypsum board partition systems

Classification data
System performance	All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989. Guidance for specification option: BS 8212:1995 - 'Code of practice for drylining and partitioning using gypsum plasterboard'. BS 8000-8:1989 - 'Code of practice for plasterboard partitions and drylining'.
Framing	Siniat C Studs CS70/Rx; Siniat U Track Deep Flange UDT72/P; Siniat U Track UT72/Rx. Guidance for specification option: Studs: 70 mm Siniat C Studs CS70/Rx at 600 mm centres. (400 mm centres if to be tiled). Tracks (Head): 72 mm Siniat U Track Deep Flange UDT72/P. Tracks (Base): 72 mm Siniat U Track UT72/Rx. Track Note: For partition heights over 4.2 m, head/base track must be appropriate width Siniat Deep Flange U-Tracks as a minimum. For partition heights over 7.2 m, head/base track must be appropriate width Siniat Extra Deep Flange U-Tracks as a minimum. Track Fixing: Head and base track fixed to structure at maximum 600 mm centres with suitable fixing by others.
Insulation	Glass mineral wool. Guidance for specification option: 25 mm thickness. Fixing as per current Siniat recommendations.
Linings	Face A Plasterboard Linings - Inner Layer: 15 mm Siniat Megadeco. Face A Plasterboard Linings - Outer Layer: 15 mm Siniat Megadeco. Face B Plasterboard Linings - Inner Layer: 15 mm Siniat Megadeco. Face B Plasterboard Linings - Outer Layer: 15 mm Siniat Megadeco.
Fasteners	Inner Layer Fixing: 35 mm Siniat Performance Self Tapping Screws at 600 mm centres. Outer Layer Fixing: 45 mm Siniat Performance Self Tapping Screws at 300 mm centres.
Joint treatment	Decorative. Guidance for specification option: Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape. Consult manufacturer for further details. Non-decorative. Guidance for specification option: Outer boards should be taped and jointed using appropriate Siniat compounds to at least first stage (bedding). Consult manufacturer for further details. Manufacturer guidance When using an outer layer for Siniat Aqua Board follow manufacturer’s guidance on wet area installation.
Finish	Siniat Universal Sealer. Siniat Drywall Sealer. Manufacturer guidance Apply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual.
Samples required	Guidance for specification option: Consult manufacturer and insert requirements or omit.
System accessories	Not required. Siniat Flat Strap FS50/Rx. Guidance for specification option: For use where partition height exceeds board height; to be fixed behind all horizontal joints to provide substrate for board fixing. Siniat 18 mm Pattress Bracket. Guidance for specification option: Where required; contact manufacturer's technical services for more information.
Sealing (joints and penetrations)	Intumescent acoustic sealant. Guidance for specification option: Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed. All penetrations should use supporting constructions detailed in the Siniat Drywall Manual unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products. For cPVC pipe sealing use FSI PYROPRO(R) Sealant in place of Siniat Intumescent Acoustic Sealant.
Height	Guidance for specification option: Insert requirements: Cold state maximum height: 5250 mm. EN fire state maximum height: 5000 mm.
Fire resistance classification	EI 120 minutes to EN 13501-2.
Sound insulation	57 Rw dB.
Duty rating (to BS 5234-2)	Severe.
Thickness	130 mm. Manufacturer guidance Nominal.
Deflection	Guidance for specification option: Insert requirements or omit. If required as per Drywall manual.
System code	CS70R-215Md-25G.
Third-party certification	All products are CE marked and UKCA marked in accordance with construction products regulation. Guidance for specification option: Where relevant standards or European Technical Approvals exist.
Standards	To BS EN 520, BS EN 10346, BS EN 10162, BS EN 14195 and BS EN 14566. Guidance for specification option: All boards to conform to BS EN 520 or alternative standard where appropriate. Metal framing components are hot dipped galvanized steel to BS EN 10346. Metal sections rolled to BS EN 10162. Metal studs, tracks and accessories conform to BS EN 14195 where required. Drywall screws conform to BS EN 14566.

Sustainability data

Country of material origin	Spain Guidance for specification option: Applies to the bulk material (gypsum) only. Other components are from other countries. Consult manufacturer for details.
Country of product manufacture	United Kingdom Guidance for specification option: UK applies to the majority of manufacture but a small percentage of finished items are imported. Contact manufacturer for details.
Material	Plasterboard Glass mineral wool Metal
Recyclability	Gypsum and metal components can be recycled depending on the segregation of all materials.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Gypsum average 33.5% and metal average 17%.
