Siniat LaDura Partition Systems
Application

Suitable for use across many construction sectors, including commercial, residential, education and health.

Description

Partitioning systems incorporating LaDura gypsum board, fixings, frame and finishing products. Suitable for use across many construction sectors, including commercial, residential, education and health.

Features and benefits:

They offer a simple lightweight, durable and versatile means of dry wall construction.

Application:

Suitable for use across many construction sectors, including commercial, residential, education and health.

General information

Features

They offer a simple lightweight, durable and versatile means of dry wall construction

Finish

Studded

Material

Aerated calcium sulfate di-hydrate with fillers, glass fibre, wood fibres and moisture-resistant agent enclosed inside a tough paper with bound edges. Core and papers are bonded with starch. PVA edge glue

Size

1200 x 2400–3000 mm (w x l) boards

Uniclass 2015

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

K10/30 Metal stud

Specification data - Gypsum board partition systems

Product Reference

Siniat LaDura Partition Systems

Framing

ADP 003: Acoustic Stud Partition

System weight: 33 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 51 dB sound reduction.

ADP 130: Acoustic Stud Partition

System weight: 52 kg/m²; Thickness: 140 mm; Fire performance: To BS 476-22: 120 minutes; to BS EN 1364-1: 90 minutes; Strength duty: Severe; Acoustic performance: 60 dB sound reduction.

ADP 138: Acoustic Stud Partition

System weight: 33 kg/m²; Thickness: 120 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 52 dB sound reduction.

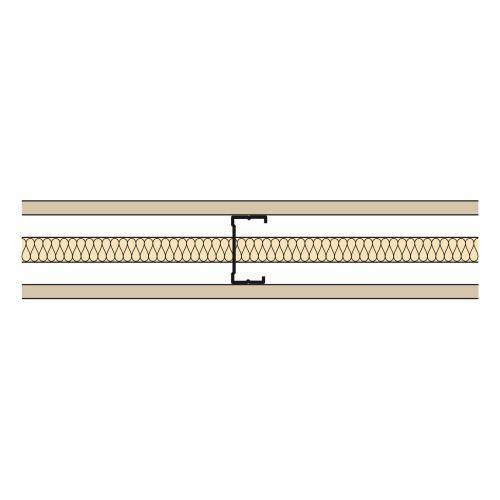

LDP 001: C Stud Partition

System weight: 33 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 41 dB sound reduction.

LDP 003: C Stud Partition

System weight: 33 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 49 dB sound reduction.

LDP 004: C Stud Partition

System weight: 33 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 50 dB sound reduction.

LDP 008: C Stud Partition

System weight: 27 kg/m²; Thickness: 95 mm; Fire performance: 30 minutes; Strength duty: Severe; Acoustic performance: 48 dB sound reduction.

LDP 011: C Stud Partition

System weight: 52 kg/m²; Thickness: 120 mm; Fire performance: To BS 476-22: 120 minutes; to BS EN 1364-1: 90 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

LDP 011F: C Stud Partition

System weight: 52 kg/m²; Thickness: 120 mm; Fire performance: 120 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

LDP 013: Twin Frame Partition

System weight: 33 kg/m²; Thickness: 170 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

LDP 024: C Stud Partition

System weight: 64 kg/m²; Thickness: 130 mm; Fire performance: 120 minutes; Strength duty: Severe; Acoustic performance: 57 dB sound reduction.

LDP 038: Twin Frame Partition

System weight: 64 kg/m²; Thickness: 200 mm; Fire performance: 120 minutes; Strength duty: Severe; Acoustic performance: 65 dB -8 Ctr sound reduction.

LDP 050: C Stud Partition

System weight: 45 kg/m²; Thickness: 120 mm; 60 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

LDP 086: C Stud Partition

System weight: 52 kg/m²; Thickness: 145 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

LDP 128: C Stud Partition

System weight: 33 kg/m²; Thickness: 120 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 50 dB sound reduction.

LDP 130: C Stud Partition

System weight: 52 kg/m²; Thickness: 140 mm; Fire performance: To BS 476-22: 120 minutes; to BS EN 1364-1: 90 minutes; Strength duty: Severe; Acoustic performance: 57 dB sound reduction.

LDP 138: C Stud Partition

System weight: 33 kg/m²; Thickness: 120 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 51 dB sound reduction.

LDP 140: C Stud Partition

System weight: 64 kg/m²; Thickness: 150 mm; Fire performance: 120 minutes; Strength duty: Severe; Acoustic performance: 58 dB sound reduction.

Insulation

None or 16 kg/m³ density glass mineral wool (supplied by others) with GTEC Insulation Hold to secure and prevent slump

Dependant on partition type selected, various thicknesses.

Cavity fire barriers

GTEC Intumescent Acoustic Sealant

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Linings

-

Inner layers

None or LaDura Board

Dependant on partition type selected, various thicknesses.

Face layer

LaDura Board

Various thicknesses dependant on partition type selected.

Fasteners

GTEC Self-Tapping Drywall Screws

Joint treatment

Insert requirements from manufacturer's literature.

System accessories

None

GTEC V-Brace

For LDP 013 and LDP 038 only, 1500 mm centres.

System height

As drawing

Insert reference, available 3.7–7.2 m (dependent on system build-up).

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Support

GTEC Corner and Edge Beads

Provides corner and edge reinforcement.

Socket integrity

GTEC Socket Pad

Maintains acoustic and fire integrity at sockets.

Standard product features

Features:

They offer a simple lightweight, durable and versatile means of dry wall construction.

Finish:

Studded.

Material:

Aerated calcium sulfate di-hydrate with fillers, glass fibre, wood fibres and moisture-resistant agent enclosed inside a tough paper with bound edges. Core and papers are bonded with starch. PVA edge glue.

Size:

1200 x 2400–3000 mm (w x l) boards.
