Siniat GTEC Standard Board Partition Systems

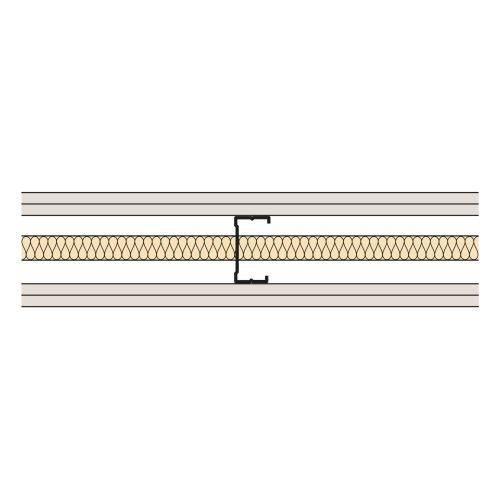

Siniat GTEC Standard - RCP 001: C Stud Partition
Siniat GTEC Standard - RCP 001: C Stud Partition
Gypsum board partition systems.
Application
Suitable for use across many construction sectors, including commercial, residential, education and health.
Description
Partitioning systems incorporating GTEC Standard gypsum board, fixings, frame and finishing products. Suitable for use across many construction sectors, including commercial, residential, education and health.
Features and benefits:
They offer a simple lightweight, durable and versatile means of dry wall construction.
General information
Finish | Studded |
Material | Gypsum |
Uniclass | |
CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
Specification data - Gypsum board partition systems Enhanced data
Framing | Siniat GTEC CS50/Rx C studs.Siniat GTEC UT52/Rx U tracks.Siniat GTEC FS90/W Flat Strap. |
Insulation | None.25 mm-thick glass/ rock mineral wool.(Supplied by others) with GTEC Insulation Hold to secure and prevent slump. Dependant on partition type selected, various densities. |
Linings | - |
Inner layers | None.12.5 mm-thick GTEC Standard Board.Dependant on partition type selected. |
Face layer | 12.5 mm-thick GTEC Standard Board. |
Fasteners | GTEC Self-Tapping Drywall Screws. |
Joint treatment | Insert requirements from manufacturer's literature. |
Product Reference | Siniat GTEC Standard Board Partition Systems |
Cavity fire barriers | GTEC Intumescent Acoustic Sealant. Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance. |
System height | As drawing. Insert reference, available 2.6–8.2 m (dependent on system build-up). |
Sealer | GTEC Drywall Sealer. Ivory, pre-decoration coat for plasterboard. GTEC Universal Sealer. For use on plasterboard prior to painting for improved whiteness and covering power. |
Support | GTEC Corner and Edge Beads. Provides corner and edge reinforcement. |
Socket integrity | GTEC Socket Pad. Maintains acoustic and fire integrity at sockets. |
Size: | 900–1200 x 1800–3000 mm. Board width x length. |
WeightSystem weight. | 17 kg/m². |
Thickness | 75 mm. |
Fire performance | 30 minutes to BS 476-22. |
Strength | Medium. |
Acoustic performance | 34 dB. Sound reduction. |
Height: | 2.6 m. |
Face layer | 12.5 mm GTEC Standard Board. |
