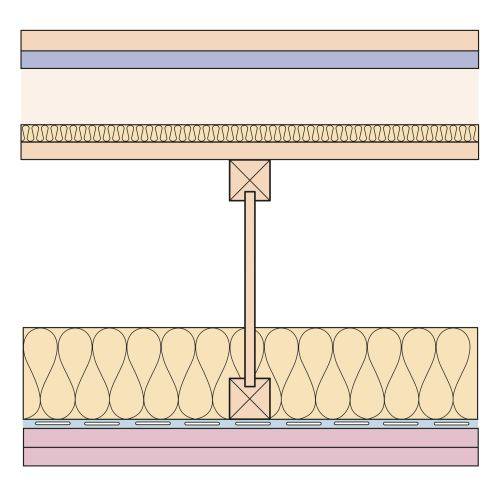

Siniat GTEC Separating Floor Systems.

Application

Widely used in the construction of both residential and commercial sector buildings.

Description

Separating floor systems, widely used in the construction of both residential and commercial sector buildings. They can be used to cover a wide range of design objectives, including aesthetic, acoustics, environmental, safety and performance requirements.


Features and benefits:

They can be used to cover a wide range of design objectives, including aesthetic, acoustics, environmental, safety and performance requirements.

General information

Material

Dependent on system.

Uniclass 2015

Ss_30_20_10_50 Joist-supported wood-based rigid sheet floor systemsPrimary

CAWS

K11/275 Acoustic separating floor system

Product range

GTEC Floors and Ceilings

Specification data - Joist-supported wood-based rigid sheet floor systems Enhanced data

Flooring

Dependent on system, consult manufacturer.

Fasteners

Dependent on system, consult manufacturer.

Joint treatment

Insert requirements from manufacturer's literature.

System accessories

None.

GTEC Resilient Bar.

For E-FT-1, RTC 050 only, 450 mm centres (maximum).

Product Reference

Siniat GTEC Separating Floor Systems

Perimeter sealer

GTEC Drywall Sealer.

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer.

For use on plasterboard prior to painting for improved whiteness and covering power.

Type

E-FC-1: (CT1) Metal Ceiling System.

GTEC MF Ceiling system providing 100 mm (minimum) ceiling void with one layer of 12.5 mm thick GTEC Standard Board.

E-FC-1: (CT2) Timber Battens and Counter Battens.

50 x 50 mm softwood battens with 50 x 50 mm counter battens below and one layer of 12.5 mm thick GTEC Standard Board.

E-FC-1: (CT3) Metal Ceiling System.

GTEC Dryliner SR or MF Ceiling System providing a 75 mm (minimum) ceiling void with one layer of ≥10 kg/m² GTEC Board.

E-FC-1: (CT4) Timber Battens and Resilient Bar.

50 x 50 mm softwood battens with GTEC resilient bar RBD3000 mounted at 90° to softwood battens at 450 mm centres (maximum) and one layer of 12.5 mm thick GTEC E Board.

E-FC-2: Metal Ceiling System.

GTEC Dryliner SR or MF Ceiling System providing a 75 mm (minimum) ceiling void with one layer of ≥10 kg/m² GTEC Board.

Show more

Inner layers

Dependent on system, consult manufacturer.

Face layer

Dependent on system, consult manufacturer.

Insulation

Dependant on flooring type selected.

None.

Glass mineral wool.

100 mm-thick 10.5 kg/m³ (supplied by others).

Cavity fire barriers

GTEC Intumescent Acoustic Sealant.

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Structure

47 x 200 mm joists at 450 mm centres.

 (Supplied by others).
