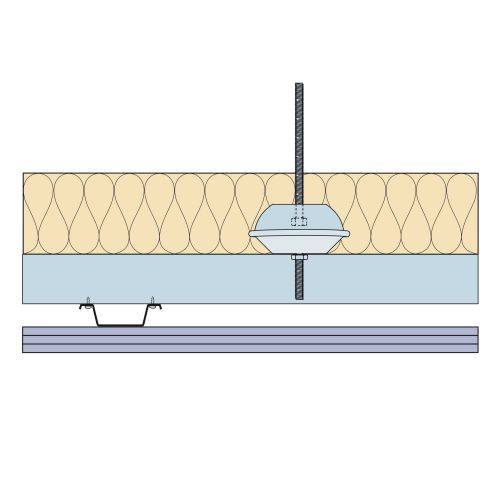

Siniat GTEC Mass Barrier Ceilings
Compare variants

Application

Widely used in the construction of both residential and commercial sector buildings.

Description

Suspended ceiling systems.


Features and benefits:

They can be used to cover a wide range of design objectives, including aesthetic, acoustics, environmental, safety and performance requirements.

General information

Material

Wool

Glass mineral wool insulation and board.

Uniclass 2015

Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary

CAWS

K10/220 Proprietary suspended ceiling system

K10/50 Suspended ceiling system on metal framing

Product range

GTEC Floors and Ceilings

Specification data - Gypsum board suspended ceiling systems Enhanced data

Suspension grid

UT52/Y Heavy Duty primary channels.

MFCC50 Ceiling channels.

Insulation

Glass mineral wool.

100 mm-thick 10.5 kg/m³ (supplied by others).

Barriers in ceiling void

-

Fire barriers

GTEC Intumescent Acoustic Sealant.

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Acoustic barriers

GTEC Intumescent Acoustic Sealant.

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Linings

-

Inner layers

GTEC dB Board.

Various thicknesses dependant on ceiling type selected.

Face layer

GTEC dB Board.

Various thicknesses dependant on ceiling type selected.

Fasteners

GTEC Self-Tapping Drywall Screws.

Joint treatment

Insert requirements from manufacturer's literature.

System accessories

None.

Phonissimo Acoustic Hangers.

1200 mm centres, 12mm Self-Drilling Screws.

Product Reference

Siniat GTEC Mass Barrier Ceilings

Type

RCC 060: Suspended MF.

Sealer

GTEC Drywall Sealer.

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer.

For use on plasterboard prior to painting for improved whiteness and covering power.

Structure

Any suitable soffit.

(Supplied by others).

Weight

30 kg/m².

Fire performance

60 minutes.

To BS 476-23.

30 minutes.

To BS EN 1364-2.

Material:

Glass mineral wool insulation and board.
