Description

Acoustic floor/ ceiling systems, widely used in the construction of both residential and commercial sector buildings. They can be used to cover a wide range of design objectives, including aesthetic, acoustics, environmental, safety and performance requirements.

General information
Specification data
Product Reference

RAF 006: Acoustic Floor

System weight: 60 kg/m²; Fire performance: 60 minutes; Acoustic performance: 53 dB sound reduction; Impact sound insulation: 65 dB.

RAF 050: Acoustic Floor

System weight: 60 kg/m²; Fire performance: 60 minutes; Acoustic performance: 63 dB -10 Ctr sound reduction; Impact sound insulation: 54 dB.

Jointing

Insert requirement(s) from manufacturer's literature.

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Accessories

None

GTEC Resilient Bar

For RAF 050 only, 450 mm centres (maximum).

Standard product features

GTEC Intumescent Acoustic Sealant:

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Fixings:

GTEC Acoustic Floor Self Tapping Screws.

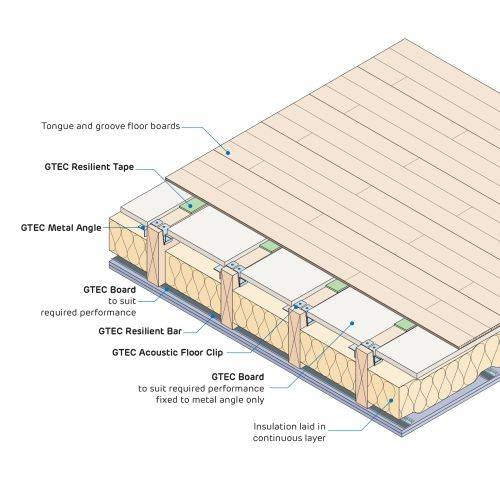

Product Options

Product reference:

- RAF 006: Acoustic Floor:

  • Ceiling inner layer: One 15 mm-thick GTEC Fire Board to joists and bridged-over insulation.
  • Ceiling outer layer: Existing lath and plaster decorative ceiling.
  • Insulation: 100 mm-thick 10.5 kg/m³ glass mineral wool (supplied by others).
  • Structure: 47 x 200 mm joists at 450 mm centres (supplied by others).
  • Flooring inner layer: One 19 mm GTEC Plank on GTEC Acoustic Floor Clips.
  • Flooring outer layer: 22 mm-thick tongued-and-grooved chipboard (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-2): 60 minutes.

- RAF 050: Acoustic Floor:

  • Ceiling inner layer: One 15 mm-thick GTEC dB Board.
  • Ceiling outer layer: One 15 mm-thick GTEC dB Board.
  • Insulation: 100 mm-thick 10.5 kg/m³ glass mineral wool (supplied by others).
  • Structure: 47 x 200 mm joists at 450 mm centres (supplied by others).
  • Flooring inner layer: One 15 mm-thick GTEC dB Board on GTEC Acoustic Floor Clips.
  • Flooring outer layer: 22 mm-thick tongue and grooved chipboard (supplied by others).
  • Fire performance (to BS 476-21 and BS EN 1365-2): 30 minutes.
