Single V3 - Pump Station
Description

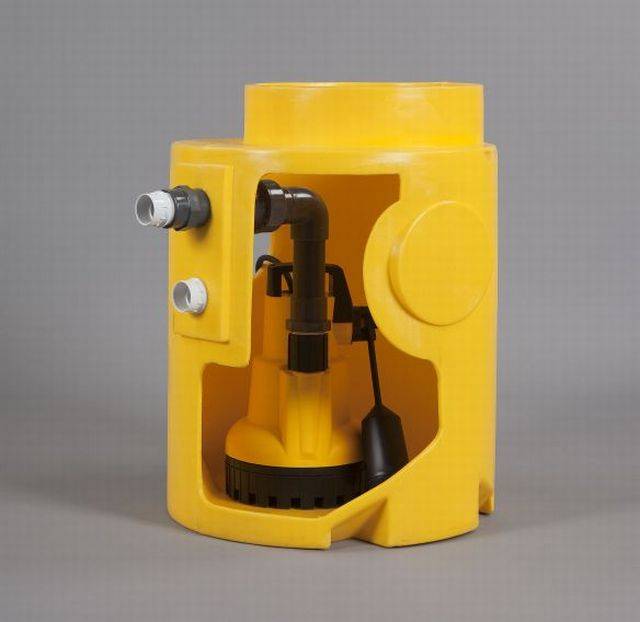

A packaged pump station designed to collect groundwater through the clear opening in the top of the chamber via a Delta cavity membrane system.

Features:

  • Designed for applications where no running water is present or expected, and is, therefore, offered for protection of the membrane only, in accordance with BS. 8102.

General information

Uniclass 2015

Pr_70_55_76_62 Private packaged pumping stationsPrimary

CAWS

J40/388 Cavity drainage sumps with integral pumps

R18/310 Private packaged pumping stations

Specification data - Private packaged pumping stations

Product Reference

Delta® Single V3 Sump

Non-return valve

Required

Not required

Accessories

High level alarm

Two 110 mm push fit inlets

Standard product features

Fittings:

  • The package comprises of one DELTA V3 pump.
  • All internal pipework is pre-assembled within the chamber including a non-return valve.
  • The delivered package only requires the connection of one union to complete all internal pipe work.

Product Options

Accessories:

  • In a basement installation where it is required to drain light wells, the Delta Single Sump can be supplied with two 110 mm push fit inlets.
  • A high level alarm is a recommended extra.
  • Delta® Power Pack: Designed to run one pump in the event of mains power failure. The power pack will pump approximately 8,100 litres on back up.

Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

8

1.3
AECOsim
-

1.0

1.0

ARCHICAD
-

1.0

1.0

Vectorworks
-

1.0

1.0

IFC

IFC2X3

8

1.3
Revit

Revit 2016

9

2.0
Download now from NBS National BIM Library
