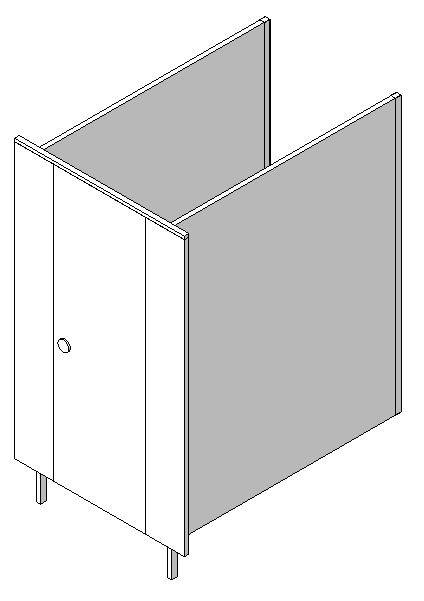

Generic single panel cubicle.
Generic panel cubicles with four basic configurations which define the door opening direction. The objects have a number of parametric values for overall size, direction of door swing, position of door, and end panel options.
Options include:
The panel cubicle is provided as a single object for use as a standalone cubicle, or for assemblies with variations in size and door swing. For simpler assemblies, see the cubicle assembly object which provides a pre-set cubicle array.
Shape | Rectangle |
SKU Code | unknown |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
![]() | - | 3 |
![]() | Revit 2017 | 3 |
