Single Leaf Lintels

Description

Single leaf lintels are manufactured from pre-galvanized mild steel to BS EN 10346: 2009 DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003). There is a minimum galvanized zinc coating of 600 g/m² on both sides.

General information

Material

Galvanized steel

To BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003).

Stainless steel

Grade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Uniclass 2015

Pr_20_85_48_11 Carbon steel lintelsPrimary

CAWS

F30/755 Prefabricated steel lintels

F30/85 Prefabricated steel lintels

Specification data - Carbon steel lintels

Product Reference

B/K- 50

For use with 50–65 mm cavities. Standard load.

B/K- 70

For use with 70–85 mm cavities Standard load.

B/K- 90

For use with 90–105 mm cavities Standard load.

RB/K- 50

For use with 50–65 mm cavities. Extra heavy duty load.

RB/K- W 70

For use with 70–85 mm cavities Extra heavy duty load.

RB/K- W 90

For use with 90–105 mm cavities Extra heavy duty load.

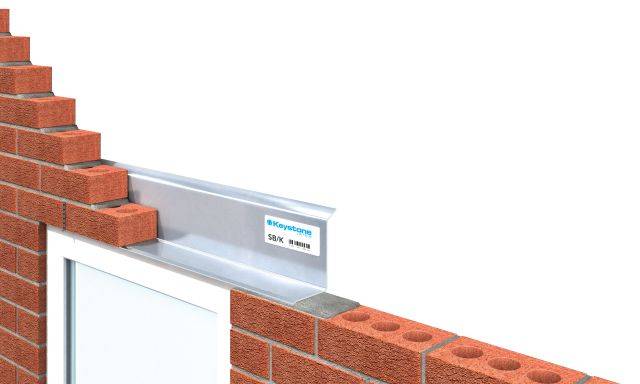

SB/K

Standard load.

SL/K

Heavy duty load.

Material

Galvanized steel

To BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003).

Stainless steel

Grade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Length

As drawing

As schedule

Product Options

Length (manufactured in 150 mm increments):

  • B/K and RB/K lintel ranges: 600–4800 mm.
  • SB/K: 600–2700 mm.
  • SL/K: 600–3000 mm.

Technical characteristics:

For Uniformly Distributed Load (UDL) figures, height and thickness of lintel ranges, consult manufacturers literature for details.

Third party certifications

  • British Board of Agrément (BBA) - certficate
