Single Glazed - With Fire Rating - Frameless Glass Partition

Verified by manufacturer 2 months ago

Lindner Group

Single glazed, frameless, demountable glass partition with fire protection.

Jump to:
020 8246 6333 Website

Application

  • Office and conference rooms.
  • Atriums, schools and fire compartments.
  • Industrial and factory areas.
  • Training and research facilities.

Description

The continuous fully-glazed partition Lindner Life Fire, with the fire protection class selection F30/EI30, provide an open and transparent feeling in the room. This is complemented by a warm natural material, such as profiles made of wood. The system is studless and the glass is butt-jointed. The system construction allows it to be installed directly on site, which grants a flexible adaptation to the spatial conditions. The installation-friendly system design provide for a quick assembly and for a complete dismantling as well.


Features and benefits:

  • Customized, project-specific solutions are possible.

General information

Color

Clear

Finish

Other

Material

Wood

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

3500 mm

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels

Unit size

-

Thickness

100 mm.

125 mm.

150 mm.

Manufacturer guidance

Wall thickness.

Partition height (nominal)

-

Manufacturer guidance

Insert requirements up to 3500 mm.

Width (nominal)

-

Manufacturer guidance

Insert requirements up to 1500 mm.

Deflection allowance (maximum)

-

Head

Up to 25 mm.

Panel partition type

Glazed.

Framing, fixing points and joints

Framless. Glass is butt-jointed.

Joint treatment

-

Type

Silicone joints.

Finish and colour

Black.

Glazed panels

-

Type

Single-glazed.

Laminated safety glass.

Manufacturer guidance

  • Mono or insulated construction.
  • Transparent fire protection gel filling.
  • Glass pane thickness 27–67 mm.

Additional features

Not required.

Glass finish - foils.

Joint width

<6 mm.

Weight

50–100 kg/m².

Connections

Floor: 54 mm.
Ceiling: 80 mm.
Wall connection: 54 mm.

Manufacturer guidance

Visual width of connection profiles.

Profile

Wood/Wood veneer.

Metal optic.

Reaction to fire classification

To EN 13501-2, EI30.

Guidance for specification option:

To DIN 4102, F30.

To EN 13501-2, EI60.

Guidance for specification option:

To DIN 4102, F60.

To EN 13501-2, EI90.

Guidance for specification option:

To DIN 4102, F90.

Sound insulation

To ISO 717-1, 41–51 dB Rw.

Sustainability data

Material

Wood

Glass

Recyclability

Most of the components can be reused/reprocessed

Expected Life

50 year

Literature

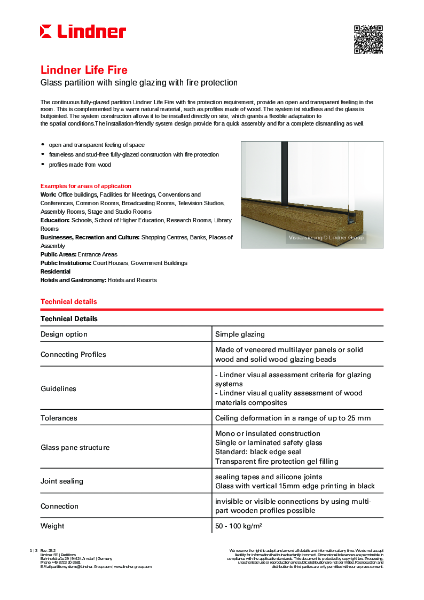

Lindner Life Fire - Data sheet
