Sineu Graff Series 9600
Description

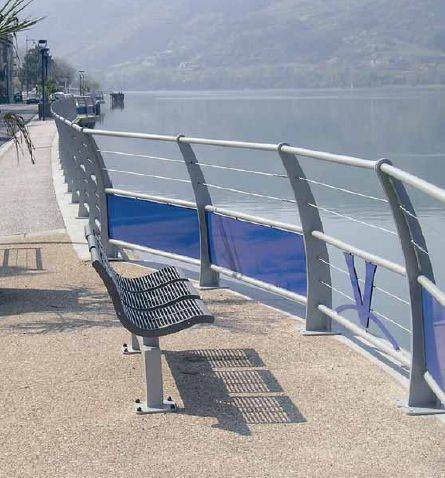

A modular design system including metal uprights secured onto fixing plates, handrail components, stainless steel railings, bunched single-strand stainless steel cable and fixing accessories.

The guardrails conform to the safety requirements of standard P 98-405 for road safety barriers.

Series 9600 guardrails use a 2 rail 6 cable system featuring a unique curved anti-climb profile. The 1196 mm uprights are available in grade 316L stainless steel as standard or zinc plated and powder coated steel on special order. The rails are available in stainless steel or powder coated steel, either highly polished or matt/ shot peened.

The cable and cable tensioners are always supplied in stainless steel.

General information
Material

Grade 316L stainless steel

Standard.

Carbon steel

Special order.

Uniclass 2015
Ss_25_15_60_56 Metal post and rail barrier systemsPrimary
CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal post and rail barrier systems
Product Reference

Sineu Graff Series 9600

Material

Grade 316L stainless steel

Standard.

Carbon steel

Special order.

Finish -
FinishType

Shot peened

Standard.

Polished

Special order.

Galvanized

Special order.

Powder coated

Special order.

Primed

Special order.

Colour

None

Standard.

Black

Special order.

Uprights -
Post base

Base plate

Root

As drawing ___

Standard product features

Infill:

2 rails, 6 cables.

Height:

1196 mm.

Post centres:

1700 mm.

Product Options

Material:

Grade 316L stainless steel is standard, also available to special order in carbon steel.

Finish:

Galvanized, primed for site painting or powder coated, polished or shot peened are available for stainless steel.

Colour:

Colours are available on request.

Uprights:

Available in either root or base plate fixing.
