Description

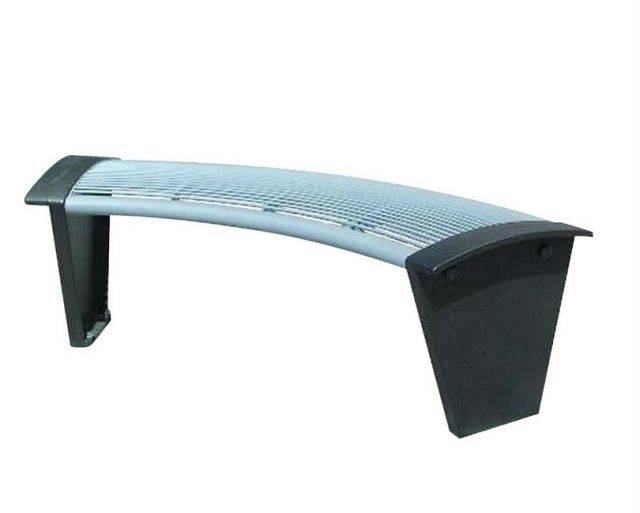

A contemporary, curved metal mesh bench, with cast iron or steel trapezoid shaped legs.

Features:

  • Seats and backrest are constructed from zinc plated and polyester powder coated steel.
  • Part of the Sineu Graff City range of seats, benches, tables and litter bins.

General information
Features

Seats and backrest are constructed from zinc plated and polyester powder coated steel

Part of the Sineu Graff City range of seats, benches, tables and litter bins

Uniclass 2015
Pr_40_50_12_07 BenchesPrimary
Specification data - Benches
Product Reference

13.0205C, Sineu Graff Rendezvous City Curved Bench

Legs

Cast iron

Steel

Colour -
Legs

RAL ___

Sable 100 Black

Sable 500 Green

Sable 650 Brown

Sable 700 Blue

Sable 900 Grey

Seat

RAL ___

Sable 100 Black

Sable 500 Green

Sable 650 Brown

Sable 700 Blue

Sable 900 Grey

As legs

Fixing

Free standing

Ground fixed

Surface mounted and secured with Type DT fixings

Surface mounted and secured with Type T fixings

Standard product features

Overall length:

  • 1484 mm.

External diameter:

  • 1535 mm.

Internal diameter:

  • 1100 mm.

Seat depth:

  • 438 mm.

Height:

  • 420 mm.

Weight:

  • 51 kg.

Product Options

Colour:

  • Available in a range of standard high gloss RAL or matt textured Sable colours: RAL 1018, Zinc Yellow/ RAL 1023, Traffic Yellow/ RAL 1028, Melon Yellow/ RAL 3000, Flame Red/ RAL 3003, Ruby Red/ RAL 3009, Oxide Red/ RAL 3020, Traffic Red/ RAL 4002, Red Violet/ RAL 4003, Heather Violet/ RAL 5002, Ultramarine Blue/ RAL 5015, Sky Blue/ RAL 5019, Capri Blue/ RAL 5021, Water Blue/ RAL 5022, Night Blue/ RAL 6004, Blue Green/ RAL 6005, Moss Green/ RAL 6009, Fir Green/ RAL 6010, Grass Green/ RAL 6012, Black Green/ RAL 6018, Yellow Green/ RAL 6019, Pastel Green/ RAL 6024, Traffic Green/ RAL 6026, Opal Green/ RAL 6028, Pine Green/ RAL 7005, Mouse Grey/ RAL 7012, Basalt Grey/ RAL 7016, Anthracite Grey/ RAL 7021, Black Grey/ RAL 7024, Graphite Grey/ RAL 8001, Ochre Brown/ RAL 9006, White Aluminium/ RAL 9007, Grey Aluminium/ RAL 9017, Traffic Black/ RAL 9010, Pure White/ RAL 9016, Traffic White.
  • Legs and seat can be different colours.

Fixing:

- Free standing:

  • Designed to be lifted in place.

- Ground (root) fixed:

  • The seat legs are designed to be situated directly into concrete.

- Surface mounting (base plate):

  • A positive bolting system should be selected by the installer based on the type and condition of the substrate, taking into account any applicable close edges and thicknesses.
  • Fixing Type DT: Bolt fixing through mounting block, which is supplied as an additional item.
  • Fixing Type T: Seat is bolted to in situ concrete.

Legs:

  • Legs are constructed from either cast iron treated against rust or zinc plated steel.
  • Both materials are polyester powder coated.
