SILENT DESIGN | Wall / Ceiling Extract Fan Series

Verified by manufacturer 4 months ago

SILENT-100 CZ DESIGN ECOWATT

S&P UK Ventilation Systems Ltd Variant:
Third party certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

Bathroom extract fans

Jump to:
BIM object icon
+44 (0)1473 276890 Website

Application

Bathrooms.

Description

Range of axial extractors with airflow rates of 85–300 m³/hour, for connection to 100–160 mm diameter circular ducting. Motor mounted on silent-elastic-blocks which absorb the vibrations and allow offering very low noise level. All the fans are manufactured from injection moulded plastic, fitted with automatic shutter and single phase 230V-50Hz, class B low consumption motor equipped with thermal overload protection. All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40ºC.


Available as CZ, CZR and CHZ models, consult literature for the different model features including pilot light, backdraft shutter and adjustable humidistat.


Features and benefits:

  • Back draft shutter.
  • Silent-blocks.
  • Quiet operation.
  • Silent 200 and 300: Interchangeable colour bars.
  • Quiet Mark (Series 100).

General information

Color

Black

Gold

Grey

Orange

Red

Show more

Material

Plastic

Shape

Square

Warranty description

Two year

Uniclass

Pr_65_67_29_05 Axial flow fansPrimary
Pr_65_67_29_23 Domestic fan units

CAWS

U90/413 Ventilation fan units

U90/413 Ventilation fan units

Specification data - Axial flow fans

Duty

-

Air volume

Up to 70 l/s.

Accessories

GSA-M0 100

Flexible aluminium ducting.

GRA-75

Aluminium exterior grille.

FIXED SHUTTER
AND TELESCOPIC
DUCT

(200 to 420 mm).

CX-80/125

Worm drive ducting clip.

PER-100W

Back draft shutter.

WINDOW KIT 100

Accessory to allow SILENT-100 in a window.

Colour

White.

Voltage

230 V.

SoundPressure

26.5 dBA.

Air flow

85 m³/hour.

Ingress protection

Class II / IP45.

Ducting

100 mm diameter.

Weight

0.65 kg.

Dimensions

188 x 188 x 129.5 mm

Series 100.

188 x 188 x 149.2 mm

Series 100 Ecowatt.

210 x 210 x 145 mm

Series 200.

247 x 247 x 179 mm

Series 300.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Quiet Mark Certification

S&P SILENT-100 DESIGN Extractor Fans

Literature

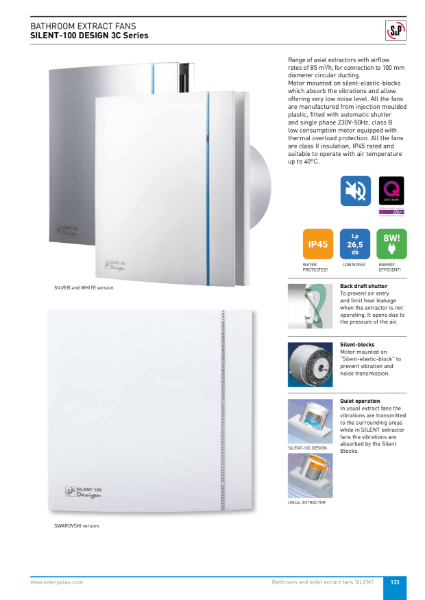

SILENT DESIGN Catalogue

SILENT DESIGN Catalogue

SILENT DESIGN | Installation, Operation & Maintenance Manual

SILENT DESIGN | Installation, Operation & Maintenance Manual
