NBS Source

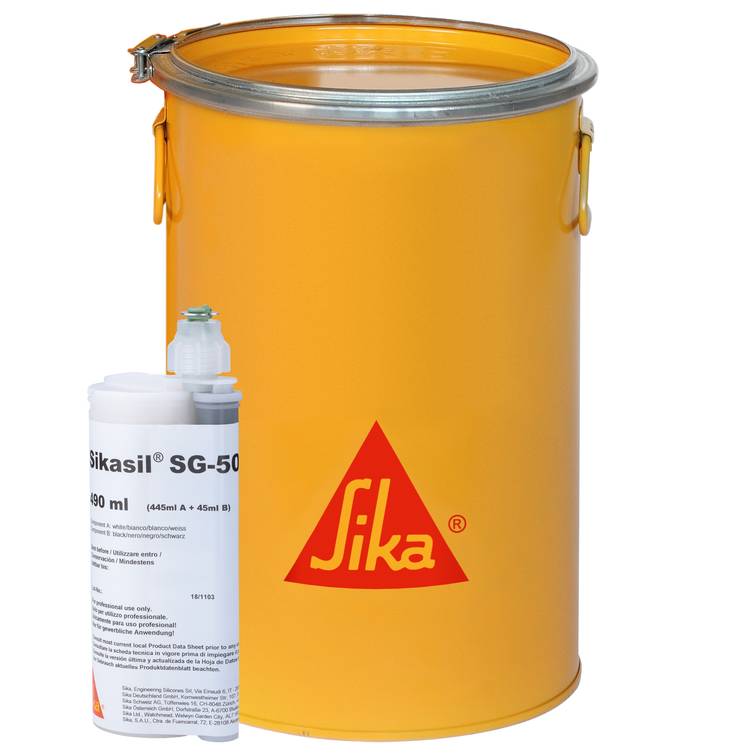

Sikasil® SG-500

Sikasil® SG-500

Verified by manufacturer 2 months ago

Sika Limited Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

High-performance, two-component silicone structural glazing adhesive, CE-marked.

Jump to:
+44 (0)1707 394444 www.sika.co.uk

Application

For professional use only. Suitable for a range of high-demanding industrial applications, including:

  • Structural glazing.
  • Bonding of solar modules.

Consult manufacturer for information regarding suitable preparation and application methods for this product.

Description

Sikasil® SG-500 is a two-component, high-modulus, neutral-curing structural silicone adhesive. It is mainly used for structural glazing applications. It complies with EOTA ETAG 002. It is a CE-marked product.


Features and benefits:

  • High mechanical strength.
  • UV, weathering and Ozone resistant.
  • Bonds well to a variety of substrates.
  • Meets requirements of EOTA ETAG 002 (carries ETA), EN 15434 and ASTM C 1184.
  • Structural sealant for use in structural sealant glazing kits according ETAG 002 Part 1 Edition November 1999 (Revised March 2012) used as EAD, ETA-03/0038 issued by Technical Assessment Body Deutsches Institut für Bautechnik, Declaration of Performance 15754339, certified by notified product certification body 0757, certificate of constancy of performance 0757-CPR-596-7110761-4-4, and provided with the CE marking.
  • Design tensile strength for dynamic loads: σdes = 0.14 MPa (ETA).
  • SNJF-VEC recognized (product code: 2433).
  • Fire rated class B1 (DIN 4102-1).


General information

Color

Black

Grey

Material

Silicone

Uniclass

Pr_30_31_76_77 Silicone construction joint sealantsPrimary

CAWS

H11/775 Bonding sealants for structural sealant/ bonded glazing

H13/750 Structural sealant joints

Product range

Sealant

Specification data - Silicone construction joint sealants

Standard

To EN 15434 and ASTM C 1184.

Third party certification

EOTA ETAG 002.

Material

2-C silicone.

Colour

Black.

Grey.

Fire performance

Fire rated to EN 11925-2/ DIN 4102-B1.

Density

~1.4 kg/L (mixed).

Shore A hardness

(CQP 023-1/ ISO 868): ~45.

TensileStrength

(CQP 036-1/ ISO 37):~ 2.2 MPa.

Elongation at break

(CQP 036-1/ ISO 37): ~300 %.

Tear resistance

Tear propagation resistance (CQP 045-1/ ISO 34): ~6.0 N/mm.

Movement

Movement capability (ASTM C 719): ±12.5 %.

Application temperature

5–40°C.

Service temperature

-40°C to +150°C.

Third party certifications

  • British Standards Institution (BSI) - certficate : Meets requirements of EN 13022 and ASTM C 1184 SNJF-VEC
  • Fire rated to EN 11925-2
  • British Standards Institution (BSI) - certficate : Meets fire retardant requirements of DIN 4102-1, class B1
  • CE-marked according to ETAG 002 : DoP's available upon request.
