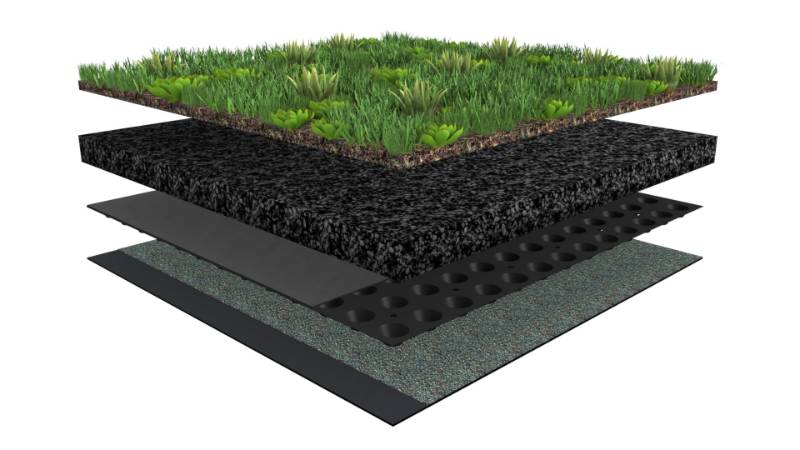

SikaShield® Hot Melt (Uninsulated Roof System with Sika® Green Roof)
Verified by manufacturer 7 months ago
BBA Agrément Certificate
Certificate type
CCPI System
Certificate type
Hot melt cold roof covering system for green roofs.
Application
Flat roofs.
Description
Hot melt cold roof covering system for green roofs. Consisting of SikaBit component products.
System components:
- Primer (Sika® Igolflex P-10 EL UK).
- Waterproofing - first layer (SikaShield® Hot Melt 50/70).
- Waterproofing - intermediate layer (SikaShield® Roof F-50).
- Waterproofing - top layer (SikaShield® Hot Melt 50/70).
- Protection layer (SikaShield® Hot Melt Root Barrier).
- Protection fleece (SikaRoof® Protection Fleece P-225 UK).
Can be finished with Sika® Extensive Green Roof System/ Sika® Bio-Diverse Roof System/ Sika® Intensive Green Roof System.
General information
Color | Black |
Finish | Textured |
Material | Bitumen |
Shape | Rectangle Guidance for specification option: Sheets supplied in rolls. Can be formed to shape of the roof. |
Uniclass | |
CAWS | J31/110 Cold deck roof coating J31/5 Cold deck roof coating |
Product range |
Specification data - Liquid-applied cold roof covering systems
Preparation | |
Horizontal work | Sika® Igolflex P-10 EL UK.Guidance for specification option: High Penetration Primer. Sika® Igolflex P-15 UK.Guidance for specification option: Bituminous primer. |
Skirtings and vertical work | Sika® Igolflex P-10 EL UK.Guidance for specification option: High Penetration Primer. Sika® Igolflex P-15 UK.Guidance for specification option: Bituminous primer. |
Liquid-applied waterproofing | |
Type | SikaBit® Hot Melt 50/70.Guidance for specification option: Monolithic rubberised bitumen membrane for roof waterproofing. |
Reinforcement | SikaBit® Roof F-50.Guidance for specification option: Hot melt reinforcing polyester fleece. |
Surface protection | SikaBit® Hot Melt 50/70.Guidance for specification option: Monolithic rubberised bitumen membrane for roof waterproofing. |
System accessories | SikaBit® Roof Insulated Outlets. |
Execution | Manufacturer guidanceIn accordance with Sika Limited specification. |
System completion | Manufacturer guidanceIn accordance with Sika Limited specification. |
Protective layer | SikaBit® E50 MG RT UK. Guidance for specification option: Specially formulated, mineral surfaced 4.8 kg/m² polyester base coated with SBS modified bituminous protection membrane. |
Protection fleece | SikaRoof® Protection Fleece P-225 UK Guidance for specification option: As required. |
Finishing surface | Sika® Extensive Green Roof System. Sika® Bio-Diverse Roof System. Sika® Intensive Green Roof System. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

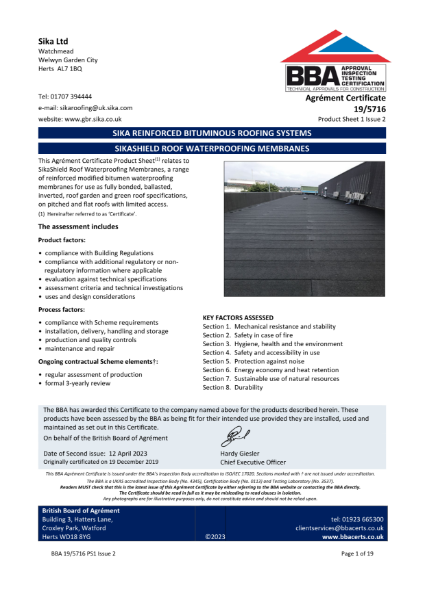

BBA Agrément Certificate
Sika Roofing SikaShield hot melt BBA
CCPI System
CCPI Hot Melt Waterproofing
Literature
Sikashield brochure 2023
Case studies

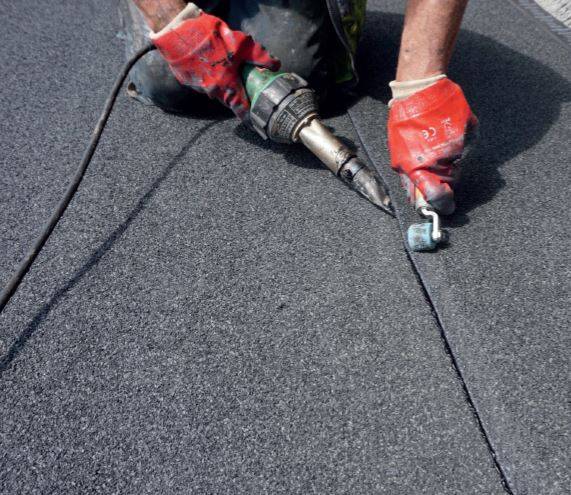

Cyns Tavern, Little Hulton in Salford

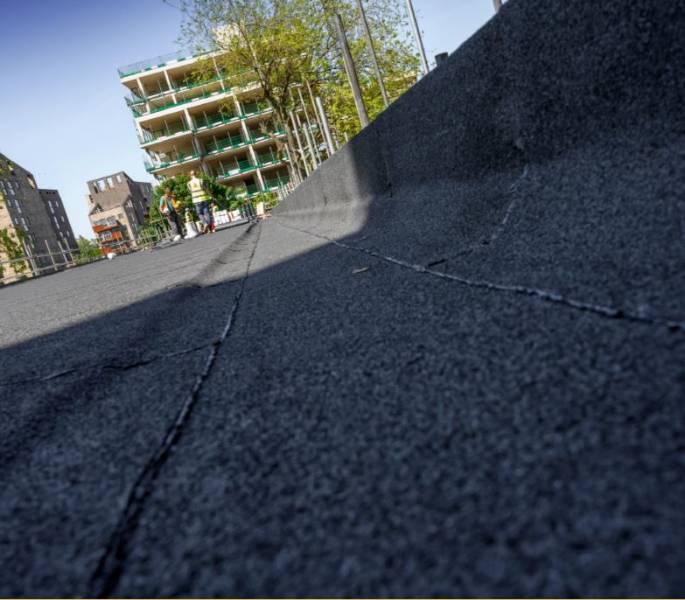

Castlemead, London Borough of Southwark

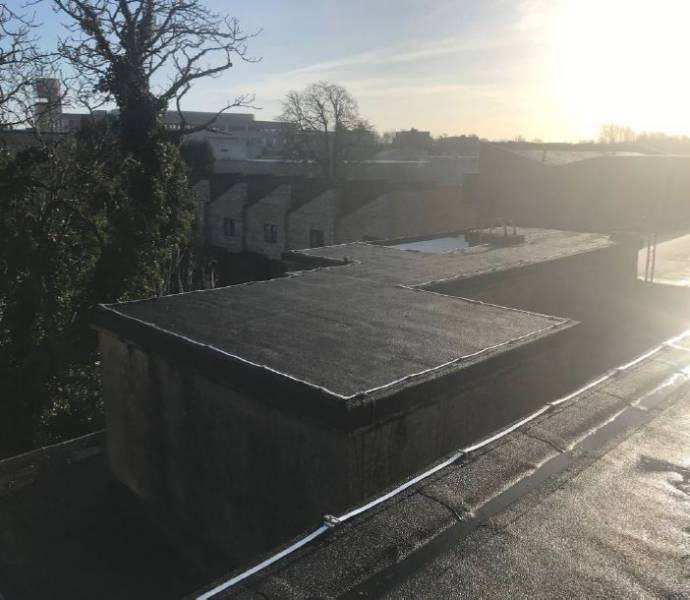

Cold War Bunkers, Cambridge

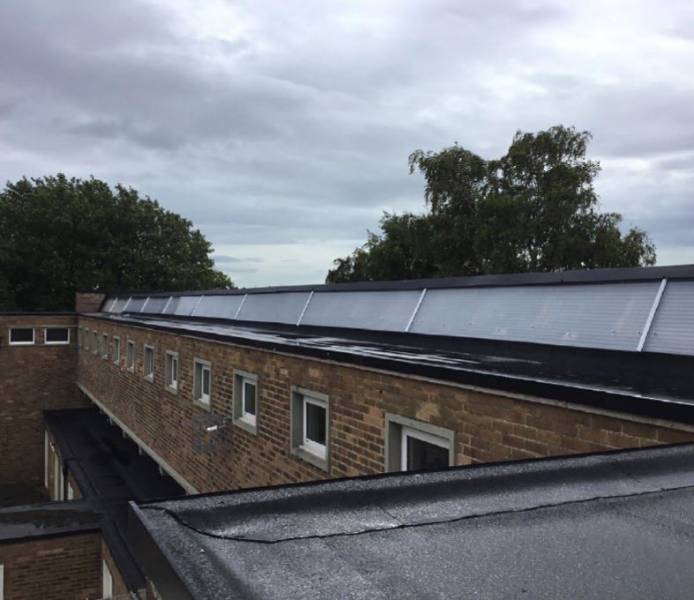

Portland Primary School
Similar products from Sika Limited
Sikafloor® MultiDur EB-14 Rapid/1 - Epoxy Floor Covering
Sikafloor® MultiDur EB-14/1 - Roller Coating Flooring System

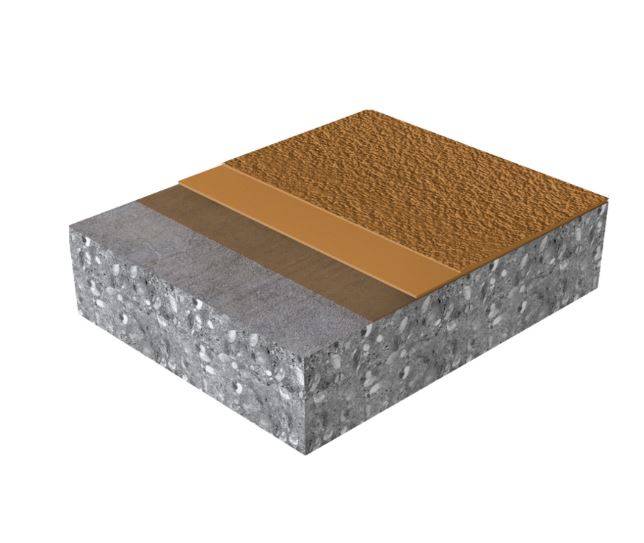

Sikafloor® Pronto® RB-28 - PMMA Based System

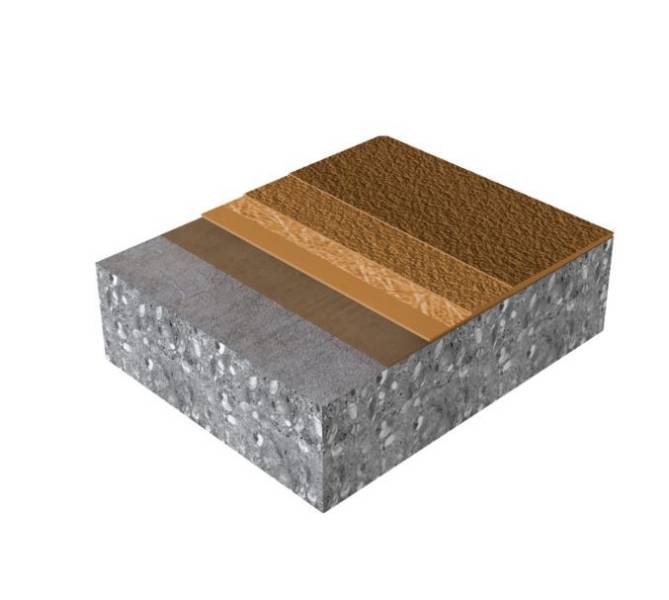

Sikafloor® Pronto® RB-58 - Chemical Type-PMMA Based
Sikalastic® OneShot PB-56 UV - Deck Membrane System

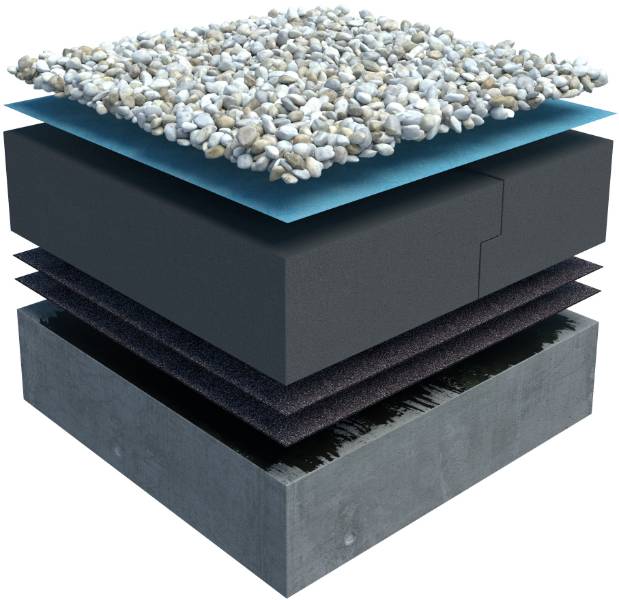

SikaShield® Hot Melt (Uninsulated Roof System with Ballast)
