SikaShield® Bituminous Membrane (Uninsulated Roof System)

Verified by manufacturer 5 months ago

Sika Limited Third party certifications:
  • CCPI System

    CCPI System

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Bitumen membrane system for uninsulated roofs.

Jump to:
BOS
+44 (0)1707 394444 Website

Application

Flat and sloping roofs.

Description

SikaShield® Pro Bitumen membrane system for cold roofs, consisting of SikaShield® component products.


System components:

  • Primer (SikaRoof® Primer-600 UK / Sika Primer 610 Spray).
  • Underlay ( SikaShield® E74 PE SA 3 mm).
  • Cap sheet (SikaShield® HB79 MG 4 mm / SikaShield® E79 MG SA 4 mm.

General information

Color

Black

Finish

Textured

Material

Bitumen

Shape

Rectangle

Length

6000 mm

Guidance for specification option:

Roll size for cap sheets.

Width

1000 mm

Uniclass

Ss_30_40_30_70 Reinforced bitumen membrane cold roof covering systemsPrimary

CAWS

J41/12 Reinforced bitumen membrane cold deck roof covering

Product range

Roofing

Specification data - Reinforced bitumen membrane cold roof covering systems

Preparation

-

Horizontal work

SikaRoof® Primer-600 UK.

Guidance for specification option:

One-part ready to use primer.

Sika® Primer 610 Spray.

Guidance for specification option:

Spray applied primer for use with sika self adhered AVCL and carrier membranes.

Skirtings and vertical work

SikaRoof® Primer-600 UK.

Guidance for specification option:

One-part ready to use primer.

Sika® Primer 610 Spray.

Guidance for specification option:

Spray applied primer for use with sika self adhered AVCL and carrier membranes.

Waterproof covering

-

First layer

-

Type

SikaBit® Pro SA-730.

Guidance for specification option:

3 mm Elastomeric Bituminous Roof Membrane, Self-Adhesive, Flexible At -25°C.

Attachment

Self adhesive.

Top layer

-

Type

SikaBit® Pro [T/SA]-940 G UK.

Guidance for specification option:

4 mm elastomeric and plastomeric bituminous hybrid roof membrane, with a mineral granule finish.

Attachment

Self adhesive.

Torch on.

Manufacturer guidance

Delete where appropriate.

Detail work

-

Flashings

-

Manufacturer guidance

In accordance with Sika Limited standard details and Technical guidance.

Skirtings and upstands

-

Manufacturer guidance

In accordance with Sika Limited standard details and Technical guidance.

Welted drips

-

Manufacturer guidance

In accordance with Sika Limited standard details and Technical guidance.

Ancillary items

SikaBit® Roof Drain.

SikaBit® Roof Lightning Conductor Clip.

SikaRoof® Light rooflights.

SikaBit® Roof Scupper.

SikaBit® Roof Overflow.

SikaBit® Roof GRP Edge Trims.

SikaBit® Pro Roof Walkway.

SikaRoof® SOTER® II Fall Protection System.

SikaRoof® Highfix.

SikaRoof® Light.

SikaPad® Paving Support Pads.

Execution

-

Manufacturer guidance

In accordance with Sika Limited specification.

System completion

-

Manufacturer guidance

In accordance with Sika Limited specification.

Sustainability data

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

CCPI System

CCPI System

CCPI System Reinforced Bituminous Membranes

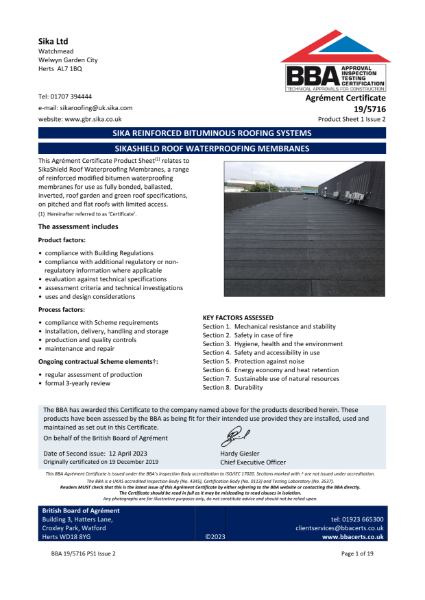

BBA Agrément Certificate

BBA Agrément Certificate

Sika Roofing SikaShield Roof Waterproofing Membranes BBA Certificate

EPD

EPD

Sika Roofing EPD Reinforced Bituminous Membranes
