SikaSeal®-627 Fire Collar+
Verified by manufacturer 25 days ago
A fire resistant prefabricated pipe collar for interior penetration sealing applications.
Application
- Restores the fire resistance performance of a wall or a floor which incorporates combustible pipes, combustible pipe insulations or conduits.
- Can be combined with Sikacryl®-621 Fire+ and SikaSeal®-626 Fire Board+.
Description

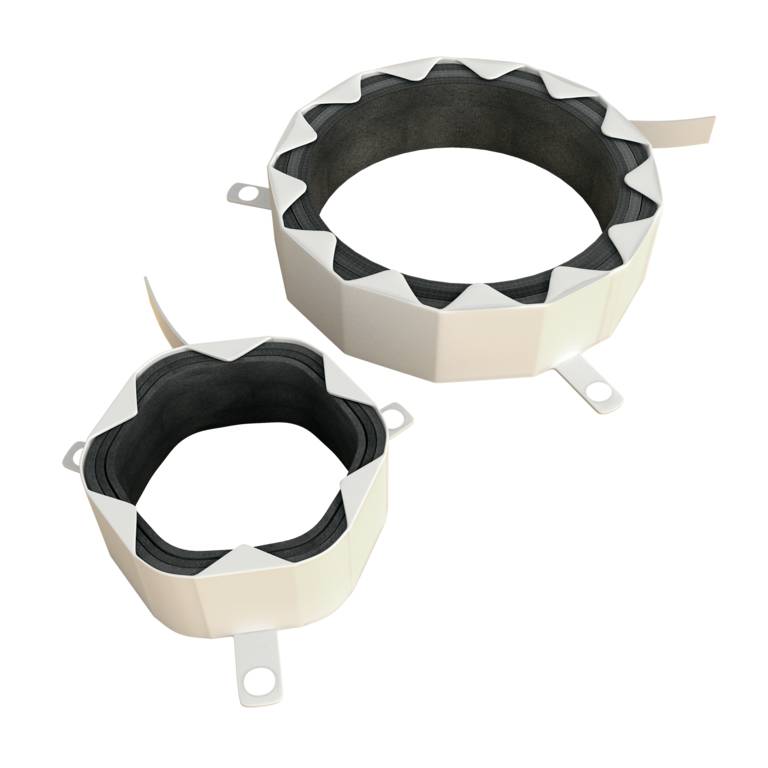

SikaSeal®-627 Fire Collar+ is a fire resistant prefabricated pipe collar consisting of a metal casing and an intumescent insert for interior penetration sealing applications. SikaSeal®-627 Fire Collar+ is designed to provide a high volume expansion and pressure seal during a fire to combustible pipes that pass through floor and wall service openings.
Features and benefits:
- Up to 4 hours fire resistance.
- Highly intumescent - volume expansion up to 17 times original size.
- Large pipe range covered.
- Tested for a large variety of relevant wall and floor types.
- CE marking and Declaration of Performance to European Technical Assessment ETA 21/1031, based on EAD 350454-00-1104:2017 - Fire stopping and fire sealing products, penetration seals.
General information
Color | White |
Material | Metal Graphite Intumescent |
Shape | Circle |
Length | 32 mm 40 mm 55 mm 63 mm 75 mm |
Width | 32 mm 40 mm 55 mm 63 mm 75 mm |
Uniclass | |
CAWS | P12/43 Pipe collar P12/370 Pipe collar |
SKU Code | 698157, 698244, 698212, 698213, 698214, 698253, 698231, 698254, 698245, 698246, 698247, 698248, 698249 |
Product range |
Specification data - Surface-mounted intumescent pipe collars
Sizes | 32 mm. 40 mm. 55 mm. 63 mm. 75 mm. 82 mm. 90 mm. 110 mm. 125 mm. 140 mm. 160 mm. 200 mm. 250 mm. Manufacturer guidanceNominal diameter. |
Fire performance | Up to 4 hours fire resistance. Guidance for specification option: Fire Resistance EN 13501-2, UL-EU, Certificate No.ULEU- 01215-CPR. Contact manufacturer for specific information. |
Service temperature | -20°C to +70°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Metal Graphite Intumescent |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
