Sikaplan® SGmA

Verified by manufacturer 6 months ago

Sikaplan® Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

PVC waterproof membrane with glass fibre reinforcement for ballasted/protected roof applications.

Jump to:
+44 (0)1707 394444 Website

Application

For use in ballast or green roof waterproofing applications

Description

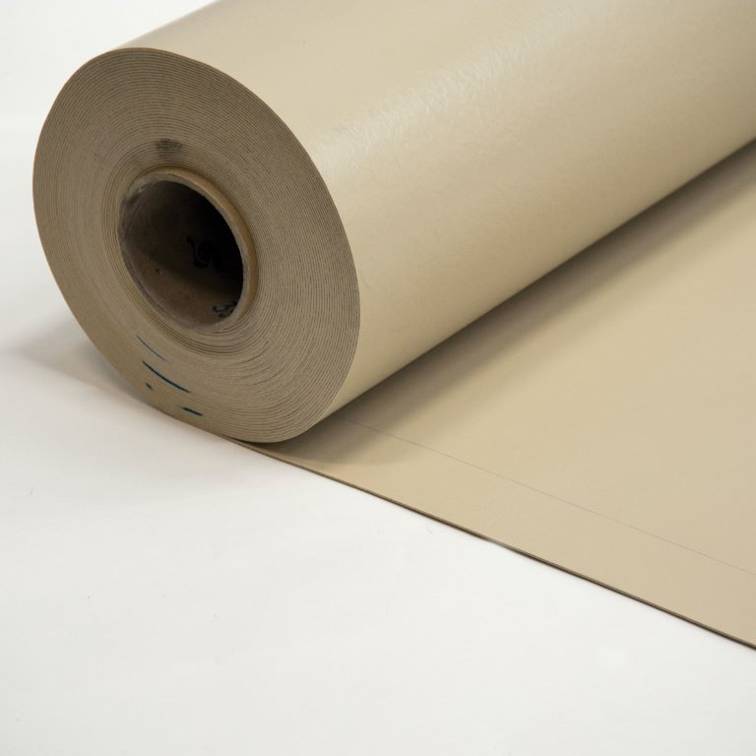

Sikaplan® SGmA is a multi-layer, synthetic roof waterproofing sheet based on premium-quality polyvinyl chloride (PVC) with inlay of glass non-woven according to EN 13956, for use in ballast or green roof waterproofing applications.


CHARACTERISTICS / ADVANTAGES


  • High dimensional stability due to glass fleece inlay
  • High water vapour permeability
  • Resistant to all common environmental influences
  • Resistant to mechanical influences
  • Resistant to micro-organisms
  • Resistant to root penetration
  • Hot air welding without use of open flames
  • Specially formulated for below grade applications, including plaza decks, planters, foundations, balconies, terraces and split slab applications.
  • Recyclable


APPROVALS / CERTIFICATES


  • Polymeric sheets for roof waterproofing according to EN 13956, certified by notified body 1213-CPD-4125 and provided with the CE marking.
  • Reaction to fire according to EN 13501-1.
  • Root penetration resistance tested according to FLL Test Procedure.
  • Official Quality Approvals and Agrement Certificates and approvals.
  • Monitoring and assessment by approved laboratories.
  • Quality Management system in accordance with EN ISO 9001/14001.
  • Production according to Responsible Care policy of Chemical Industry.

General information

Color

Beige

Guidance for specification option:

Light grey and slate grey.

Finish

Smooth

Material

PVC

Guidance for specification option:

With glass fibre reinforcement.

Shape

Rectangle

Length

15000 mm

Width

2000 mm

Height

2.0 mm

Warranty description

15 year

20 year

25 year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

J42/130 Cold deck roof covering

J42/400 Waterproof membrane

Specification data - Polymeric membranes

Material

Polyvinyl chloride (PVC).

Integral backing fleece

Not required.

Standard

To BS EN 13956.

Performance characteristics

-

Manufacturer guidance

Refer to Product Data Sheet.

Third-party certification

British Board of Agrément (BBA) certificate.

Width (minimum)

2.0 m.

Thickness (minimum)

2.0 mm.

Colour

Beige.

Accessories

Sikaplan® SG-15.

Sikaplan® G-15.

Sikaplan® D-18.

Sikaplan® Metal.

SikaRoof® PVC Welding Cord.

SikaRoof® S-Bar.

SikaRoof® C-733.

SikaRoof® Cleaner L-100.

SikaHyflex®-250 Facade.

Mass

2.5 kg/m².

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

09/4668 - Product Sheet 3
