Sikaplan® SGmA Single Ply Membrane (Warm Roof System with Ballast)
Verified by manufacturer 7 months ago
S-Vap 500E - 2.0 mm thick membrane.

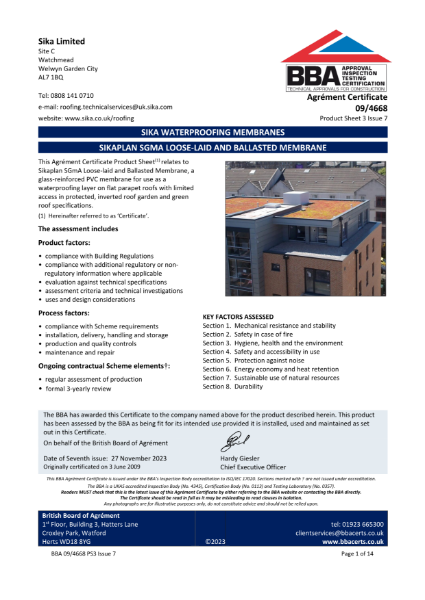

BBA Agrément Certificate
Certificate type
CCPI System
Certificate type
EPD
Certificate type

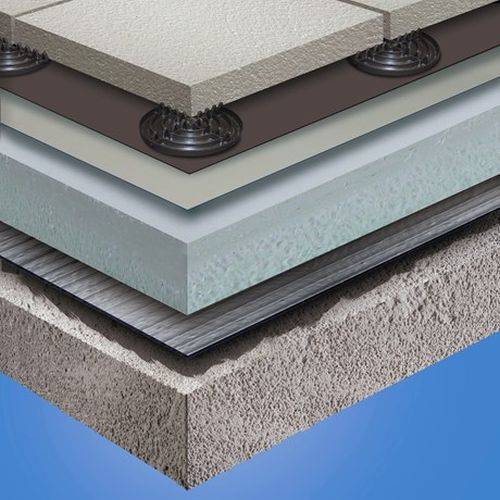

Ballasted roof system based around the Sikaplan® SGmA membrane.
Application
Warm roof system with stone ballast or paving slabs.
Description
Ballasted roof system based around the Sikaplan® SGmA membrane.
Features and benefits:
Sikaplan® SGmA is a multi-layer, synthetic roof waterproofing sheet based on premium-quality polyvinyl chloride (PVC) with inlay of glass non-woven according to EN 13956, and has the following features:
- High resistance to ageing.
- Resistant to all common environmental influences.
- High resistance to mechanical influences.
- Resistant to micro-organisms.
- High tensile strength.
- High dimensional stability.
- High water vapour permeability.
- Outstanding weldability.
- Recyclable.
General information
Color | Beige |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 20000 mm |
Width | 2000 mm |
Height | 2.0 mm |
Warranty description | 15 year 20 year 25 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Product range |
Specification data - Single layer sheet warm roof covering systems
Air and vapour control layer | |
Type | S-Vap®-500 E.Guidance for specification option: 0.15 mm thick, polyethylene based. |
Attachment | Loose laid.Guidance for specification option: With all side and end laps sealed in accordance with the Product Data Sheet. |
Insulation | |
Type | Sikatherm® PIR GT Polyisocyanurate (PIR) foam board.Sikatherm® PIR GT T Polyisocyanurate (PIR) foam board. |
Attachment | Loose laid (in accordance with Sika Limited Technical Guidance). |
Waterproof covering | |
Type | Sikaplan® SGmA-20.Guidance for specification option: A PVC membrane, with glass fibre reinforcement. |
Attachment | Loose laid (in accordance with Sika Limited Technical Guidance). |
Accessories | Sikaplan® SG-15.Sikaplan® G-15.Sikaplan® D-18.Sikaplan® Metal.SikaRoof® PVC Welding Cord.SikaRoof® S-Bar.SikaRoof® C-733.SikaRoof® Cleaner L-100.SikaHyflex®-250 Facade. |
Upper protection layer | Sikaplan® SBV 08 |
Surface protection | 50 mm thickness 20-40 mm diameter, well rounded, ovoid shaped stones/pebbles, washed free of sand and fine particles.Guidance for specification option: Supplied by others. 50 mm thickness precast concrete paving slabs. |
System accessories | SikaRoof® S-Drain.SikaRoof® S-Scupper.SikaRoof® Light.SikaRoof® Constant Force Post.SFS SOTER® II Fall Protection.SikaRoof® Solar Panel Support Anchor.SikaRoof® PVC Lightning Conductor Clip. |
Execution | Adhesive bonding of waterproof membrane. |
System completion | Completion. |
Product Reference | Sika-Trocal SGmA Ballasted Roof System S-Vap 500E |
Thickness | 2.0 mm. Manufacturer guidanceWaterproof membrane thickness. |
Colour | Beige. Manufacturer guidanceWaterproof membrane colour. |
Width | 2.0 m. Manufacturer guidanceWaterproof membrane width. |
Mass | 2.5 kg/m². Manufacturer guidanceWaterproof membrane mass. |
Thicknesses | 0.15 mm. Manufacturer guidanceVapour control layer thickness. |
Width | 5.0 m. Manufacturer guidanceVapour control layer width. |
Roll width | 1.3 m. Manufacturer guidanceVapour control layer roll width. |
Roll length | 25 m. Manufacturer guidanceVapour control layer roll length. |
Weight | 0.144 kg/m². Manufacturer guidanceVapour control layer weight. |
Colour: | White. Manufacturer guidanceVapour control layer colour. |
Sustainability data
Third party certifications
Third party certifications
Case studies
National Memorial Arboretum
