Sikagard® WallCoat WS-11 ESD - Wall Coating System

Verified by manufacturer 4 months ago

Sika Limited Third party certifications:
  • EPD

    EPD

    Certificate type

A water-based, epoxy and polyurethane combination, electrostatic discharge (ESD) wall coating system.

Jump to:
+44 (0)1707 394444 Website

Application

Resin wall coating on cementitious substrates for:

  • Electrostatic protected areas (EPA).
  • Areas requiring the lowest electrostatic charge (low BVG (Body Voltage Generation)) and dissipative surface.
  • Electronic production areas.
  • Automotive production plants.
  • Chemical production plants.
  • Laboratories.
  • Fireworks factories.
  • Pharmaceutical production areas.
  • Explosive storage and handling areas.
  • Explosive dust environments.
  • Microbiology/microchemistry production areas.
  • Telephone exchanges.
  • Workshops.
  • Computer / server rooms.
  • Interior use only.

Description

Sikagard® WallCoat WS-11 ESD is a water-based, epoxy and polyurethane combination, electrostatic discharge (ESD) wall coating system. The system is designed to dissipate electrostatic charges (ESD) and protect personnel and sensitive equipment in electrostatic protected areas (EPA).


Features and benefits:

  • Thickness ~0.3–0.5 mm.
  • Low VOC emissions top coat.
  • Easy to apply.
  • Easy to refurbish, top coat can be recoated.
  • Easy to clean.
  • Conforms to the requirements of ANSI/ESD S20.20 and IEC 61340-5-1.
  • Smooth matt surface finish.
  • CE marked.

General information

Color

Red

Blue

Green

Grey

White

Finish

Smooth

Matt

Material

Epoxy

Polyurethane

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

0.3 mm

Uniclass

Ss_40_90_60_95 Waterborne paint systemsPrimary

CAWS

M60/195 Special coating

M60/18 Special coating

M60/170 Masonry coating

Specification data - Waterborne paint systems

Initial coats

Sikagard® Wallcoat N.

Guidance for specification option:

Two part water based epoxy seal coat.

Manufacturer guidance

Water-based epoxy.

Undercoats

Sikagard® Wallcoat N plus Sika® Earthing Kit.

Guidance for specification option:

Two part water based epoxy seal coat, plus set with ten earthing points.

Manufacturer guidance

Water-based epoxy.

Finishing coats

Sikafloor®-305 W ESD.

Guidance for specification option:

Smooth matt finish.

Manufacturer guidance

Water-based polyurethane.

Colour:

RAL 1001.

RAL 3012.

RAL 5015.

RAL 6021.

RAL 7011.

Show more

Resistance

Typical Average Resistance to Ground: Rg < ~ 105–107Ω.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.0 kg CO₂ eq/unit

Third party certifications

Third party certifications

EPD

EPD

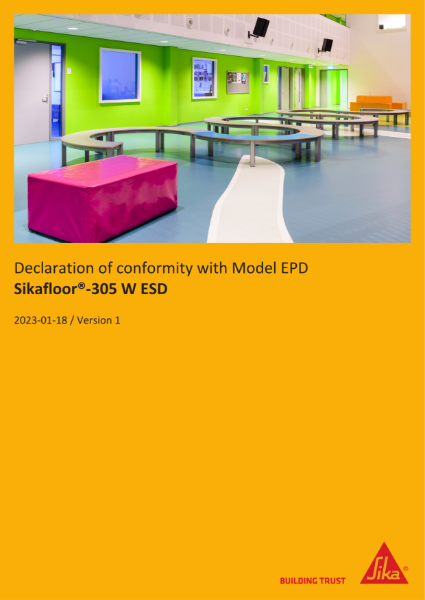

EPD - Sikafloor 305 W ESD

Literature

Product Data Sheet - Sikagard Wallcoat N

Product Data Sheet - Sikagard Wallcoat N

System Data Sheet - Sikagard Wallcoat WS-11 ESD

System Data Sheet - Sikagard Wallcoat WS-11 ESD

Product Data Sheet - Sikafloor 305W ESD

Product Data Sheet - Sikafloor 305W ESD
