Sika-Trocal SGK Composite Adhered System (Warm Roof)

Sika-Trocal SGK Composite Adhered System (Warm Roof)

Sika-Trocal

PVC waterproof system with a membrane which has a glass fibre reinforcement and polyester fleece backing for warm roofs.

Jump to:
+44 (0)1707 394444 www.sikatrocal.co.uk

Application

  • Suitable for use as a PVC waterproof system for warm roofs.
  • Not suitable for high humidity applications or under green roofs.

Description

PVC waterproof system for warm roofs.

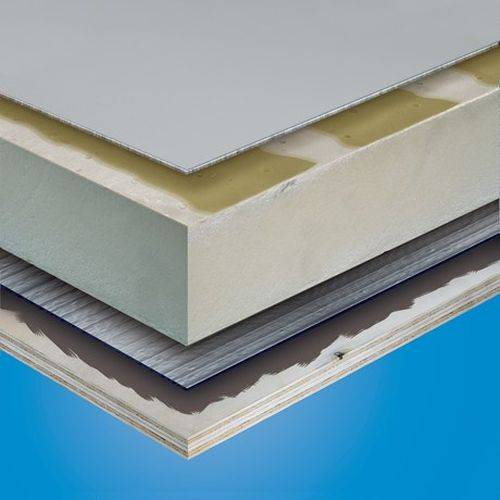

System includes:


  • Sika-Trocal® SGK waterproof membrane.
  • Sikatherm® PIR GT and MW DD insulation.
  • S-Vap 500E vapour control layer.
  • Sika-Trocal C300 Adhesive or SikaRoof® Adhesive 400 Spray.


Waterproof membrane:

A glass fibre reinforced PVC membrane with fleece backing to the underside, for use in adhered single-ply waterproof systems and designed to be fully adhered to suitable substrates using Sika C300 polyurethane adhesive. Laps are sealed with THF welding agent, with hot air sealing used at details.

Suitable for pitched, flat and curved roofs, the membrane is highly resistant to ageing and industrial pollutants and requires no surface treatment or maintenance throughout its service life.


Vapour control layer:

A 0.15 mm thick, low density polyethylene vapour control layer that is flexible when cold, resistant to chemicals and ageing and rot proof. It is suitable for use in most mechanically fastened systems using the Sika-Trocal membranes.

General information

Color

Grey

Light grey and slate grey.

Material

PVC

Waterproof membrane - A PVC membrane, with glass fibre reinforcement and a fleece backing to the underside.

Polyethylene

Vapour control layer.

Polyisocyanurate

Insulation foam board.

Uniclass 2015

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Product range

Adhered Roofs

Specification data - Single layer sheet warm roof covering systems Enhanced data

Air and vapour control layer

-

Type

S-Vap 5000E SA.

S-Vap 500E.

SikaBit® VB SA-724.

Attachment

Loose laid.

Self adhesive.

Insulation

-

Type

Sikatherm® MW DD Tapered.

Sikatherm® MW DD.

Sikatherm® PIR GT Tapered.

Sikatherm® PIR GT.

Attachment

SikaRoof® SF-T-75 insulation tube and appropriate SikaRoof® fasteners.

Waterproof covering

-

Type

Sika-Trocal SGK.

Sika-Trocal SGK: PVC membrane, with glass fibre reinforcement and a fleece backing to the underside.

Attachment

SikaRoof® C300.

SikaRoof® Adhesive 400 Spray.

Product Reference

Sika-Trocal SGK Composite Adhered System (Warm Roof)

Width

Waterproof membrane width.

2 m.

Thickness

Waterproof membrane thickness.

1.2 mm.

1.5 mm.

Mass

Waterproof membrane mass.

2.1 kg/m².

Thickness

Vapour control layer thickness.

0.15 mm.

S-Vap 500E.

2.4 mm

SikaBit® VB SA-724.

0.60 mm

S-Vap 5000E SA.

Roll width

Vapour control layer roll width.

5 m.

S-Vap 500E.

1 m.

SikaBit® VB SA-724.

1.08 m.

S-Vap 5000E SA.

Roll length

Vapour control layer roll length.

25 m.

S-Vap 500E.

10 m.

SikaBit® VB SA-724.

30 m.

S-Vap 5000E SA.

Weight

Vapour control layer weight.

0.144 kg/m².

S-Vap 500E.

3 kg/m².

SikaBit® VB SA-724.

Colour:

Vapour control layer white.

Varies subject to AVCL selected.

Water vapour resistance

Varies subject to AVCL selected.

S-Vap 500E.
