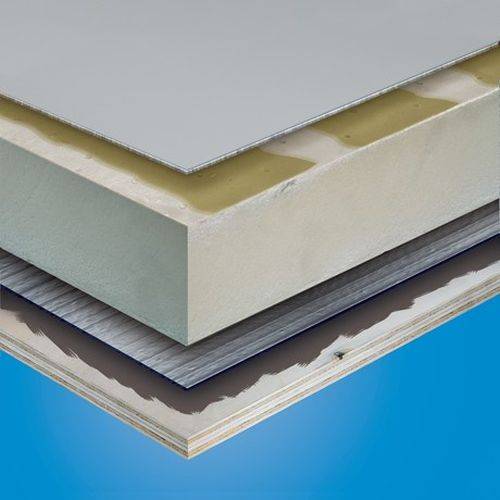

Sika-Trocal SGK Adhered Roof System S-Vap 5000E SA

Sika-Trocal SGK Adhered Roof System S-Vap 5000E SA

Sika-Trocal

PVC waterproof system with a membrane which has a glass fibre reinforcement and polyester fleece backing for warm roofs.

Jump to:
+44 (0)1707 394444 www.sikatrocal.co.uk

Application

  • Suitable for use as a PVC waterproof system for warm roofs.
  • Can be used as a temporary waterproof layer for up to four weeks, in strict accordance with the product data sheet.

Description

PVC waterproof system for warm roofs.


System includes:

  • Sika-Trocal® SGK waterproof membrane.
  • Sikatherm® PIR GT and Sikatherm® MW DD insulation.
  • S-Vap 5000E SA vapour control layer.
  • Sika-Trocal C300 Adhesive or SikaRoof® Adhesive 400 Spray.


Waterproof membrane:

A glass fibre reinforced PVC membrane with fleece backing to the underside for use in adhered single-ply waterproof systems, designed to be fully adhered to suitable substrates using Sika C300 polyurethane adhesive. Laps are sealed with THF welding agent, with hot air sealing used at details.

Suitable for pitched, flat and curved roofs, the membrane is highly resistant to ageing and industrial pollutants and requires no surface treatment or maintenance throughout its service life.


Vapour control layer:

A 0.60 mm thick, high-performance, self-adhesive polymer modified bitumen vapour control layer, with glass fibre reinforcement and aluminium foil top layer. Suitable for use in high humidity environments, green roofing systems, loose-laid ballasted warm roof systems and all adhered and mechanically fastened systems. Water vapour resistance: >9000 MNs/g. S-Vap 5000E SA may be used in combination with Sika® Primer 610/ SikaRoof® Primer 600UK where applicable.

General information

Color

Grey

Light grey and slate grey.

Material

PVC

Waterproof membrane: PVC membrane, with glass fibre reinforcement.

Polyisocyanurate

Insulation foam board.

Bitumen

Vapour control layer: polymer modified bitumen.

Uniclass 2015

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Product range

Adhered Roofs

Specification data - Single layer sheet warm roof covering systems Enhanced data

Preparation

-

Horizontal work

Primer 600.

Primer 610.

Air and vapour control layer

-

Type

S-Vap 5000E SA.

SikaBit VB SA-724.

Attachment

Self-adhesive.

Insulation

-

Type

Sikatherm® MW DD Tapered.

Sikatherm® MW DD.

Sikatherm® PIR GT Tapered.

Sikatherm® PIR GT.

Attachment

C-250.

SikaRoof Adhesive 200.

Waterproof covering

-

Type

Sika-Trocal® SGK.

PVC membrane, with glass fibre reinforcement and a fleece backing to the underside.

Attachment

C-300.

Adhesive 400 Spray.

System accessories

Not required.

Sika-Trocal PU Insulation adhesive.

Adhesive bonding of waterproof membrane.

Sika-Trocal C300 PU membrane adhesive.

One-component polyurethane based adhesive curing by humidity for partial bonding of SGK membranes.

Sika-Trocal metal.

0.6 mm thick galvanized steel coated on the upper side with 0.8 mm thick layer of plasticized PVC. Coloured to match the waterproof membrane. Used to produce perimeter flashings, connections and fixings.

Sika-Trocal Primer 600.

For use with S-Vap 5000E SA VCL.

Sika-Trocal S membrane.

Used for detailing work.

Sika-Trocal SG membrane.

Sika-Trocal C200 PU Insulation adhesive.

Polyurethane based humidity-hardening one pack adhesive used to bond certain insulation boards on specific surfaces.

Sika-Trocal SG.

Used for detailing work.

Execution

Adhesive bonding of waterproof membrane.

System completion

Completion.

Product Reference

Sika-Trocal SGK Adhered Roof System S-Vap 5000E SA

Width

Waterproof membrane width.

2 m.

Thickness

Waterproof membrane thickness.

1.2 mm.

1.5 mm.

Mass

Waterproof membrane mass.

2.1 kg/m².

Thickness

Vapour control layer thickness.

0.60 mm.

Width

Vapour control layer width.

1.08 m.

Roll width

Vapour control layer roll width.

1.38 mm.

Roll length

Vapour control layer roll length.

30 m.

Weight

Vapour control layer weight.

0.7 kg/m².

Colour:

Vapour control layer colour.

Grey metallic.

Water vapour resistance

Vapour control layer.

>9000 MNs/g.
