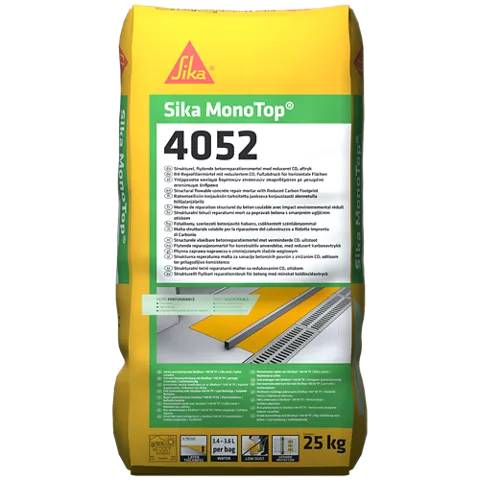

Sika MonoTop®-4052 - Fibre-Reinforced Concrete Repair Mortar
Verified by manufacturer 1 day ago
High-performance structural concrete repair mortar and screed with improved sustainability, designed for horizontal surfaces
Application
Used to repair all types of reinforced concrete structures and components for:
- Buildings.
- Car park decks.
- Civil engineering structures.
- Dams and bridges.
- Marine structures.
Used for:
- Restoration work (Principle 3, method 3.1 and 3.3 of EN 1504-9). Repair of spalling and damaged concrete in infrastructure and superstructure works.
- Structural strengthening (Principle 4, method 4.4 of EN 1504-9). Increasing the bearing capacity of the concrete structure by adding mortar.
- Preserving or restoring passivity (Principle 7, method 7.1 and 7.2 of EN 1504-9). Increasing cover with additional mortar and replacing contaminated or carbonated concrete.
Description
Sika MonoTop®-4052 is a one-part, cementitious, fibre-reinforced concrete repair mortar and screed. It contains recycled supplementary cementitious materials and can therefore contribute to reducing the carbon footprint of the application.
Features and benefits:
- Uses recycled raw materials.
- Layer thickness 6 to 120 mm.
- Low drying shrinkage and very low sensitivity to cracking (can be applied up to 300 m² without joints).
- Sulphate-resistant.
- Suitable for internal and external applications.
- Contains corrosion inhibitors.
- Compatible with cathodic protection systems.
- Application by hand, or by machine.
- Easy to apply - effortlessly levels when worked, ideal pot life and smooth finishing.
- High abrasion resistance (when used with Sikafloor®-140 W Troweling Primer).
- Dust-reduced for cleaner, healthier environment.
- Good resistance to sea water.
- Low permeability.
- Excellent freeze-thaw resistance.
- EuroClass A1 reaction to fire rating.
- Class R4 to EN 1504-3.
- Class CT-C60-F8-A9 of EN 13813.
- Early trowelling after three hours at +20°C.
- Overcoatable with epoxy after only 24 hours (when Sikafloor®-140 W Troweling Primer is used and the product is maintained at >+10°C).
- Can be trafficked directly when installed with Sikafloor®-140 W Troweling Primer (it is recommended that the surface is sealed with a Product from the Sikafloor® ProSeal Range to prevent staining, which can also act as a curing agent if not overcoating).
Environmental information:
- Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Material Ingredients under LEED® v4.
- Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Sourcing of Raw Materials under LEED® v4.
- Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by Institut für Bauen und Umwelt e.V. (IBU).
- VOC emission classification GEV EMICODE EC1PLUS.
Approvals/ standards:
- CE marking and declaration of performance based on EN 13813 Screed material and floor screeds — Screed material — Properties and requirements — Cementitious screed material.
- CE marking and declaration of performance based on EN 1504-3 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair.
- CE marking and declaration of performance based on EN 1504-7 Products and systems for the protection and repair of concrete structures — Reinforcement corrosion protection.
General information
Color | Grey |
Finish | Cement |
Material | Cementitious Aggregate |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | C42/310 Repair mortar |
Specification data - Concrete repair mortars
Classification data | |
Standard | To EN 1504-3, EN 1504-3 and EN 13813. |
Mortar type | Cement-based, fibre-reinforced. |
Performance requirement class | R4. |
Layer thickness | Guidance for specification option: Insert requirements, 6–120 mm. |
Colour | Light grey. |
Chloride Ion content | To EN 1015-17, <0.05%. |
Compressive strength | To EN 12190, ~35 MPa (cured 24 hours at +21°C); ~55 MPa (cured 7 days at +21°C); ~60 MPa (cured 28 days at +21°C). |
Modulus of elasticity | To EN 13412, ≥20 GPa (in compression; cured 28 days at +21°C). |
Flexural strength | To 196-1, ~6 MPa (conditioned 24 hours at +20°C); ~7 MPa (conditioned 7 days at +20°C); ~8 MPa (conditioned 28 days at +20°C). |
Tensile Adhesion | To EN 1542, ≥2.0 MPa. |
Shrinkage | To EN 12617-4, 600 µm/m (cured at +20°C and 60% relative humidity at 28 days). |
Coefficient of thermal expansion | To EN 1770, alpha = 3.2 x 10E-5 1/K. |
Thermal compatibility | To EN 13687-1, ≥2.0 MPa (Part 1 - Freeze-Thaw). |
Capillary absorption | To EN 13057, ≤0.15 kg/m²·√h. |
Density | Fresh mortar density: ~2.2 kg/L. |
Reaction to fire | To EN 13501-1, EuroClass A1. |
Technical characteristics, other | Electrical resistivity to ISO 12696, tested at 60% relative humidity: <20 kΩ·cm; tested at 100% relative humidity: <40 kΩ·cm. Carbonation resistance to EN 13295, dk ≤ control concrete MC (0.45). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cementitious Aggregate |
Literature
Sika MonoTop®-4052 - Product Data Sheet
