SIGnature Underlay25 (Torch On)
Verified by manufacturer 2 days ago
BBA Agrément Certificate
Certificate type
A fully bonded torch-applied, polyester reinforced, SBS modified bitumen underlay. It has an upper surface finish of sand and a thermo-fusible film on the underside.
Application
- For use in torch-on bitumen roofing systems.
- Suitable surfaces: Torch receivable insulation and prepared approved building boards.
Description
A fully bonded torch-applied, polyester reinforced, SBS modified bitumen underlay. It has an upper surface finish of sand and a thermo-fusible film on the underside.
Features and benefits:
- Can be considered for overlaying existing bitumen roofing.
- Polyester reinforced carrier.
- Sanded finish provides surface texture for adhesion of the preceding torch-applied cap sheet.
- SBS modification – flexibility maintained under ambient temperature fluctuations.
- When used in conjunction with the SIGnature SBS Torch On Cap Sheet, the SIGnature Torch On system will qualify for a 25-year warranty (terms and conditions apply).
General information
Color | Black |
Finish | Sanded |
Material | Bitumen |
Shape | Rectangle |
Length | 12000 mm |
Width | 1000 mm |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | J41/12 Reinforced bitumen membrane cold deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering |
SKU Code | 10401171 |
Specification data - Reinforced bitumen roofing sheets
Classification data | |
Standard | To BS EN 13707. |
Third-party certification | British Board of Agrément (BBA) Certificate. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elastomeric. |
Weight (minimum) | 3.167 kg/m². |
Surface finish | |
Top | Sanded. |
Underside | Thermo-fusible film. |
Colour | Black. |
Reaction to fire | NPD. |
Tensile strength | 450/ 350 N/50mm. Guidance for specification option: Length/ width. |
Resistance to tearing | 150 N/ 200 N. Guidance for specification option: Length/ width. |
Elongation | 15/ 25%. Guidance for specification option: Length/ width. |
Sustainability data
Material | Bitumen |
Product certifications

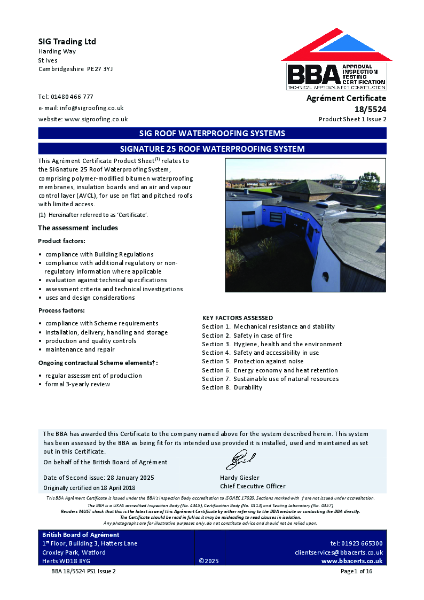

BBA Agrément Certificate
SIGnature 25 Roof Waterproofing System BBA
Literature
Literature type

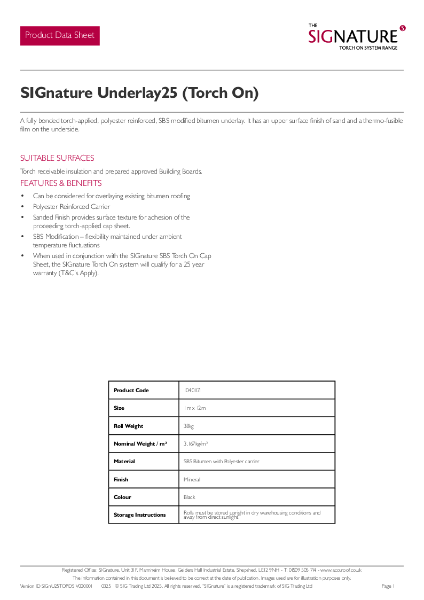

SIGnature-Underlay25-Torch-On-PDS

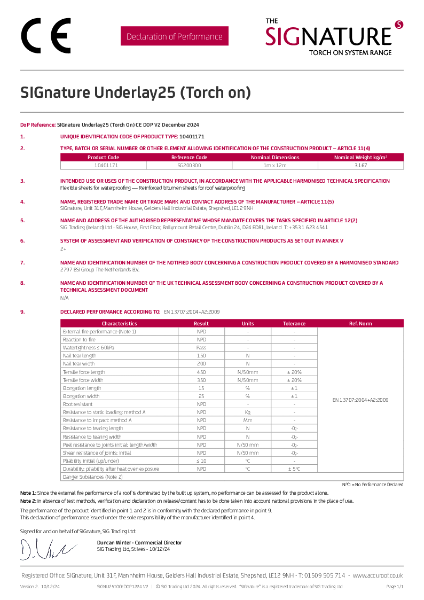

SIGnature-Underlay25-Torch-On-CE-DOP

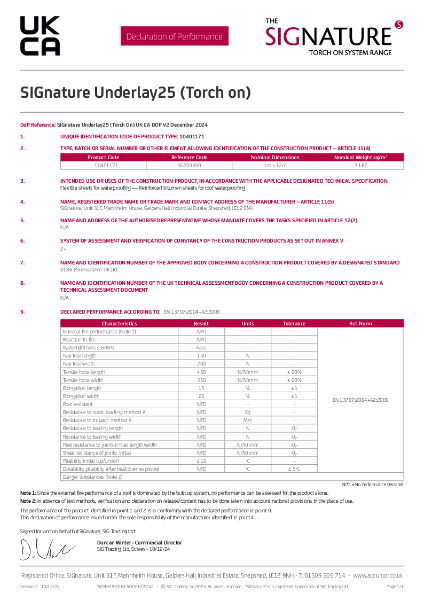

SIGnature-Underlay25-Torch-On-UK-CA-DOP
Case studies

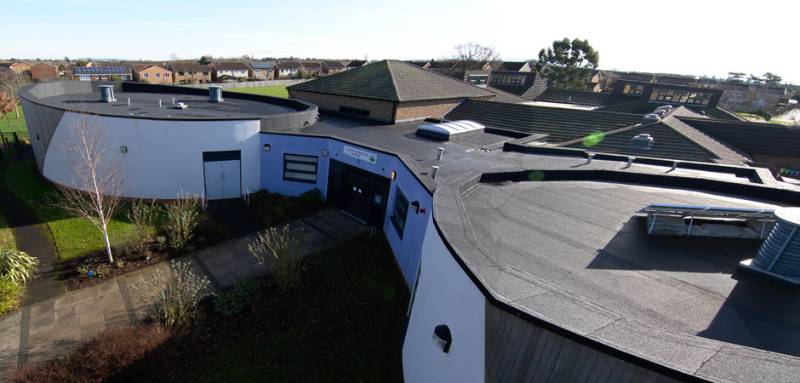

SIGnature Torch On System - Layfield School

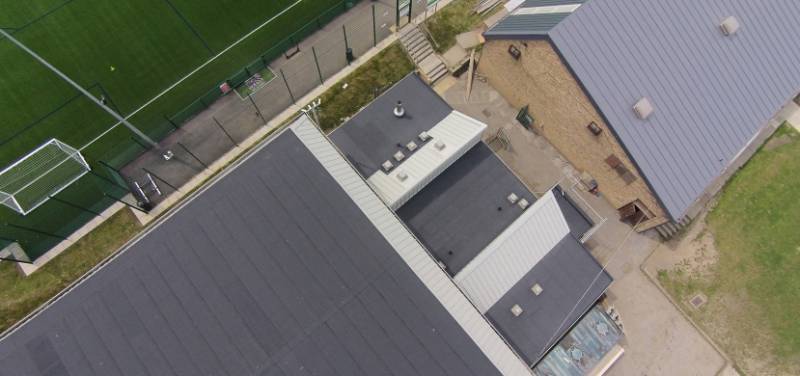

SIGnature Torch On System - St John's School
