Patterned nylon low-level loop pile carpet tile, for general public and private sector areas, retail shops, student residences, domestic areas, care homes, offices and stairways. Suitable for castor chair use. For laying broadloom, tessellated or brick-bond.

Features and benefits:

  • Available in five colours.
  • Hard wearing.
  • Easy to maintain and clean.
  • Can be laid on its own or combined with Microloop as an accent or border tile.
  • CE marked to BS EN 14041.

All aspects of sub-floor preparation and flooring installation must be carried out in accordance with BS 5325: 2001.

Light reflectance values available on request; consult manufacturer for details.

General information

500 x 500 mm

Uniclass 2015
Pr_35_57_11_57 Needled pile carpet tilesPrimary
Specification data - Needled pile carpet tiles
Product Reference

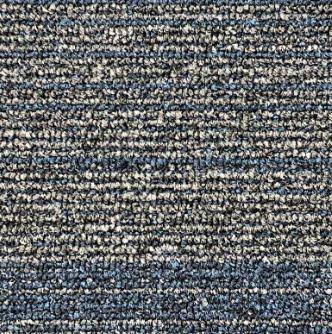

Signal Carpet Tile


Signal Blue

Signal Beige

Signal Green

Signal Grey

Signal Indigo

Standard product features


500 x 500 mm.

Fibre type:

100% solution dyed nylon.

Backing material:

  • Primary: 100% non-woven polyester.
  • Secondary: Modified bitumen, with reinforcing glass fibre.

Fibre weight (±10%):

520 g/m².

Total tile weight (±10%):

3610 g/m².

Total thickness (±10%):

5 mm.

Technical characteristics:

  • Use classification (to EN 1307): Class 33, heavy commercial/ contract.
  • Gauge: 1/12th.
  • Thermal resistance: 0.034 m²/kW.
  • Impact sound insulation: 33 dB.
  • Sound absorption: 0.16 at 1.00 Hz.
  • Antistatic value: <2 kV.
  • Tog rating: 0.39.
  • Castor chair rating: ≥2.4.
  • Light fastness: ≥2.46.
  • Hot metal nut test (to BS 4790): Low radius of ignition.
  • Flammability (to BS EN 13501-1): Cfl-s1.

Third party certifications
  • Certificate: A+
  • CRI: Green Label Plus
