Siderise Open State Cassette Insert OSCI
Verified by manufacturer 2 months ago
OSCI 1220-100-40 (Vertical or Horizontal)
OSCI 1220-100-40 (Vertical or Horizontal)
Siderise OSCI Open State Cassette Insert designed for use in cassette panel cladding. Siderise OSCI Open State Cassette Insert are used horizontally or vertically as part of a cladding system.
Application
Siderise Open State Cassette Inserts (OSCI) are designed for use in Cassette Panel Cladding Systems.
Siderise Open State Cassette Inserts (OSCI) can be used both horizontally and vertically as part of a rainscreen cladding system. They are applied directly to the internal surface of the cassette panel to simplify the detailing and installation of adjacent cavity barriers and/or to ensure that the ventilation air gap is dimensioned within permissible limits.
Siderise Open State Cassette Inserts are positioned parallel and aligned centrally to Siderise 'RH' or 'RV' Cavity Barriers, taking into account the specification of the cladding system assembly. Typically, this requires consideration of the specification and configuration of the cladding panels, the positioning of the support rails or similar steelwork, and/or hook-on or bracket arrangements for panel support.
Siderise Open State Cassette Inserts (OSCI) should not be used in conjunction with cavity barriers from another manufacturer or type.
Description
Siderise Open State Cassette Inserts (OSCI) are designed for use in cassette panel cladding systems.
OSCI can be used both horizontally and vertically as part of a rainscreen cladding system. They are applied directly to the internal surface of the cassette panel to simplify the detailing and installation of adjacent cavity barriers and/ or to ensure that the ventilation air gap is dimensioned within permissible limits.
Features and benefits:
- Tested in multiple BS 8414 & NFPA 285 System Tests.
- Can be used in combination with either RH25 or RH50 (horizontal), or RV (vertical) cavity barriers.
- Range of thicknesses and widths to accommodate a wide array of Cassette Panel Cladding Systems.
- Classified A2-s1, d0 to BS EN 13501-1:2018.
General information
Color | Silver Brown Yellow Green Manufacturer guidanceSolid, green-brown exposed edges with silver aluminium on both facings. |
Finish | Foil |
Material | Stonewool |
Shape | Rectangle |
Length | 1220 mm |
Width | 100 mm 115 mm 125 mm 145 mm 175 mm |
Height | 40 mm 45 mm 60 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | H92/776 Thermal insulation P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts |
SKU Code | OSCI |
Product range |
Specification data - Mineral wool slab insulation
Classification data | |
Manufacturer | Siderise. |
Thickness | 40 mm. Guidance for specification option: The thickness of the OSCI can be variable with a minimum thickness of 21 mm. Standard thicknesses of 40, 50 and 60 mm. Other OSCI thicknesses are available. Consult manufacturer for more details. Manufacturer guidanceThickness/ depth. |
Facing | Aluminium foil to both sides. Guidance for specification option: Additionally one side has a high performance modified acrylic pressure-sensitive adhesive with strippable film. |
Edges | Square. |
Density | 110 kg/m³. Manufacturer guidanceNominal density. |
Thermal conductivity (maximum) | 0.043 W/m·K. |
Fire performance | To EN 13501-1, Class A2-s1, d0. |
Type | Semi-rigid. |
Configuration | Vertical or horizontal. |
Accessories | Not required. Siderise RFT 120/45 tape. |
Size (length x width): | 1220 x 100 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stonewool |
Recyclability | Recyclable Guidance for specification option: Stonewool core is recyclable. |
Expected Life | 60 year Guidance for specification option: Only when used in combination with Siderise Cavity Barriers for Rainscreen Cladding but particular attention must be applied to the fixing system as detailed below: • Keeping the product dry during both storage and installation • Following the method of attaching the system detailed in our installation instructions • Ensuring that the top and bottom of the ‘OSCI’ is sealed with lengths of Siderise RFT120 aluminium jointing tape to ensure a weather tight seal • If appropriate to the project system and panel construction, use additional mechanical retention |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 3 |
Literature

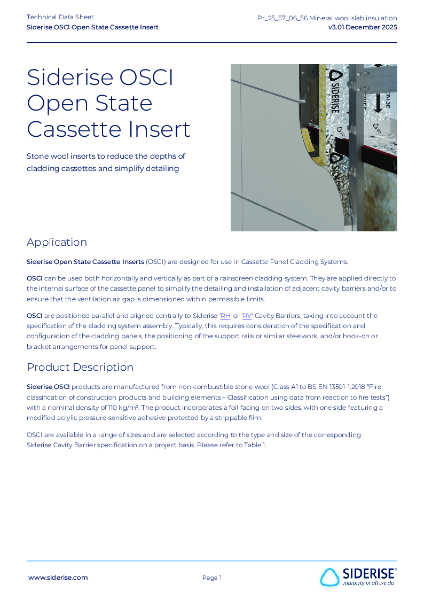

Siderise OSCI Technical Data Sheet v2.03
