Siderise FLX Flexible Acoustic Barriers for Suspended Ceilings - Flexible Composite Quilts
Verified by manufacturer 5 months ago
Siderise FLX acoustic barriers are flexible composite quilts designed for free-hanging in ceiling voids above partition lines. Developed to improve 'room to room' sound separation.
Application
Suitable for free-hanging in ceiling voids above partition lines. Specifically developed to provide a simple solution to improving 'room to room' sound separation via a common ceiling void.
Suitable for both new build and refurbishment projects.
Description
Siderise FLX is a multi-layered composite material. The central layer is a thin flexible heavy septum membrane. The membrane is a polymeric heavy salt-loaded barrier with an ‘anti-creep’ layer to prevent possible long-term elongation of the product in its normal free hanging condition. It additionally provides reinforcement to through penetrations at fixing points. To each side of the membrane there is an open cell acoustic foam insulation layer.
Siderise FLX is supplied with foam finish as standard or with the optional feature of reinforced aluminium foil finish to one side. This facing simplifies the sealing of service penetrations as it permits the application of self-adhesive foil tapes.
Features and benefits:
- Acoustic performance (Rw) 27 dB
- Improves ‘room to room’ sound separation.
- Flexible allowing for ease of installation.
- Suitable for new build and refurbishment projects.
- Reaction to Fire classification - C-s2,d0
General information
Color | Black Silver |
Finish | Matt |
Material | Polyurethane Polymeric Foam |
Shape | Rectangle |
Length | 2000 mm |
Width | 1200 mm |
Height | 13 mm Manufacturer guidanceNominal Thickness |
Uniclass | |
CAWS | K40/287 Cavity barriers P10/410 Flexible cavity barriers |
SKU Code | FLX - FL10P |
Product range |
Specification data - Composite plastics sound-insulating sheets
Classification data | |
Composition | Polymeric barrier central membrane, 10 kg/m². Outer layers: open cell acoustic foam insulation layer. |
Performance characteristics | |
Fire performance | Class C-s2,d0. |
Sound insulation rating | 27 dB (Rw). |
Physical properties | |
Weight (minimum) | 11 kg/m². |
Dimensions | |
Thickness (minimum) | 13 mm. |
Width (minimum) | 1200 mm. |
Sustainability data
Material | Polyurethane Polymeric Foam |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
Literature
Literature type

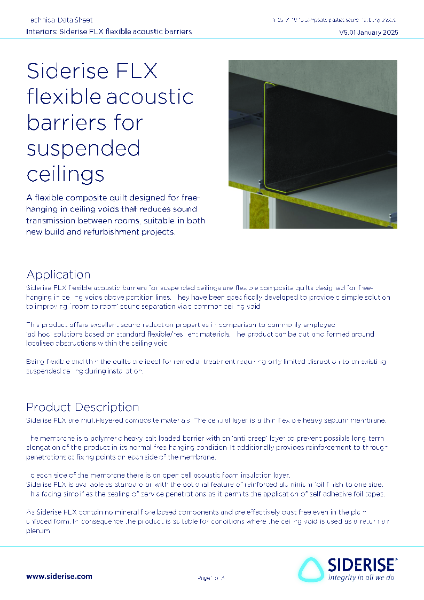

Siderise FLX black flexible acoustic barrier for suspended ceilings v5.01
Siderise acoustic insulation solutions for interiors
