Side Air Diffuser - Diffuser Vent Grille

Verified by manufacturer 2 months ago

SIDE 100 mm connection

Ventmann UK Ltd Variant:

Gypsum air diffuser.

Jump to:
+44 (0)1283 240025 Website

Application

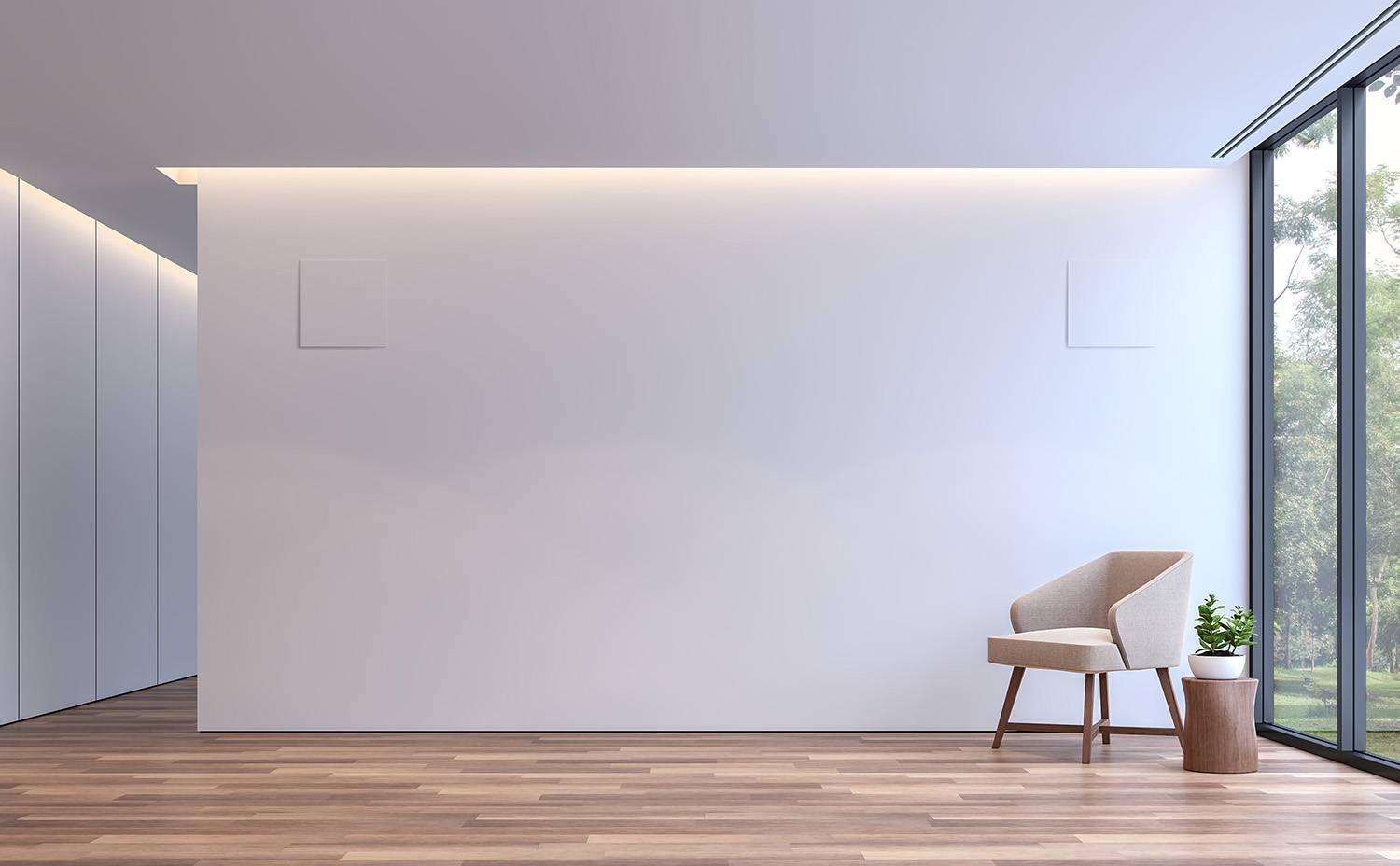

Due to its unique design, the Side diffuser distributes air horizontally when installed in the ceiling or vertically when installed on a wall, allowing it to provide comfortable airflow to occupants even when mounted above seating or desks.

Description

An innovative, modern and elegant air diffuser ideal for ceiling or wall applications. Manufactured using a unique gypsum composite, these seamless air diffusers are designed to complement any room or space.


Like all Ventmann air diffusers, the diffuser creates a durable bond with the surrounding plasterboard wall or the ceiling and can be painted and finished exactly the same as the surrounding surface. Simply insert into place, fill in the gap, and finish the wall or ceiling as normal.


Features and benefits:

  • Frameless.
  • Plastered in.
  • Paintable.

General information

Color

White

Beige

Cream

Other

Finish

Fine

Matt

Mineral

Natural

Other

Show more

Material

Gypsum

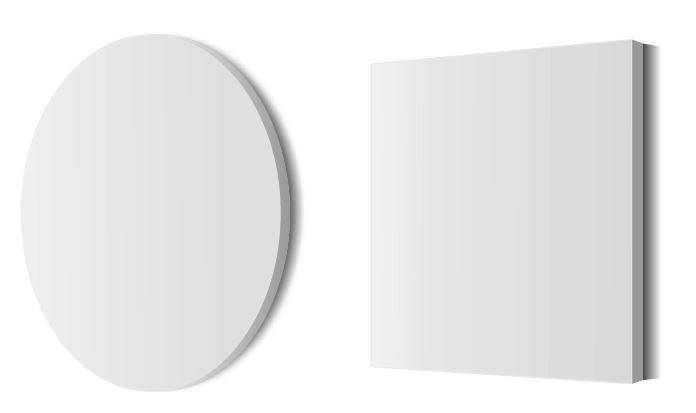

Shape

Circle

Square

Length

299 mm

334 mm

424 mm

Width

299 mm

334 mm

424 mm

Height

28 mm

Guidance for specification option:

Side diffuser cover plate sits 28 mm proud of surrounding finish. Remainder of product is flush with surrounding surface.

Warranty description

One year

Uniclass

Pr_70_65_04_02 Air diffusersPrimary

CAWS

U90/360 Air transfer grilles

U90/360 Air transfer grilles

Specification data - Air diffusers

Application

Extract.

Supply.

Duty

-

Air volume

Inaudible air volume: 53 L/s.

Size

299 x 73 mm.

Sound power level

At level of inaudible flow: 17 dB.

Shape

Circular.

Square.

Arrangement

Non-adjustable.

Adjustable flow rate using optional volume control damper.

Position

Ceiling.

Wall.

Material

Gypsum.

Finish

Paintable surface to match surrounding plasterboard finish.

Guidance for specification option:

Product is white, but finished to match ceiling, i.e. skimmed, sanded and painted. Insert requirements.

Accessories

Volume control damper.

Sustainability data

Contains Red List materials

No

Country of material origin

Lithuania

Country of product manufacture

Lithuania

Recyclability

-

Manufacturer guidance

Product can be recycled in the same way as other gypsum plaster products once metal and plastic components have been separated.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
