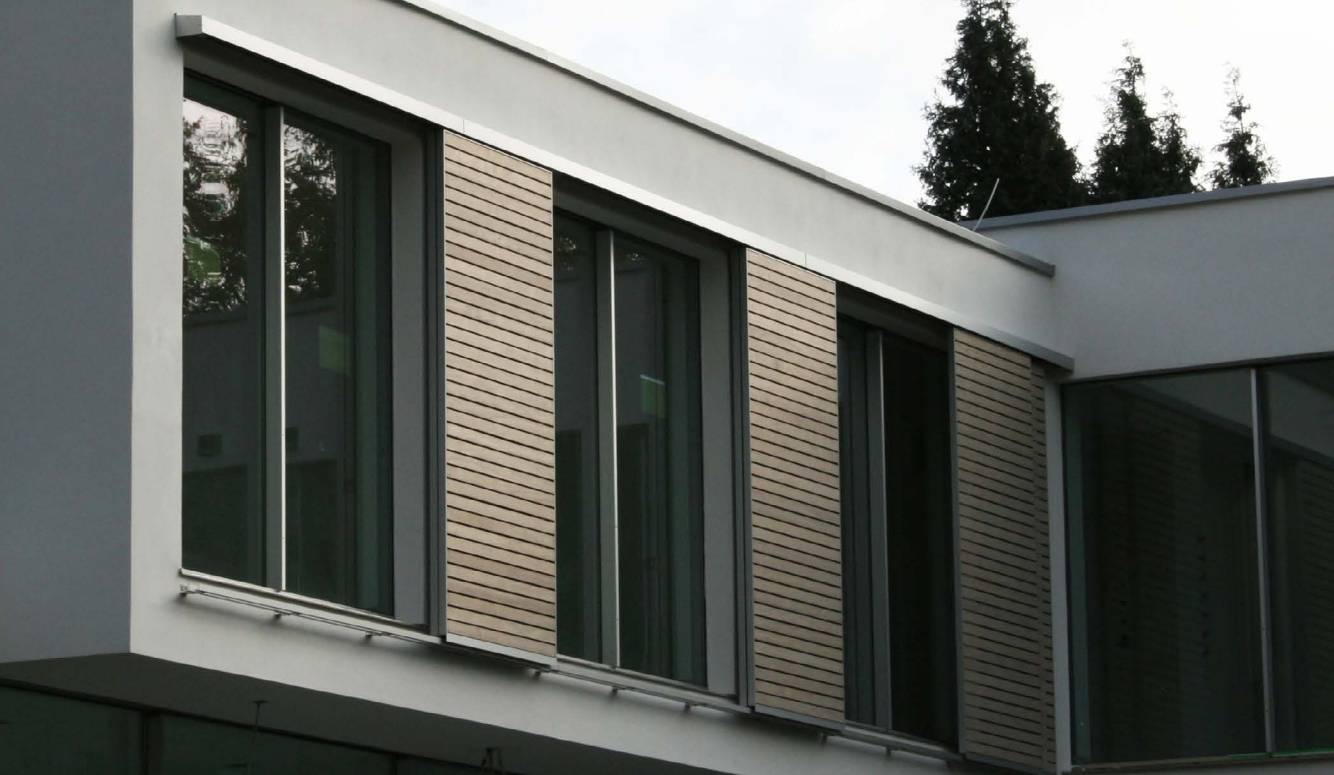

Straight sliding hardware for the movement of manual and automatic louvre panels.
Straight sliding hardware for the movement of manual and automatic louvre panels.
Features and benefits:
Kit components:
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Length | 2000 mm 3000 mm Manufacturer guidanceTrack length. |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/59 Solar shading systems L10/680 Solar shading systems L10/54 Louvres L10/650 Metal louvres |
Classification data | |
Material | 316 marine grade stainless steel, hard-wearing polymers and anodized aluminium. |
Size | 2000 mm track (SHUTTER/20). 3000 mm track (SHUTTER/30). |
Finish | Anodized. |
Colour | Manufacturer's standard. |
Texture | Manufacturer's standard. |
Fasteners | Manufacturer's standard. |
Louvre | Material: wood or metal. Minimum panel width: 400 mm. Maximum panel height: 4000 mm. Panel thickness: 35–50 mm. Maximum panel weight: 120 kg. Manufacturer guidanceSupplied by others. |
Accessories | None. Automation kit for single shutters. Guidance for specification option: For shutters weighing up to 80 kg. Consult manufacturer's literature for details. Wall profile, fascia and end caps. Guidance for specification option: Insert required length(s): Available in lengths of 2000, 3000, 4000, 5000 and 6000 mm. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Expected Life | Ten year |
